Aten 4 Port Usb Vga Kvm Switch. Support Audio 1.8m Cable - [ Old Sku: Cs-64u ] Cs64uz-at

$133.00
SKU: 267779
MPN: CS64UZ-AT Link
Manufacturer: https://www.aten.com/
Brand: Aten
Warranty: 1 Year Manufacturer's return to base
Availability:

Preorder 2-3 weeks
Fright Estimate
Add to Compare

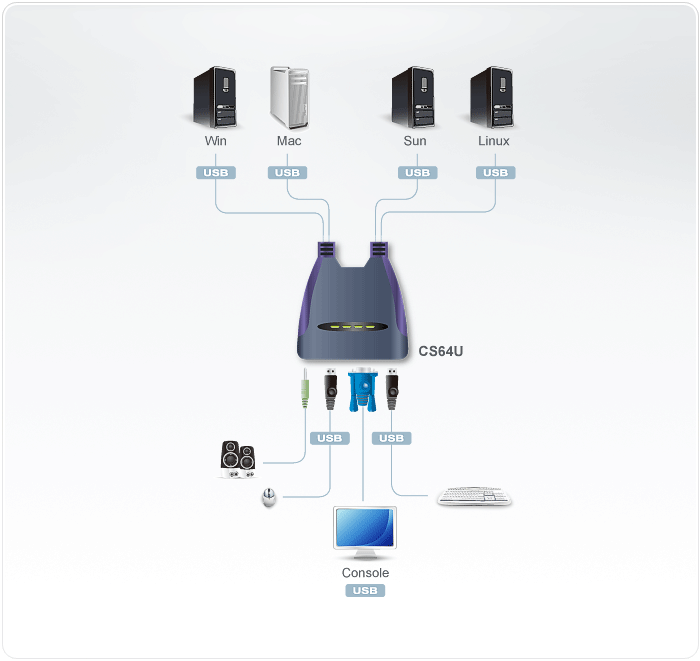

CS64U 4-Port USB KVM Switch has a handy design integrating with 6 feet of cables and built-in USB. It can control 4 servers via a single console.

  • One USB console controls four USB computers

  • Compact design, built-in 1.8 m cables

  • Hotkey selection for OS and keyboard language

  • Computer Selection via hotkey

  • Multiplatform support - Windows, Linux, Mac, Sun

  • Video DynaSync™ - exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports

  • USB mouse port can be used for USB 1.1 hub and USB 1.1 peripheral sharing

  • Supports multifunction and wireless keyboards and mice

  • All-in-one design

  • With speaker support

  • Superior video quality – up to 2048 x 1536; DDC2B

  • Auto Scan function to monitor computer operation

  • Non-powered

  • Sun/Mac keyboard support and emulation*

  • Firmware upgradable

    * 1. PC keyboard combinations emulate Sun/Mac keyboards
       2. Sun/Mac keyboards only work with their own computers

Package Contents

  • 1x 4-Port USB KVM Switch with Attached Cables

  • 1x User Instructions

Cable Length
Computer 1.8m
Computer Connections
　 4
Connectors
Console Ports 2 x USB Type A Female (White) 1 x HDB-15 Female(Blue) 1 x Mini Stereo Jack Female (Green)
KVM Ports 4 x USB Type A Male(Black) 4 x HDB-15 Male(Blue) 4 x Mini Stereo Plug Male (Green)
Emulation
Keyboard / Mouse USB
Environmental
Humidity 0 – 80% RH, Non-condensing
Operating Temperature 0 – 50°C
Storage Temperature -20 – 60°C
LEDs
Selected 4 (Green)
Physical Properties
Dimensions (L x W x H) 9.41 x 9.72 x 2.60 cm (3.7 x 3.83 x 1.02 in.)
Housing Plastic
Weight 0.73 kg ( 1.61 lb )
Port Selection
　 Hotkey
Scan Interval
　 1-99 seconds
Video
　 2048 x 1536, DDC2B
Warranty
　 2 Years

CS64U 4-Port USB KVM Switch has a handy design integrating with 6 feet of cables and built-in USB. It can control 4 servers via a single console.

  • One USB console controls four USB computers

  • Compact design, built-in 1.8 m cables

  • Hotkey selection for OS and keyboard language

  • Computer Selection via hotkey

  • Multiplatform support - Windows, Linux, Mac, Sun

  • Video DynaSync™ - exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports

  • USB mouse port can be used for USB 1.1 hub and USB 1.1 peripheral sharing

  • Supports multifunction and wireless keyboards and mice

  • All-in-one design

  • With speaker support

  • Superior video quality – up to 2048 x 1536; DDC2B

  • Auto Scan function to monitor computer operation

  • Non-powered

  • Sun/Mac keyboard support and emulation*

  • Firmware upgradable

    * 1. PC keyboard combinations emulate Sun/Mac keyboards
       2. Sun/Mac keyboards only work with their own computers

Package Contents

  • 1x 4-Port USB KVM Switch with Attached Cables

  • 1x User Instructions
