Functions
Functions
Print, copy, scan, fax
Multitasking supported
Yes
Printing specifications
Print speed black:
Normal: Up to 40 ppm 5
Print speed color:
Normal:Up to 40 ppm 5
First page out (ready)
Black: As fast as 6.5 sec
Color: As fast as 7 sec 6
Duty cycle (monthly, A4)
Up to 50,000 pages 7
Recommended monthly page volume
750 to 4500 8
Print technology
HP PageWide Technology with pigmented inks
Print quality black (best)
Up to 1200 x 1200 optimized dpi from 600 x 600 input dpi (on Unspecified, Plain, HP Premium Presentation Matte, and HP Brochure Matte)
Print quality color (best)
Up to 2400 x 1200 optimized dpi from 600 x 600 input dpi (on HP Advanced Photo Papers)
Print languages
HP PCLXL (PCL6), native PDF, HP Postscript Level 3 emulation
Display
4.3" CGD (color graphics), IR touchscreen
Automatic paper sensor
Yes
Replacement cartridges
HP 975A Black Original PageWide Cartridge (~3500 pages)
HP 975A Cyan Original PageWide Cartridge
HP 975A Magenta Original PageWide Cartridge
HP 975A Yellow Original PageWide Cartridge (CMY composite ~3000 pages)
HP 975X High Yield Black Original PageWide Cartridge (~10,000 pages)
HP 975X High Yield Cyan Original PageWide Cartridge
HP 975X High Yield Magenta Original PageWide Cartridge
HP 975X High Yield Yellow Original PageWide Cartridge (CMY composite ~7000 pages)
Connectivity
HP ePrint capability
Yes
Mobile printing capability
HP ePrint, HP Mobile Apps, Google Cloud Print v2, Apple AirPrint™, Mopria-certified, Android Plug-in, Windows 8/10, Windows 10 Mobile, Chromebook
Wireless capability
Yes
Connectivity, standard
2 Hi-Speed USB 2.0 Host
1 Hi-Speed USB 2.0 Device
1 Ethernet 10/100 Base-TX network
2 RJ-11 modem port/phone line
802.11 b/g/n Station
802.11 b/g Access Point
Network ready
Standard (built-in Ethernet and WiFi 802.11b/g/n)
Connectivity, optional
Support the following external Jetdirect servers
Print only: HP Jetdirect en1700 External Print Server (J7988G), HP Jetdirect en3700 Fast-Ethernet External Print Server for Network Capable Hi-Speed USB 2.0 & 3.0 Peripherals (J7942G), HP Jetdirect ew2400 802.11b/g wireless and Fast Ethernet external print server (USB 2.0, 10/100Base-TX, 802.11b/g) (J7951G), HP Jetdirect ew2500 802.11b/g Wireless Print Server (J8021A)
Other supported accessories: Apple AirPort Express, Apple AirPort Extreme, Apple Airport TimeCapsule
WiFi Direct
Minimum system requirements
Windows® 10, 8.1, 8, 7: 32-bit or 64-bit, 2 GB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer. Windows Vista®: (32-bit only), 2 GB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer 8. Windows® XP SP3 or higher (32-bit only): any Intel® Pentium® II, Celeron® or 233 MHz compatible processor, 850 MB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer 8

Apple® OS X Yosemite, OS X Mavericks, OS X Mountain Lion
1 GB HD
Internet required
USB
Compatible operating systems
Windows 10, Windows 8, Windows 7, Mac OS X v10.6, Mac OS X Lion, Mac OS X Mountain Lion, Linux (hplip.net)
Memory specifications
Memory card compatibility
None
Memory, standard
768 MB
Maximum memory
768 MB
Paper handling
Paper handling input, standard
500-sheet input tray, 50-sheet multi-purpose tray
Paper handling input, optional
Optional 500 sheet tray
Paper handling output, standard
300-sheet face-down output bin
Maximum output capacity (sheets)
Up to 300 sheets
Duplex printing
Automatic (standard)
Media sizes supported
Tray 1: Oficio
A4
A5
A6
B5 (JIS)
B6 (JIS)
16K
10 x 15 cm
L
Hagaki
envelopes (B5
C5
C6
DL
Chou #3
Chou #4)
Tray 2: A4
A5
B5 (JIS)
16K
envelopes (DL
B5
C5
Chou #3)
Tray 3: A4
A5
B5 (JIS)
16K
Media sizes, custom
Tray 1: 76 x 127 to 216 x 356 mm
Tray 2: 102 x 210 to 216 x 297 mm
Optional 500-sheet tray 3: 102 x 210 to 216 x 356 mm
Media types
Plain paper (light, intermediate, mid-weight, heavy, extra heavy, prepunched, recycled, bond, other inkjet plain paper), photo (glossy, gloss, soft gloss, satin, matte, other inkjet photo), envelopes, labels, cards, specialty papers (glossy brochure, matte brochure, tri-fold brochure, Hagaki, greeting cards, other inkjet specialty paper)
Media weight, supported
Tray 1: 60 to 120 g/m² (plain paper)
125 to 300 g/m² (photo)
75 to 90 g/m² (envelope)
120 to 180 g/m² (brochure)
163 to 200 g/m² (card)
Tray 2: 60 to 120 g/m² (plain paper)
125 to 250 g/m² (photo)
75 to 90 g/m² (envelope)
120 to 180 g/m² (brochure)
163 to 200 g/m² (card)
Tray 3: 60 to 120 g/m² (plain paper)
125 to 250 g/m² (photo)
120 to 180 g/m² (brochure)
163 to 200 g/m² (card)
Scanner specifications
Scanner type
Flatbed, ADF
Scan file format
Scan File Type supported by Software: Bitmap (.bmp), JPEG (.jpg), PDF (.pdf), PNG (.png), Rich Text (.rtf), Searchable PDF (.pdf), Text (.txt), TIFF (.tif)
Scan resolution, optical
Up to 1200 dpi
Scan size (flatbed), maximum
216 x 356 mm
Scan size (ADF), maximum
216 x 356 mm
Scan speed (normal, A4)
Up to 25 ipm (mono & color)
Automatic document feeder capacity
Standard, 50 sheets
Digital sending standard features
Scan-to E-mail with LDAP email address lookup
Scan-to Network Folder
Scan-to USB
Scan-to Sharepoint
Scan-to Computer with SW
Fax Archive-to Network Folder
Fax Archive to E-mail
Fax-to Computer
Enable/Disable Fax
Enable/Disable color Fax, Color Access Control
Native Authorization & authentication
Scan input modes
Front panel applications: Copy, Scan to E-mail with LDAP e-mail address lookup, Scan to Network Folder, Scan to USB, Scan to Sharepoint, Scan to Computer with SW. Client applications: EWS, HP Scan App, Compatible with HP Capture and Route
Copier specifications
Copy resolution (black text)
Up to 600 dpi
Copy resolution (color text and graphics)
Up to 600 dpi
Copy reduce / enlarge settings
25 to 400%
Copies, maximum
Up to 99 copies
Fax specifications
Faxing
Yes, color
Fax transmission speed
33.6 kbps
Fax memory
Up to 100 pages (black and white)
Up to 8 pages (color)
Fax resolution
300 x 300 dpi
Speed dials, maximum number
Up to 199 numbers
Broadcast locations
20
Power and operating requirements
Power
Input voltage: 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz)
Power consumption
100 watts (Maximum), 70 watts average (Printing), 10 watts (Ready), 4.8 watts (Sleep), 1.0 watt (Auto-Off), 0.2 watts (Manual-Off) 2
Dimensions and weight
Minimum dimensions (W x D x H)
530 x 407 x 467 mm
Maximum dimensions (W x D x H)
802 x 694 x 467 mm
Weight
22.15 kg 1
Package weight
26.39 Kg
What's included
What's in the box

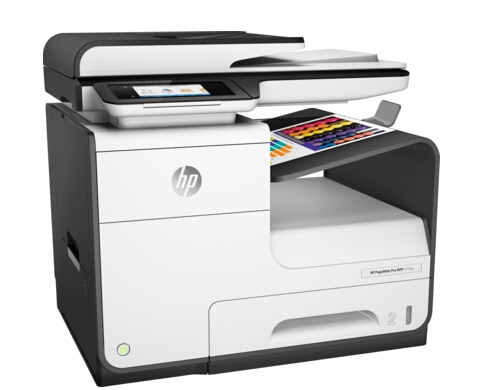

HP PageWide Pro 477dw Multifunction Printer
HP 975 Setup Black PageWide Cartridge (~3000 pages)
HP 975 Setup Cyan PageWide Cartridge
HP 975 Setup Magenta PageWide Cartridge
HP 975 Setup Yellow PageWide Cartridge (CMY composite ~1500 pages)
power cord
ethernet cable
phone cord
installation guide
CD-ROMs (for software, Windows and Mac printer drivers, and User's Guide)
USB cable.
Cable included
Yes, 1 USB cable
1 Phone cord
1 Ethernet cable
Software included
Windows Installer and discrete PCL 6 driver
Mac Installer and PS driver
HP Participation Study
IRIS OCR
Warranty
1 Year Limited Warranty (Return to HP/Dealer - Unit Exchange)
