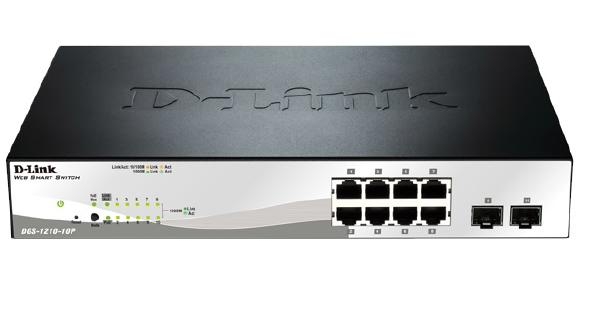

DGS-1210-10P Web Smart 8-Port Gigabit PoE Switch with 2 1000BASE-T/SFP Combo Ports
Description
The DGS-1210-10P Web Smart switch with advanced management functions including SNMP, Web Management, SmartConsole Utility, Power over Ethernet, and compact command lines provides a complete and affordable solution for small and medium businesses.
The D-Link DGS-1210-10P is the latest Web Smart switch to feature D-Link Green technology. Equipped with 8 10/100/1000Mbps PoE ports and two combo 10/100/1000BASE-T/SFP ports, the DGS-1210-10P integrates advanced management and security functions that provide performance and scalability. Management options for the DGS-1210-10P include SNMP, Web Management, SmartConsole Utility, and Compact Command Lines. The series also supports ACL filtering and the D-Link Safeguard Engine. The DGS-1210-10P uses Auto Voice VLAN, ensuring higher priority for voice traffic. The DGS-1210-10P comes with a fanless design in a compact 13-inch desktop enclosure, which allows for quieter operation and guarantees an extended lifetime.
D-Link Green

D-Link is continuously striving to take the lead in developing innovative technology that allows for power saving without sacrificing operational performance or functionality. The DGS-1210-10P automatically detects the length of connected cables and can adjust power usage by saving energy on shorter cable connections of up to 20 meters. Power saving by link status helps to further save energy by automatically switching ports without a link to sleep mode and thus drastically reducing power consumption. The DGS-1210-10P takes the approach to green IT and power saving one step further by incorporating a special chipset with advanced silicon technology.


Seamless Integration

The DGS-1210-10P comes with Ethernet and Gigabit copper ports capable of connecting to existing Cat.5 twisted-pair cables. Additionally, the last two ports of the DGS-1210-10P combine SFP and copper connectivity into one port and therefore provide a more flexible solution for upstream or downstream server connections via fiber interface. Using the default presets, the administrator can quickly set up without worrying about reconfiguring any settings and providing easy access for the user.


Extensive Layer 2 Features

Equipped with a complete lineup of L2 features, these switches include IGMP Snooping, Port Mirroring, Spanning Tree and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer. At 2000Mbps Full Duplex, the Gigabit ports provide high-speed data pipes to servers with minimum data transfer loss. Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. Cable Diagnostics is designed for network administrators to quickly examine the quality of the copper cables and determine the type of cable error.


QoS, Bandwidth Control

The switch is perfect for deployment in a VoIP environment, as they support Auto Voice VLAN and Differentiated Services Code Point (DSCP) QoS for VoIP application. Auto Voice VLAN will automatically place voice traffic from an IP phone to an assigned VLAN and by doing so enhance the VoIP service. With a higher priority and individual VLAN, this feature guarantees the quality and security of VoIP traffic. DSCP marks parts of an IP packet, enabling different levels of service to be assigned for network traffic. With Bandwidth Control, the network administrator can reserve bandwidth for important functions that require a larger bandwidth or might have higher priority.

Secure your Network

The innovative D-Link Safeguard Engine function protects the switch against traffic flooding caused by virus attacks. The switch can also support 802.1X port-based authentication, allowing the network to be authenticated through external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and helps to protect the internal IT network. The DGS-1210-10P includes ARP Spoofing Prevention, which protects from attacks on the Ethernet network that may allow an intruder to sniff data frames on a LAN, modify traffic, or bring traffic to a halt altogether by sending fake ARP messages to the network. To prevent ARP Spoofing attacks, the switch uses Packet Control ACLs to block invalid packets that contain fake ARP messages. For added security, the DHCP Server Screening feature screens rogue DHCP server packets from user ports to prevent unauthorized IP assignment.

Versatile Management

The DGS-1210-10P provides a SmartConsole Utility and a web-based management interface that enable administrators to remotely control their network down to the port level. The SmartConsole easily allows customers to discover multiple D-Link Web Smart Switches within the same L2 network segment. With this utility, users do not need to change the IP address of their PC and it also provides an easy initial setting of the Smart Switches within the same L2 network segment that are connected to the users PC are displayed on screen for instant access. This allows extensive switch configuration settings and basic configuration of discovered devices such as password changes and firmware upgrades. The DGS-1210-10P also supports D-View 6.0 and Compact Command Line Interface (CLI) through Telnet. D-View 6.0 is a Network Management System that allows for the central management of critical network characteristics such as availability, reliability, resilience, and security in a consistent way. CLI management through Telnet makes the adjustment of basic settings such as password changes or firmware and configuration file uploads possible.
Features
Web Smart 8-Port Gigabit PoE Switch with 2 1000BASE-T/SFP Combo Ports
Fanless Design: Provides Continuous, Reliable, Silent and Eco-Friendly Operation
Green Technology: Power saving by cable length detection or link status, PoE Scheduling
Security Features: Access Control List, D-Link Safeguard Engine and Port Security
Intuitive Management: SmartConsole or Web-Based GUI, Built-in MIB Browser for SNMP, D-View 6.0 Module Support and Compact CLI through Telnet
Supports Auto Voice VLAN and DSCP QoS for VoIP Application
Technical Specifications
Number of Ports
8 PoE 10/100/1000 Mbps
2 combo 10/100/1000BASE-T/SFP
Network Cables
UTP Cat.5, Cat.5e (100m max)
EIA/TIA-568 100-ohm STP (100m max)
Full/Half Duplex
Full/half duplex for 10/100Mbps speeds
Full duplex for Gigabit speed
Media Interface Exchange
Auto MDI/MDI-X adjustment for all twisted pair ports
Port Standards & Functions
IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
IEEE 802.3z Gigabit Ethernet (fiber) ANSI/IEEE 802.3
Auto-negotiation
IEEE 802.3x Flow Control
Performance
Switching Capacity
20Gbps
Maximum 64 bytes packet forwarding rate
14.88Mpps
RAM Buffer
512KB per device
Transmission Method
Store-and-forward
MAC Address Table
8K entries per device
MAC Address Update
Up to 256 static MAC entries
Enable/disable auto-learning of MAC addresses
Physical and Environmental
Maximum Power Consumption
109.6 W (PoE on) 14.45 W (PoE off)
Standby Power Consumption
7W/110 V, 7.8W/240V
Fan Quantity
0
Acoustics
0dBA
Heat Dissipation
373.96 BTU/hr
Dimensions
13in x 7.1in x 1.7in (330mm x 180mm x 44mm)
13-inch desktop enclosure, 1U height
Weight
4.1lbs (1.84kg)
MTBF
205,249 hours
AC Input
100 to 240 VAC 50/60 internal universal power supply
Temperature
Operating: 32 to 104F (0 to 40C)
Storage: 14 to 158 F (-10 to 70 C)
Humidity
Operating: 10% to 95% Non-condensing
Storage: 5% to 95% Non-condensing
Emission (EMI)
FCC Class A, CE Class A, IC Class A, VCCI Class A, C-Tick
Diagnostic LEDs
Power (per device)
Fan Error (per device, optional)
Link/Activity/Speed (per 10/100/1000Mbps port, per SFP port)
Safety
cUL, LVD
PoE
PoE Standard
802.3af
Pre-standard 802.3at
PoE Capable Ports
Port 1 to 8: 15.4w or 30w
Max. 30w on 2 10/100/1000Mbps ports
Max. 15.4w on 4 10/100/1000Mbps ports
Max. 7.5w on 8 10/100/1000Mbps ports
Software Features
L2 Features
MAC Address Table
8K
Flow Control
802.3x Flow Control
HOL Blocking Prevention
Spanning Tree Protocol
802.1D STP
802.1w RSTP
IGMP Snooping
IGMP v1/v2 Snooping
Supports at least 64 static multicast addresses
Supports IGMP Snooping Querier
Supports 256 IGMP groups
IGMP per VLAN
Loopback Detection
Auto disable port when loop is detected
802.3ad Link Aggregetion
8 groups per device/8 ports per group
Port Mirroring
One-to-One, Many-to-One, Supports Mirroring for Tx/Rx/Both
Cable Diagnostics
Yes
Configurable Auto MDI/MDI-X
Yes
VLAN
802.1Q
2003 Edition
VLAN Group
Max 256 static VLAN groups, max 4094 VID
Management VLAN
Supports 1 Management VLAN
Asymmetric VLAN
Yes
Auto Voice VLAN
Max. 10 user defined OUI, Max. 8 default OUI
QoS (Quality of Service)
802.1p Quality of Service
4 Queues per port
Queue Handling
Strict, Weighted Round Robin (WRR)
CoS based on
802.1p Priority Queues, DSCP
Bandwidth Control
Port-based (Ingress/Egress, min. granularity 64 Kb/s)
Access Control List
Maximum profiles
50
Maximum rules shared by profiles
240
ACL based on
MAC Address, IPv4 Address (ICMP/IGMP/TCP/UDP), VLAN ID, 802.1p Priority, DSCP
ACL Actions
Permit, Deny
Security
802.1X Port-based Access Control
Default 802.1X forwarding
Port Security
Supports up to 64 MAC addresses per port
Traffic Control
Broadcast/Multicast/Unicast Storm Control
Static MAC
Supports 256 Static MAC entries
D-Link Safeguard Engine
Yes
MIB
MIB
1213 MIB II, 1493 Bridge MIB, 1907 SNMP v2 MIB, 1215 Trap Convention MIB, 2233 Interface Group MIB, D-Link Private MIB
RFC
RFC
RFC 768 UDP, RFC 791 IP, RFC 792 ICMP, RFC 793 TCP, RFC 826 ARP, RFC 854 Telnet Server, RFC 855 Telnet Server, RFC 856 Telnet Binary Transmission, RFC 858 Telnet Server, RFC 896 Congestion Control in TCP/IP Network, RFC 903 Reverse Address Resolution Protocol, RFC 951 BootP Client, RFC 1155 MIB, RFC 1157 SNMP v1, RFC 1191 Path MTU Discovery, RFC 1212 Concise MIB Definition, RFC 1213 MIB II, IF MIB, RFC 1215 Traps for use with the SNMP, RFC 1239 Standard MIB, RFC 1350 TFTP, RFC 1493 Bridge MIB, RFC 1519 CIDR, RFC 1945 HTTP/1.0, RFC 2131 DHCP, RFC 2132 DHCP Options and BOOTP Vendor Extensions, RFC 2138 Radius Authentication, RFC 2233 Interface MIB, RFC 2578 Structure of Management Information Version 2 (SMIv2), RFC 2647 802.1p, RFC 3416 SNMP, RFC 3417 SNMP, RFC 3621 Power Ethernet
Management
Web-based GUI
Supports IPv4
Compact CLI through Telnet
Yes
Telnet Server
Maximum connection is 4, Supports IPv4
TFTP Client
Supports IPv4
SNMP Trap
Yes
Trap for SmartConsole Utility
Yes
System Log
Max. 500 log entries, supports IPv4 log server
BootP/DHCP Client
Yes
Time Setting
SNTP
Warranty Information
Warranty
Limited Lifetime*
Ordering Information
Part Number
Description
DGS-1210-10P
Web Smart 8-Port Gigabit PoE Switch with 2 1000BASE-T/SFP Combo Ports
DGS-1210-16
Web Smart 16-Port Gigabit Switch with 4 Combo SFP Slots
DGS-1210-24
Web Smart 24-Port Gigabit Switch with 4 Combo SFP Slots
DGS-1210-48
Web Smart 48-Port Gigabit Switch with 4 Combo SFP Slots
DEM-211
100BASE-FX Multimode LC Transceiver, up to 2Km
DEM-310GT
1000BASE-LX SFP Module, Up to 10Km
DEM-311GT
1000BASE-SX SFP Module, Up to 550m
