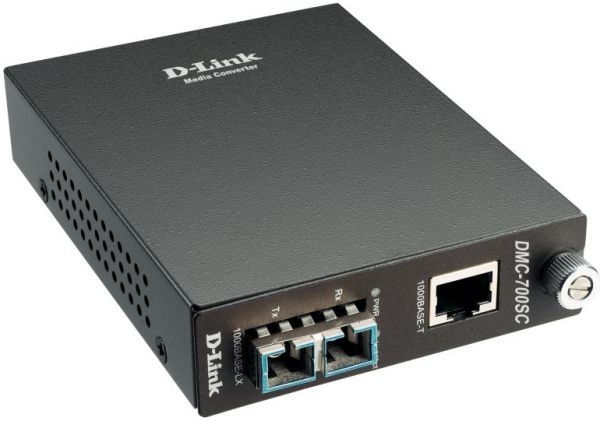

The DMC-700SC by D-Link is a media converter designed to connect 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Based on the IEEE 802.3ab and 802.3z standards, the DMC-700SC is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The DMC-700SC supports shortwave (SX) laser specifications at a full wire-speed forwarding rate. Other features of this module include the ability to be used as a standalone device (no chassis required), Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, and front panel status LEDs. The DMC-700SC will transmit at extended fiber optic distances utilizing multimode fiber up to 550 meters.

One-Channel Media Conversion between 1000Base-T and 1000Base-SX
Multi-Mode Fiber Using SC Connector
Auto Negotiation of Duplex Mode on TX Port
Auto MDI/MDI-X for TX Port
Full Wire-Speed forwarding Rate

LED Indicators
Power (PWR)
LINK/ACT

Dimensions
120 x 88 x 25 mm

Power Input
7.5V 1.5A
Through external AC power adapter

Operating Temperature
0° - 40° C

Storage Temperature
-25° - 70° C

Humidity
10 ~ 90% non-condensing

Emission (EMI)
FCC Class B
VCCI Class B
CE Class B
C-Tick
