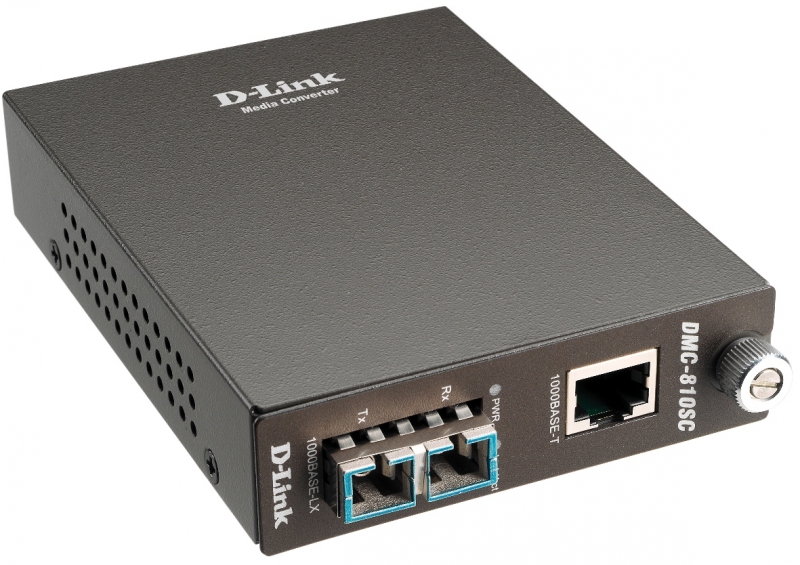

D-link 1000base T To 1000baselx Single Mode Media Converter Dmc-810sc
| SKU: | 224884 |
|---|---|
| MPN: | DMC-810SC Link |
| Manufacturer: | http://www.dlink.com/uk/en |
| Brand: | D-link |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
Preorder 2-3 weeks |
| Fright Estimate |
Description
Description
This Media Converter can be used by itself or installed in a chassis and converts between 1000BASE-T Gigabit twisted-pair signals to 1000BASE-LX Gigabit single-mode fiber signals.
The DMC-810SC converts 1000BASE-T Gigabit twisted-pair signals to 1000BASE-LX Gigabit single-mode fiber signals. Maximum fiber cable distance is 10 km. 1 RJ-45 port and 1 fiber port (SC type connector) are provided.
The DMC-700SC can be used as stand-alone device or as a module installed in the DMC-1000 chassis. The media converter is housed in a solid metal case and comes with status LEDs and an external AC power adapter. If you install it in the DMC-1000 chassis, remove its metal case and slide its PC board into an open slot in chassis. In this application, the chassis provides power for all media converters inside it, and the media converter’s own external AC power adapter will not be necessary.
Specifications
LED Indicators
- Power (PWR)
- LINK/ACT
Dimensions
- 120 x 88 x 25 mm
Power Input
- 7.5V 1.5A
- Through external AC power adapter
Operating Temperature
- 0° - 40° C
Storage Temperature
- -25° - 70° C
Humidity
- 10 ~ 90% non-condensing
Emission (EMI)
- FCC Class B
- VCCI Class B
- CE Class B
- C-Tick
Vendor Info
D-Link DMC-810SC
This converter converts 1000BASE-T Gigabit twisted-pair signals to 1000BASE-LX Gigabit single-mode fiber signals. Maximum fiber cable distance is 10km. 1 RJ-45 port and 1 fiber port (SC type connector) are provided.
Features:
- One-channel media conversion between 1000BASE-T and 1000BASE-LX
- Auto negotiation of duplex mode on twisted-pair port
- Auto MDI/MDIX for twisted-pair port
- Full wire-speed forwarding rate
- Front panel status LEDs
- Link Pass Through function
- Can be used as a stand-alone device or with chassis (DMC-1000)
- Hot-swappable when used with chassis (DMC-1000)
