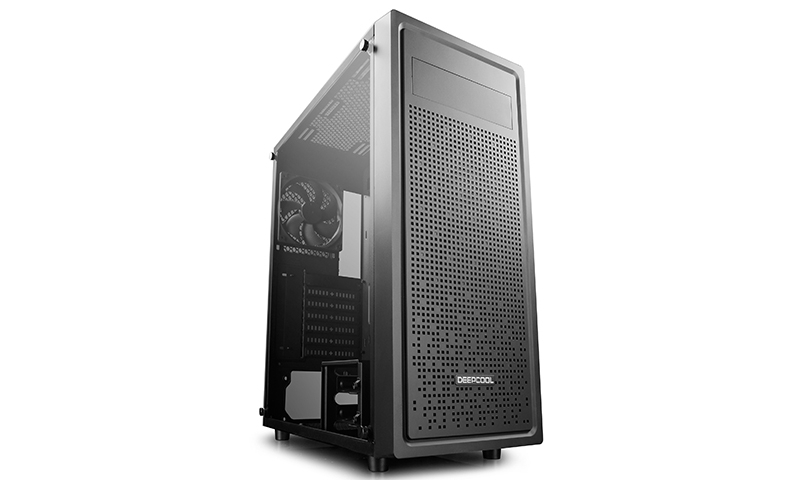

Black E-Shield Mid Tower Chassis Dp-Atx-E-Shield
$62.00
| SKU: | 276839 |
|---|---|
| MPN: | DP-ATX-E-SHIELD Link |
| Manufacturer: | http://www.deepcool.com |
| Brand: | Deepcool |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
In stock |
| Fright Estimate |
Description
▼
Specifications
▼
| Motherboards | E-ATX(Without CD-ROM) /ATX/Micro ATX/Mini-ITX |
| Materials |
ABS+SPCC(Panel thickness: 0.6mm)+Tempered Glass (4mm) |
| Case Type | Middle Tower |
| Product Dimension(LxWxH) |
438×210×477mm |
| Gross Weight | 7.34 kg |
| Net Weight |
6.36 Kg |
| 5.25" Drive Bays | 1 |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 2+2 |
| I/O Panel | 1×USB3.0/2×USB2.0/1xAudio(HD)/1xMic |
| Expansion Slots | 7 |
| Cable Management | 25mm clearance |
| Cooling Fans |
Pre-installed: Rear: 1×120mm fan; Optional: Front: (Without CD-ROM installed) 3×120mm or 3×140mm; (With CD-ROM installed) 2×120mm or 2×140mm, Top: 2×120/140mm |
| Liquid Cooler Support |
Front: 120/140/240/280/360mm(280/360mm without CD-ROM); Top: 120/140/240mm; Rear: 120mm |
| Power Supply Type |
ATX PS2 (Length less than 170mm) |
| CPU Cooler Height Limit | 168mm |
| VGA Length Limit |
370mm |
| Carton Dimension (LxWxH) | 523×277×514mm |
| EAN | 6933412713647 |
| P/N | P/N:DP-ATX-E-SHIELD |
Product Dimension
Vendor Info
▼

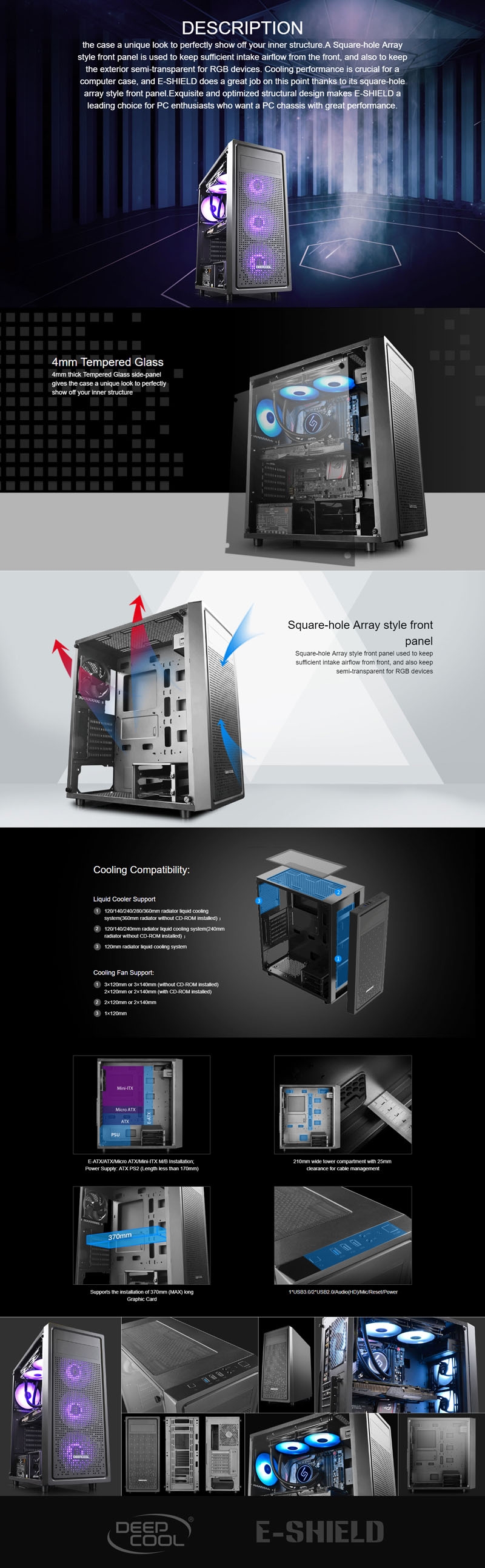

Manufacturer: DeepCool. The Deepcool E-SHIELD comes with 4mm thick Tempered Glass side-panel, which gives the case a unique look to perfectly show off your inner structure. A Square-hole Array style front panel is used to keep sufficient intake airflow from the front, and also to keep the exterior semi-transparent for RGB devices. Cooling performance is crucial for a computer case, and E-SHIELD does a great job on this point thanks to its square-hole array style front panel. Exquisite and optimized structural design makes E-SHIELD a leading choice for PC enthusiasts who want a PC chassis with great performance.
Chassis Details:
* Case type: Mid tower.
* Case dimensions (LxWxH): 438mm x 210mm x 477mm.
* Material: Steel & plastic.
* 5.25" drive bays: 1.
* 3.5" drive bays: 2.
* 2.5" drive bays: 2+2.
* Compatible motherboard sizes: Extended, Standard & Micro ATX, Mini ITX.
* Rear expansion slots: 7.
Would you like to know more? Check out the full product information page.
Chassis Details:
* Case type: Mid tower.
* Case dimensions (LxWxH): 438mm x 210mm x 477mm.
* Material: Steel & plastic.
* 5.25" drive bays: 1.
* 3.5" drive bays: 2.
* 2.5" drive bays: 2+2.
* Compatible motherboard sizes: Extended, Standard & Micro ATX, Mini ITX.
* Rear expansion slots: 7.
Would you like to know more? Check out the full product information page.
