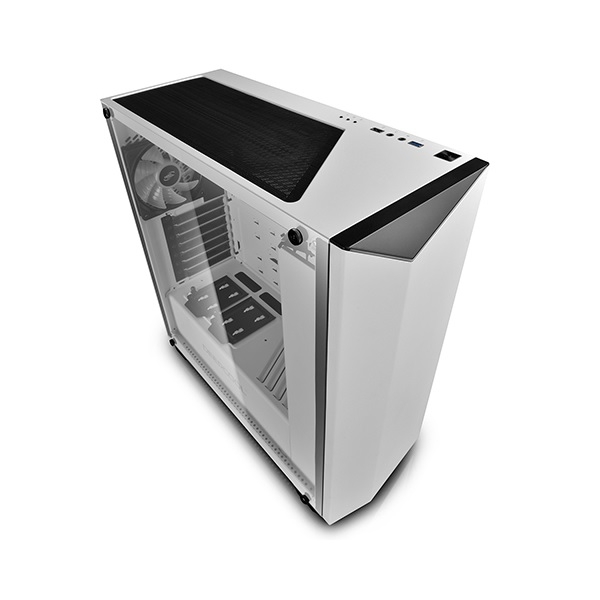

Deepcool Earlkase Rgb Wh Mid Tower Chassis Dp-atx-erlkwh-glsrgb
| SKU: | 264078 |
|---|---|
| MPN: | DP-ATX-ERLKWH-GLSRGB Link |
| Manufacturer: | http://deepcool.com/ |
| Brand: | Deepcool |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
Preorder 2-3 weeks |
| Fright Estimate |
Description
1.0 mm-thick all-metal front panel features a powdered coating finish, offering unique scratch-resistant and anti-staining properties
EARLKASE RGB includes an expandable RGB lighting system with RGB Strip at front, 120mm RGB Fan at rear and 2 extra RGB headers.
*NOTE: The expandable RGB lighting system is designed to accommodate only Deepcool RGB products.
Full-size tempered glass side panel provides total visibility of system interiors
Compatible with AIO liquid cooling systems. Top radiator: max 280 mm. Front radiator: max 240 mm.
DIY liquid cooling system support: Pre-fabricated internal mounting holes for super-easy installation of custom liquid cooling system components.
Top-mounted magnetic dust filter for easy removal and thorough cleaning
Luminous I/O ports facilitating operations in darkness
Movable HDD cage provides additional space for a larger PSU
1 x 120 mm RGB fan at rear and 1 x 120 mm black fan at front pre-installed
1x USB 3.0 and 1x USB 2.0 ports
Control buttons are furnished at the front panel for easily-accessible RGB lighting customization. In addition, software control is also available for motherboards that support RGB SYNC and a 12V RGB 4-pin port.
liquid cooling system components.
easy removal for thorough cleaning
operations in darkness
more space for a larger PSU
brings in more cooling air into the case
Specifications
Technical Spec
| Motherboards | ATX/Micro ATX/Mini-ITX |
| Materials | SPCC+PLASTIC (ABS)(Panel thickness: 0.7mm)+GLASS |
| Product Dimensions (L×W×H) | 500*203.5*510.5MM |
| Net Weight | 8.1 kg |
| Gross Weight | 9.38 kg |
| RGB Lighting System | 1*120mm RGB Fan+ Front Panel RGB Strip + Manual Controller; 2 extra ports for RGB devices expansion; Extra cable ready for MB 4Pin RGB_HEADER Control |
| 5.25" Drive Bays | 0 |
| 3.5"/2.5''Drive Bays | 2 |
| 2.5" Drive Bays | 4 |
| I/O Panel | 1×USB3.0/1×USB2.0/Audio(HD)×1/Mic×1 |
| Expansion Slots | 7 (slot covers fixed by screw for reuse) |
| Cooling Fans | Pre-installed: Rear: 1×120mm RGB fan; Front: 1×120mm black fan Optional: Front: 3×120mm or 2×140mm Top: 2×120mm/2×140mm |
| Power Supply Type | ATX PS2 |
| CPU Cooler Compatibility | 165mm height max;Liquid Cooler Compatibility: 120/240/140/280mm at Top, 120mm at Rear, 120/140/240mm at Front |
| Graphic Card Compatibility | 340mm Max |
| Carton Dimension | 560*266*560mm |
Product Dimension
Vendor Info
Chassis Details:
* Case dimensions (LxWxH): 500mm x 203.5mm x 510.5mm.
* 5.25" drive bays: 0.
* 3.5" and/or 2.5" drive bays: 6.
* Compatible motherboard sizes: Standard & Micro ATX + Mini ITX.
* Included cooling fans: 1x 120mm & 1x 120mm RGB.
* Included USB3 I/O ports: 1.
* Included I/O port location: Top.
