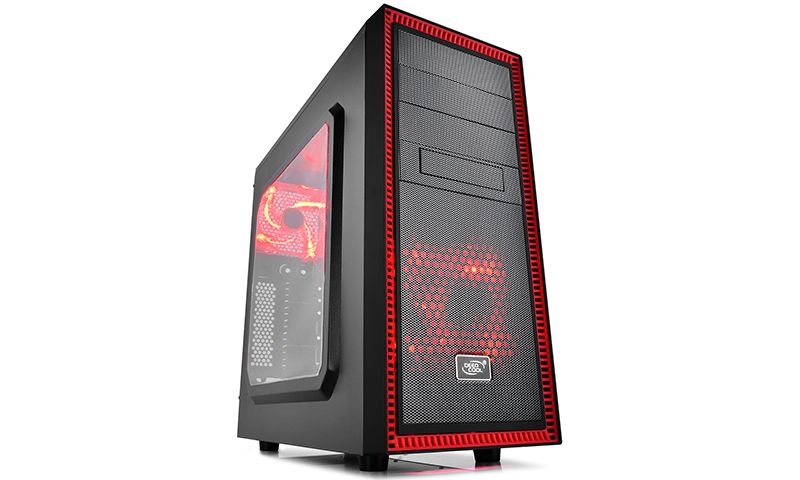

Deepcool Black & Red Tesseract Sw-rd Mid Tower Chassis (usb3) Dp-atx-tsrbkrd
| SKU: | 210911 |
|---|---|
| MPN: | DP-ATX-TSRBKRD Link |
| Manufacturer: | http://www.deepcool.com/ |
| Brand: | Deepcool |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
In stock |
| Fright Estimate |
Description
Bigger Side Window, Better Visual Experience
Design
Description
Tesseract series computer case comes with multiple features. Its great compatibility, simple design and uncompromising cooling performance have made it a popular choice for many DIY enthusiasts and gamers. Up to six fan installation, 310 mm graphic card space and various DIY features, and the latest TESSERACT SW-RD version with the bigger side window and the classic red and black color matching, which offers a fashionable appearance and better visual experience, what else could you possibly ask for?
Great Compatibility for Installation
Innovative Design for DIY Usage
ODD installation tool-free design.
2.5HDD/SDD and 3.5 HDD installation tool-free design
Pre-installed two LED fan on the front and rear.
High VGA card and CPU cooler
installation compatibility.
Ultimate Heat Ventilation Performance
Top Panel Refinement
Dust-filter in the top panel.
USB ports, plugholes and switches
on top panel for easier operation.
Full dust-filter in the interior panel.
Patented air intake channel on the perimeter of the front panel.
High-quality rubber coating.
Pre-installed Red LED fan in the front panel.
Bigger side window makes appearance more fashionable and shining.
Maximum Space Capacity Management
PSU Protective Approaches
Bottom located PSU for better
space management.
Ground-lifted design for better air dynamic and cooling performance of
PSU fan's air intake.
Backplate Cable Installation
Multiple channels for supreme cable management.
Features
Bigger side window makes appearance more fashionable and shining
one USB 3.0 + one USB 2.0 Ports
Fully black painted interior
Pre-installed 2pcs Red LED fans for maximum cooling
Patented air intake channel on the perimeter of the front panel
Fully metal mesh design for the most cooling
Enough room for long VGA card installation
Rail slide HDD design for HDD easy installation
Tool free installation design for ODD/HDD
2 water cooling grommets on the rear
Wide CPU cut out for CPU cooler mounting
Bottom loaded PSU for effective cooling and large inner space
Support cable management
Specifications
| Motherboards | ATX/MICRO ATX/MINI-ITX |
| Materials | SPCC+PLASTIC+RUBBER COATING(Panel thickness: 0.7mm) |
| Dimension (LxWxH) | 472*210*454mm |
| Net Weight | Net.: 4.97KG Gross: 6.12KG |
| 5.25" Drive Bays | 2 (all tool-free installation) |
| 3.5" Drive Bays | 4 (all tool-free installation) |
| 2.5" Drive Bays | 3 (all tool-free installation) |
| I/O Panel | 1×USB3.0/1×USB2.0/Audio×1/Mic×1 |
| Expansion Slots | 7 |
| Cooling Fans |
Included: Front: 1×120mm red LED; Rear: 1×120mm red LED; |
| Power Supply Type | ATX PS2 |
| CPU Cooler Compatibility | 168mm |
| VGA Compatibility | 310mm |
Vendor Info
Highlights:
* Manufacturers name: Tesseract SW-RD.
* Market orientation: System builder & gaming.
* Case type: Mid tower.
* External colour: Charcoal.
* Internal powder coating colour: Charcoal.
* Case dimensions (LxWxH): 472mm x 210mm x 454mm.
* Material: Steel, rubber & plastic.
* PSU mounting position: Bottom rear.
* 5.25" drive bays (external): 2.
* 3.5" drive bays (external): 0.
* 3.5" drive bays (internal): 4.
* 2.5" drive bays (internal): 3.
* Compatible motherboard sizes: Standard & Micro ATX + Mini ITX.
* Rear expansion slots: 7.
* Rear expansion slot cover type: Standard.
* Case cable management or ducting system: Yes.
* Liquid cooling tubing pass thru holes: 2.
* Liquid cooling internal radiator mounts: 0.
* Included front panel cooling fans: 1x 120mm red LED.
* Included rear panel cooling fans: 1x 120mm red LED.
* Included top panel cooling fans: 0.
* Included side panel cooling fans: 0.
* Total available case fan mounting positions: 6.
* Included AC97 I/O ports: 0.
* Included HD Audio I/O ports: 1.
* Included USB2 I/O ports: 1.
* Included USB3 I/O ports: 1.
* Included e-SATA I/O ports: 0.
* Included IEEE1394 FireWire I/O ports: 0.
* Included I/O port location: Top.
