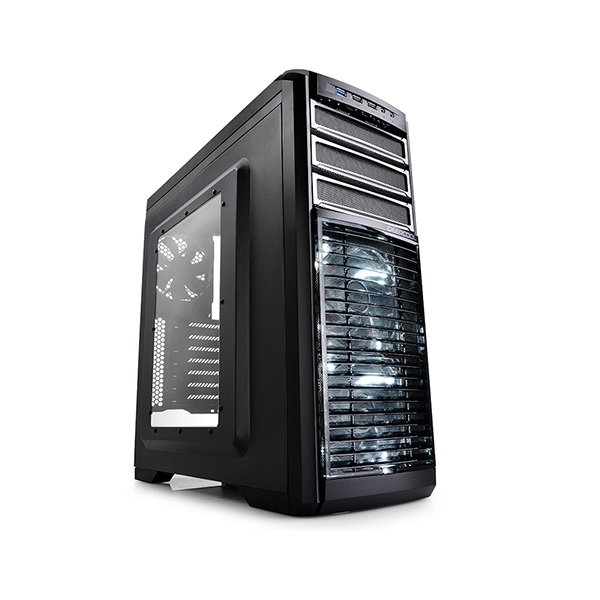

main product photo

Deepcool Kendomen Ti Mid Tower Chassis (usb3) Dp-ccatx-kdm5fbkti

DeepCool Kendomen TI Mid Tower Chassis (USB3) DP-CCATX-KDM5FBKTI
$91.00
SKU: 198287
MPN: DP-CCATX-KDM5FBKTI Link
Manufacturer: http://www.deepcool.com/
Brand: Deepcool
Warranty: 1 Year Manufacturer's return to base
Availability:

Preorder 2-3 weeks
Fright Estimate
Add to Compare
Kendomen TI

Midi-tower chassis features excellent cooling performance, easy installation, superior expandability and easy future maintaining.

Design

Description

KENDOMEN is an ATX PC case, offering room for ATX, Micro ATX and Mini ITX motherboards. It has a classic exterior design and compact interior layout, the case features excellent cooling performance, easy installation, superior expandability and easy future maintaining.




Excellent Cooling Performance

The KENDOMEN comes with front 2 intake LED fans, two exhaust fans at the top (supports liquid cooler instead) and one at rear. With 5 pre-installed fans, the case provides a clean and great airflow, you don’t need to buy any other case fan, it saves cost and time of your build. Moreover, The fan-speed adjusting switch ensure an awesome silence-performance ratio.

Easy Installation

The case features multiple designs to make the building process simple. It includes motherboard stand offs; large cut out behind motherboard tray (install CPU cooler’s back plate readily); Tool-less ODD/HDD installation and 15mm sufficient cable management space.


Superior Expandability

The KENDOMEN has a lot of space for storage expansion, it comes with 3x5.25" bays, 3x3.5" bays (which supports 2.5" SSD/HDD), and 3x2.5" drive bays. After removing 2.5" drive cage, it is capable to hold a 15.7" or 400mm length graphic card, in addition to 7 expansion slots, KENDOMEN is ready for most enthusiastic build.


Easy Future Maintaining

The top, front and bottom panel of KENDOMEN equipped with filter protects against dust and dirt, quick-remove design of top and front panel makes the cleaning so much easier.


Connection and Controlling

The control platform and I/O of KENDOMEN are located on the top of front panel, which are easy to access; Noise level and cooling performance can be managed with fan speed controller and USB3.0 ensure a quick data exchange between different devices.

Features

  • Support 240mm Liquid Cooler installation at top
  • With one fan-speed adjusting switch, can control 2 fans at the same time
  • 5 fans pre-installed (two 120mm LED fan and three 120mm black fan)
  • 1 *USB 3.0 +2*USB 2.0 Ports
  • Quick-move design of the top/front panel for easy installation/cleaning
  • Tool free installation design for ODD/HDD (Rubber buffer for 3.5HDD)
  • 7pcs expansion slots
  • With rubber buffer and dust filter for PSU
  • Wide CPU cut out for CPU cooler mounting
  • Bottom loaded PSU for effective cooling and large inner space
  • Support cable management
  • Support ATX/MicroATX/MINI-ITX motherboards
  • With side-window
  • KENDOMEN RD: Red Decorating Parts, Red LED fan
  • KENDOMEN TI: Titanium color Decorating Parts, White LED fan
Technical Spec

Motherboards ATX/MICRO ATX/MINI-ITX
Materials SECC+PLASTIC (ABS)(Panel thickness: 0.7mm)
Dimension (LxWxH) 491*200*486mm
Net Weight 5.76kg
Gross Weight 6.66kg
5.25" Drive Bays 3 (all tool-free installation)
3.5" Drive Bays 3 (all tool-free installation)
2.5" Drive Bays 3 (tool-free)+ 3 (Switchable from 3.5")
I/O Panel 1USB3.0/2USB2.0/Audio(HD)1/Mic1
Expansion Slots 7
Cooling Fans Pre-installed: Rear: 1120mm fan; Front: 2120mm LED fan; Top: 2120mm fan
Power Supply Type ATX PS2
CPU Cooler Compatibility 165mm
VGA Compatibility 310mm
Package dimension L530mm*W250mm*H550mm
Fan speed switch 2 working status+off status

Product Dimension

Manufacturer: DeepCool. Established in 1996, Deepcool have produced desktop and server coolers for globally renowned partners such as Dell, Fujitsu & Siemens. Originally inspired by the victory of Deep Blue over chess champion Gary Kasparov, Deepcool founders knew the computer had become our most powerful tool and dreamt their cooling products could attain the same stunning greatness as that ground breaking supercomputer program. Combining their respect for the achievements of Deep Blue with their growing cooling line up, the name Deepcool was coined!

Highlights:

* Manufacturers name: Kendomen TI (titanium highlights & white LED fans).
* Market orientation: System builder & gaming.
* Case type: Mid tower.
* External colour: Charcoal.
* Internal powder coating colour: Charcoal.
* Case dimensions (LxWxH): 491mm x 200mm x 486mm.
* Material: Steel & plastic.
* PSU mounting position: Bottom rear.
* 5.25" drive bays (external): 3.
* 3.5" drive bays (external): 0.
* 3.5" drive bays (internal): 3.
* 2.5" drive bays (internal): 3.
* Compatible motherboard sizes: Standard & Micro ATX + Mini ITX.
* Rear expansion slots: 7.
* Rear expansion slot cover type: Standard.
* Case cable management or ducting system: Yes.
* Liquid cooling tubing pass thru holes: 0.
* Liquid cooling internal radiator mounts: 0.
* Included front panel cooling fans: 2x 120mm white LED.
* Included rear panel cooling fans: 1x 120mm.
* Included top panel cooling fans: 2x 120mm.
* Included side panel cooling fans: 0.
* Total available case fan mounting positions: 5.
* Included AC97 I/O ports: 0.
* Included HD Audio I/O ports: 1.
* Included USB2 I/O ports: 2.
* Included USB3 I/O ports: 1.
* Included e-SATA I/O ports: 0.
* Included IEEE1394 FireWire I/O ports: 0.
* Included I/O port location: Top.
