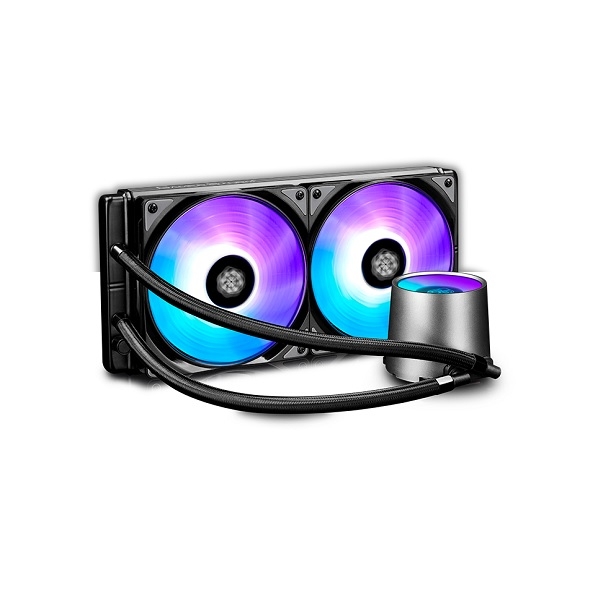

Deepcool Castle 280 Rgb Enclosed Liquid Cooling System Dp-Gs-H12L-Csl280Rgb
| SKU: | 273439 |
|---|---|
| MPN: | DP-GS-H12L-CSL280RGB Link |
| Manufacturer: | http://www.deepcool.com/ |
| Brand: | Deepcool |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
Preorder 2-3 weeks |
| Fright Estimate |
Description
Double window panes and immersive ambient lighting are designed to provide a perfect display of aesthetic illumination.
The 16.7 M true color RGB flowing light system with 5 in-built effects (dynamic, static, breathing, comet, and fashion collision) has 36 interchangeable lighting modes.
Motherboards are supported with synchronized lighting control via addressable RGB function*
Ultra-large, pure copper CPU block provides effective coverage and heat dissipation for CPUs of any size.
An optimized E-shaped micro water channel is designed to effectively enhance heat circulation efficiency and to enlarge heat contact areas.
The ceramic axle bearings and axle cores guarantee an ultra-long service life.
It supports mainstream INTEL and AMD socket mounting, including TR4/AM4.
*WS2812B ADD-RGB LED is applied and the below 3pin ADD-RGB Headers are compatible for the device: 5V/D/G and 5V/D/NC/G, which is used for the mainstream M/B brands like ASUS, MSI, Gigabyte.




























Specifications
Application For
LGA20XX/LGA1366/LGA115X
High End Desktop i9/i7
Core i7/i5/i3
Pentium G
Celeron G
TR4/AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
Ryzen
APU A12/A10/A8/A6/A4
FX 8/6/4-Core
Phenom II X6/X4/X3/X2
Athlon II X4/X3/X2
Athlon X4
Technical Spec
| Pump Dimensions | 91×79×71mm(L×W×H) |
| Radiator Dimensions | 323×146×27mm(L×W×H) |
| Radiator Material | Aluminum |
| Fan Dimensions | 140×140×26mm(2pcs) |
| Fan Speed | 500±200~1800±10%RPM |
| Fan Air Flow | 96.7CFM |
| Fan Air Pressure | 2.83mmH2O |
| Fan Life Expectancy | 40000 hours |
| Fan Noise Level | 19.8~35.4dB(A) |
| Fan Bearing Type | Hydro Bearing |
| Fan Connector | 4Pin |
| Fan Rated Voltage | 12VDC |
| Fan Rated Current | 0.02±15%A(20%)-0.32±10%A |
| Fan Power Consumption | 3.84W |
| Pump Life Expectancy | 120000 hours |
| Pump Connector | 3Pin |
| Pump Operating Voltage | 10.8~13.2VDC |
| Pump Rated Voltage | 12VDC |
| Pump Speed | 2550±10%RPM |
| Pump Load Current | 0.21±10%A |
| Pump Power Consumption | 2.52W |
| Net Weight | 1559±10g |
| LED Type | Addressable RGB LED |
| LED Rated Voltage | 5VDC |
| LED Rated Current | 0.48±10%A |
| LED Rated Power | 2.4W |
| LED Connector | 3pin(+5V-D-G) |
| LED Control | M/B with 5V ADD-RGB Header |
| EAN | 6933412726494 |
| P/N | DP-GS-H12L-CSL280RGB |
Product Dimension
