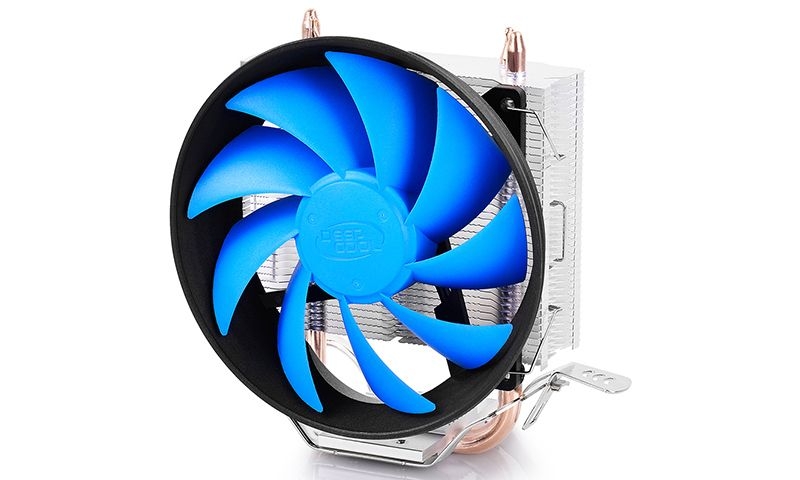

Deepcool Gammaxx 200t Pwm Multi Socket Cpu Cooler Dp-mch2-gmx200t

NULL
$24.00
SKU: 211630
MPN: DP-MCH2-GMX200T Link
Brand: Deepcool
Warranty: 1 Year Manufacturer's return to base
Availability:

In stock

Fright Estimate
Add to Compare
GAMMAXX 200 T

DESIGN

Description

The new generation of Gammaxx 200T has preserved key features from Gammaxx 200 of great heat dissipation performance: The “Core Touch Technology” allows direct heat transfer from CPU to heatsink. However, breakthrough has been created for its massive heatsink and the bigger 12cm PWM fan, which offer strong airflow and a better cooling performance.



Core Touch Technology &Massive Heatsink

2 sintered powder heatpipes directly touch the CPU surface and conduct heat from the processor quickly to protect it from overheating.



12cm PWM Fan Offers A Perfect Airflow
　

120x25mm fan with PWM function offers a perfect balance between airflow and noise.



Universal Socket Compatibility

Equipped with multiple clips to support Intel LGA1156/1155/1151/1150/775 and AMD FM2/FM1/AM3+/AM3/AM2+/AM2/K8.

Easy Installation

Easy installation without moving the motherboard.

　

Equipped with multiple clips to support Intel LGA1156/1155/1151/1150/775 and AMD FM2/FM1/AM3+/AM3/AM2+/AM2/K8.

2 sintered powder heatpipes directly touch the CPU surface and conduct heat from the processor quickly to protect it from overheating.

120x25mm fan with PWM function offers a perfect balance between airflow and noise.

Easy installation without moving the motherboard.

High cooling performance up to 100W solution.

Application For

Intel Socket 95W

LGA1156/LGA1155/LGA1151/LGA1150/LGA775

Core i7/i5/i3
Core 2 Quad/Duo
Pentium/Pentium G
Celeron/Celeron G APU A10/A8/A6/A4

AMD Socket 100W

FM2/FM1/AM3+/AM3/AM2+/AM2/940/939/754

FX 8/6/4-Core
Phenom II X6/X4/X3/X2
Phenom X4/X3/X2
Athlon II X4/X3/X2
Athlon X4/X2
Athlon
Sempron
Business Class

Brand
Deepcool
Series
GAMMAXX
Model
DP-MCH2-GMX200T

Details

Type
Fan & Heatsinks
Fan Size
120mm
Compatibility
Intel LGA1156 / 1155 / 1151 / 1150 / 775 and AMD FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2 / K8
Bearing Type
Hydro Bearing
RPM
900 +/- 150 - 1600 +/- 10% RPM
Air Flow
54.25CFM
Noise Level
17.80 - 26.10 dB(A)

Dimensions & Weight

Fan Dimensions
120 x 120 x 25 mm
Heatsink Dimensions
5.04" x 2.78" x 5.18"
Weight
0.80 lb.

Features

Features
Equipped with multiple clips to support Intel LGA1156/1155/1151/1150/775 and AMD FM2/FM1/AM3+/AM3/AM2+/AM2/K8.

2 sintered powder heatpipes directly touch the CPU surface and conduct heat from the processor quickly to protect it from overheating.

120x25mm fan with PWM function offers a perfect balance between airflow and noise.

Easy installation without moving the motherboard.

High cooling performance up to 100W solution.

Rated Voltage: 12 V DC

Operating Voltage: 10.8 - 13.20 V DC

Started Voltage: 7 V DC

Rated Current: 0.13 +/- 10% A (MAX)

Power input: 1.56W
Manufacturer: DeepCool. Established in 1996, Deepcool have produced desktop and server coolers for globally renowned partners such as Dell, Fujitsu & Siemens. Originally inspired by the victory of Deep Blue over chess champion Gary Kasparov, Deepcool founders knew the computer had become our most powerful tool and dreamt their cooling products could attain the same stunning greatness as that ground breaking supercomputer program. Combining their respect for the achievements of Deep Blue with their growing cooling line up, the name Deepcool was coined!

Highlights:

* Cooler type: Tower.
* Number of heatpipes: 2.
* Cooler height: 131mm.
* Cooler width: 120mm.
* Cooler length: 70mm.
* Intel socket compatibility: LGA115x & 775.
* AMD socket compatibility: FM2, FM1, AM3+, AM3, AM2+, AM2, 940, 939 & 754.
* Included fan model(s): 1x 120mm PWM.

Would you like to know more? Check out the full product information page.
