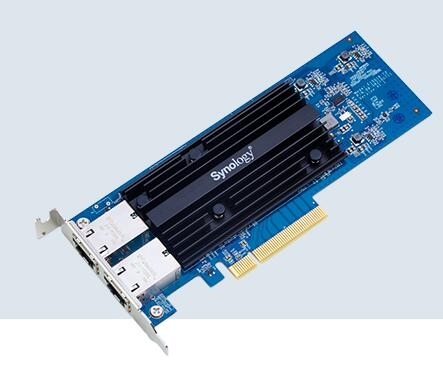

Synology E10g18-t2 10gbe Single Ethernet Adapter Card With Rj-45 Connectors. E10g18-t2
| SKU: | 270885 |
|---|---|
| MPN: | E10G18-T2 Link |
| Manufacturer: | https://www.synology.com/ |
| Brand: | Synology |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
In stock |
| Fright Estimate |
Description
Achieve outstanding network performance with minimal effort
Enjoy a smooth migration to high-speed 10Gbps Ethernet. E10G18-T2 delivers superior transmission performance with the capability to offload packet processing and free up CPU resources for more tasks. It supports IEEE 802.3an/ab (10GBASE-T/1000BASE-T) and 802.3x with dual RJ-45 connectors, providing a total data rate of 20Gbps using standard CAT6 or better UTP cabling connections. Features such as Link Aggregation, Jumbo Frame, TSO, and TCP/UDP/IP Checksum offloading satisfy most workloads requiring high performance, making E10G18-T2 an ideal and economical solution for 10Gbps networking adoption.
5 year warranty
Built to handle intensive workloads, Synology network add-in-cards are backed by Synology's 5 year limited warranty.
Specifications
| General Specifications | |
| Standards |
|
| Data Transfer Rates | 10 Gbps |
| Network Operation Mode | Full Duplex |
| Supported Features |
|
| Applied Models |
|
| Note | DSM version requirement: 6.2.1-23824 or later version |
| Hardware Specifications | |
| PCIe Interface | PCIe 3.0 x8 |
| Bracket Height | Low Profile and Full Height |
| Size (Height x Width x Depth) | 170.6 mm x 68.9 mm x 13.6 mm |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
| Warranty | 5 Years |
