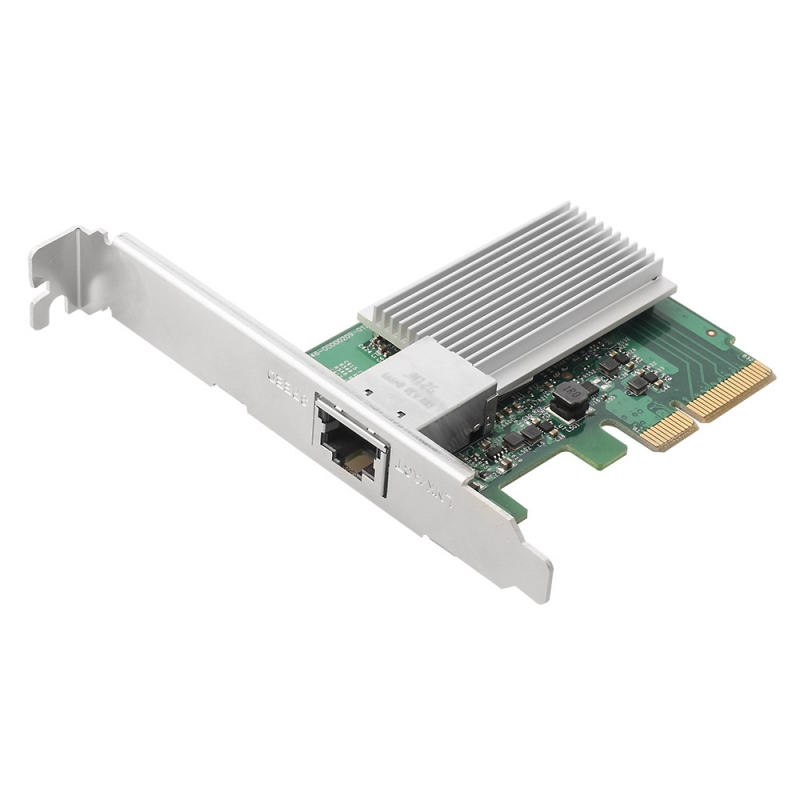

Edimax 10 Gigabit Ethernet Pci Express Server Adapter En-9320Tx-E
$135.00
| SKU: | 272030 |
|---|---|
| MPN: | EN-9320TX-E Link |
| Manufacturer: | https://www.edimax.com/ |
| Brand: | Edimax |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
In stock |
| Fright Estimate |
Description
▼
10 Gigabit Ethernet PCI Express Server Adapter
EN-9320TX-E
- PCI Express rev. 2.0 Specification x4 interface
- 10 Gigabit throughput with 100-meter UTP cable
- Backward compatible with 1000Bast-T, 100Base-TX network
- 16K jumbo frames
- IP, TCP, UDP checksum offloading
- Reduced CPU utilization and improved through
- Supports IEEE 802.1Q VLAN ID tagging and IEEE 802.1q QoS
- Low profile bracket included
The EN-9320TX-E is an ideal selection to upgrade your server or workstation as the high-performance, low-power consumption and better-quality solution to complement the requirements of low latency, high bandwidth, high-throughput and cost-effective Gigabit Ethernet Adapter.
10GbE Superior Network Speed
Equipped with a 10 Gigabit RJ45 interface, the EN-9320TX-E can provide 10 times better performance than existing Gigabit transmissions.
Advanced Features & Security The EN-9320TX-E features 802.1Q Virtual LAN (VLAN) tagging for Ethernet frames providing network management with a flexible and more secure environment. Moreover the card supports advanced features for best performance such as 16K Jumbo Frame and IEEE 802.3x Flow Control. |  |
 | Cost Effective and Easy Migration 10G Adapter The cost-effective solution of 10Gbps high-speed adapter on 10 Gigabit network connection – offering full compatibility to 10/5/2.5/1Gbps and 100Mbps networking standards and existing copper network. |
Application Diagrams
Specifications
▼
SPECIFICATIONS
| HARDWARE | ||
| Attachment Interface | PCI Express Rev. 2.0 Specification x4 Interface | |
| Media Interface | RJ-45 Connector | |
| Jumbo Frame | 16K Bytes | |
| LED Indicators | LNK / ACT Per Port | |
| Typical Power Consumption | 4 Watts | |
| SOFTWARE | ||
| OS Compatibility | Windows Server 2012 R2, Server 2012, Server 2008R2, Server 2016 Windows 10, Windows 8.1, Windows 7 (32/64-bit) Linux 4.x, 3.x, Linux 2.6.x (32/64-bit) Mac OS X 10.10.X (Yosemite) Mac OS X 10.11.x (EL Captain) MAC OS Sierra (10.12.x) VMware ESXi 6.0, 5.5, 5.1 Microsoft Hyper-V Linux KVM Oracle VirtualBox | |
| ENVIRONMENT | ||
| Temperature | Operating: 0 - 50 ℃ Storage: -40 - 85℃ | |
| Humidity (Non-condensing) | Operating: 5 - 95% Storage: 5 - 95% | |
| Physical Characteristics | ||
| Dimensions (W x D) | 82 x 62mm | |
| Weight | 45g | |
| Standards Compliance | ||
| Standards and Protocols | IEEE 802.3ae: 10Gbps Ethernet IEEE 802.3x: Flow Control and Back Pressure IEEE 802.2ad: Link Aggregation IEEE 802.1Q VLAN support RFC2819 RMON MIB statistics | |
| Certifications | FCC, CE | |
