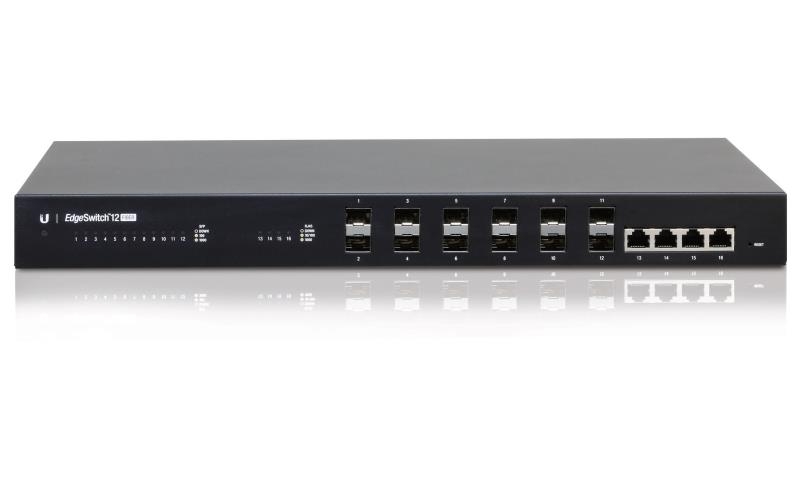

Ubiquiti Managed Fiber 12 Sfp 8 Supports 100mbps 4x Gigabit Es-12f
| SKU: | 224184 |
|---|---|
| MPN: | ES-12F-AU Link |
| Manufacturer: | https://www.ubnt.com/ |
| Brand: | Ubiquiti |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
In stock |
| Fright Estimate |
Description
Gigabit Connectivity
For fiber connectivity, the EdgeSwitch Fiber features 12 SFP ports, eight of which also support 100 Mbps. For copper connectivity, the EdgeSwitch Fiber offers four Gigabit RJ45 ports.
Powerful Switching Performance
The EdgeSwitch Fiber offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non‑blocking throughput, the EdgeSwitch Fiber supports up to 16 Gbps.
Advanced Enterprise Switching
The EdgeSwitch Fiber uses a sophisticated operating system that provides advanced switching features, including VLAN tagging and link aggregation, and limited layer-3 features, including static routing and DHCP server functionality.
Specifications
| Brand Name | Ubiquiti |
|---|---|
| Series | EdgeSwitch |
| Item model number | ES-12F |
| Operating System | N/A |
| Item Weight | 7.4 pounds |
| Product Dimensions | 21.5 x 10.5 x 3 inches |
| Item Dimensions L x W x H | 21.5 x 10.5 x 3 inches |
| Color | black |
•12 SFP ports (1G) and 4 RJ45 GbE ports
•1U rackmount form-factor with removable mounting ears
•No PoE output support (i.e., like the Lite models)
•Fanless design (like ES-24-Lite)
•DC power input support: 2.5 mm DC power inline connector, can be used with external PSU, 16V to 25V, minimum 56W (like ES-48-Lite)
•RJ45 serial console port
Vendor Info
•1U rackmount form-factor with removable mounting ears
•No PoE output support (i.e., like the Lite models)
•Fanless design (like ES-24-Lite)
•DC power input support: 2.5 mm DC power inline connector, can be used with external PSU, 16V to 25V, minimum 56W (like ES-48-Lite)
•RJ45 serial console port
