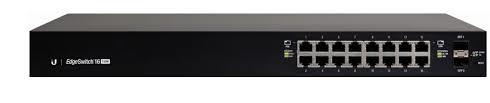

Ubiquiti Edgeswitch Managed Poe+ Giga Switch 16 Port 150w Es-16-150w
| SKU: | 232393 |
|---|---|
| MPN: | ES-16-150W-AU Link |
| Manufacturer: | https://www.ubnt.com/ |
| Brand: | Ubiquiti |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
In stock |
| Fright Estimate |
Description
Powerful Enterprise Switch Models
The EdgeSwitch™ delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Total non-blocking throughput: up to 26 Gbps for 24-port models and up to 70 Gbps for 48-port models.
Enterprise-Class Features
The EdgeSwitch™ supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
Optical Fiber Backhaul
Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.
Convenient PoE+ Support
The EdgeSwitch™ features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.
Breakthrough Value
The EdgeSwitch™ provides top price/performance value: a full-featured, enterprise-class switch starting at $299 USD MSRP.
Advanced UI
The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.
Specifications
Model Comparison
 ES-16-150W |  ES-24-250W |  ES-24-500W |  ES-48-500W |  ES-48-750W | |
|---|---|---|---|---|---|
| Total Non-Blocking Throughput | 18 Gbps | 26 Gbps | 26 Gbps | 70 Gbps | 70 Gbps |
| Gigabit RJ45 Ports | 16 | 24 | 24 | 48 | 48 |
| SFP+ Ports | N/A | N/A | N/A | 2 | 2 |
| SFP Ports | 2 | 2 | 2 | 2 | 2 |
| Max. Power Consumption | 150W | 250W | 500W | 500W | 750W |
Vendor Info
(2) SFP ports
Total, non-blocking throughput: 18 Gbps
(1) Serial Console Port
Switching Capacity: 36 Gbps
Forwarding Rate: 26.78 Mpps
Maximum power consumption: 150W
Supports POE+ IEEE 802.3at/af and 24V Passive PoE
Rackmountable with rack mounts included
Advanced Switching Technology for the Masses
Build and expand your network with Ubiquiti Networks® EdgeSwitchTM, part of the EdgeMAX® line of products.
The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks.
The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
Switching Performance
The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, the 16-port model supports up to 18 Gbps.
Compatibiity SFPs List
https://help.ubnt.com/hc/en-us/articles/205220850-EdgeMAX-Which-SFPs-are-compatible-with-the-EdgeSwitch-
use this AU power cord - CBPOWERNEW
