Model		fi-7030
Functional Specifications
Image Sensor Type		Color CIS (Contact Image Sensor) x 2 (front x 1, back x 1)
Light Source		3 Color LED (Red / Green / Blue) x 2 (front x 1, back x 1)
Optical Resolution		600 dpi
Output Resolution(1)	Color (24-bit)	50 to 600 dpi  (adjustable by 1 dpi increments), 1200 dpi (driver)(2)
	Grayscale (8-bit)
	Monochrome
Output Color Depth		Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
Internal Video Processing		1,024 levels (10-bit)
Image Processing Function		Deskew, Cropping, Image emphasis, Error diffusion, Dither, Black & White Method, Dynamic threshold (iDTC), Static threshold, Advanced DTC, SDTC, De-Screen, Dropout color (Red / Green / Blue / White / None / Saturation / Custom), Automatic color detection, Multi image output, Blank page detection, sRGB output, Split image, Front/Back Merging
Scanning Speed(3)  (A4, Portrait)	Color(4)  Grayscale(4)  Monochrome(5)	ADF	Simplex: 27 ppm, Duplex: 54 ipm  (200 dpi / 300 dpi)
ADF Capacity(6)		50 Sheets (A4: 80 g/m² or 20 lb.)
Expected Daily Volume		4,000 Sheets
Document Size	ADF Minimum	50.8 mm x 50.8 mm (2 in. x 2 in.)
	ADF Maximum	216 mm x 355.6 mm (8.5 in. x 14 in.)
	Long Document(7)	216 mm x 5,588 mm (8.5 in. x 220 in.)
ADF Feeding  Paper Weight  (Thickness)	Paper	40 g/m² to 209 g/m² (11 lb. to 56 lb.), A8 size: 127 g/m² to 209 g/m² (34 lb. to 56 lb.)
	Plastic Card	0.76 mm or less, Embossed card: usable, Multiple cards cannot be set at a time
Interface		USB2.0 / USB1.1
Minimum PC Specification		PaperStream Capture, i5 2.5 GHz Processor, 4 GB RAM
Physical Specifications
Power Requirements		100 to 240 VAC ±10 %
Power Consumption		Operating mode: 17 W or less, Sleep mode: 1.1 W or less, Auto Standby (Off) mode: 0.15 W or less
Dimensions (WxDxH)(8)		290 x 146 x 130 mm (11.41 x 5.74 x 5.11 in.)
Weight		2.9 kg (6.4 lb) or less
Environmental Compatibility		ENERGY STAR® / RoHS
Operating Environment	Temperature	5 to 35°C (41 to 95°F)
	Relative Humidity	20 % - 80 % (non-condensing)
Inbox Contents		ADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM,  Quick Installation Guide, Safety Precaution
Bundled Software		PaperStream IP Driver (TWAIN/TWAIN x64/ISIS), WIA Driver(9), PaperStream Capture, ScanSnap Manager for fi Series(10), Software Operation Panel, Error Recovery Guide, ABBYY FineReader for ScanSnap™(10), Scanner Central Admin
Options		2D Barcode for PaperStream, Carrier Sheet, PaperStream Capture Pro
OS Support		Windows® 10 (32-bit/64-bit), Windows® 8.1 (32-bit/64-bit), Windows® 7 (32-bit/64-bit), Windows Server® 2019 (64-bit), Windows Server® 2016 (64-bit), Windows Server® 2012 R2 (64-bit), Windows Server® 2012 (64-bit), Windows Server® 2008 R2 (64-bit), Windows Server® 2008 (32-bit/64-bit), Linux (Ubuntu)(11)

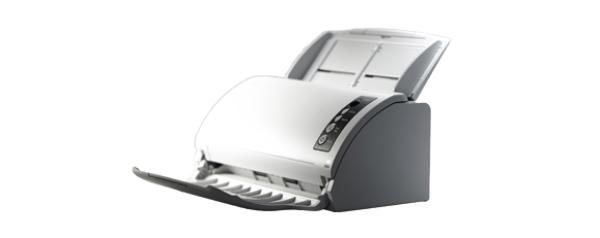

The FI-7030 scans A4 portraits at 27 ppm/54 ipm (200/300 dpi), loads up to 50 sheets at a time, and ensures efficiency with quick startup times and a small footprint.
⚫27 ppm / 54 ipm scanning in color, grayscale and monochrome
⚫50-sheets Automatic Document Feeder (ADF)
⚫Scanner Central Admin Suite
⚫Embossed card scanning (0.76 mm thickness)
⚫Accurate mixed batch scanning for different types of documents
⚫Comes with PaperStream IP (TWAIN/ISIS), PaperStream Capture and PaperStream Capture Pro is available as an option
