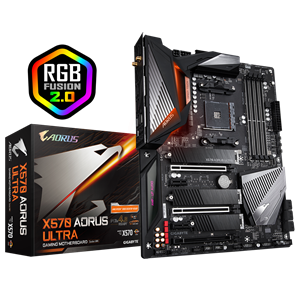

main product photo

Gigabyte Amd X570 Aorus Ultra Am4 1Xhdmi 1Xtype-C 1Xrj45 5Xpci-E 802.11Ac Atx 3Xm.2 6Xsata 3 Years Warranty X570 Aorus Ultra

$590.00
SKU: 286691
MPN: X570 AORUS ULTRA Link
Manufacturer: https://www.gigabyte.com
Brand: Gigabyte
Warranty: 1 Year Manufacturer's return to base
Availability:

Preorder 2-3 weeks
Fright Estimate
Add to Compare

AMD X570 AORUS Motherboard with 12+2 Phase IR Digital VRM, Fins-Array Heatsink & Direct Touch Heatpipe, Triple PCIe 4.0 M.2 with Thermal Guards, Intel® WiFi 6 802.11ax, Intel® GbE LAN with cFosSpeed, USB Type-C, RGB Fusion 2.0





  • Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • 12+2 Phases IR Digital VRM Solution with PowIRstage
  • Advanced Thermal Design with Fins-Array Heatsink and Direct Touch Heatpipe
  • Triple Ultra-Fast NVMe PCIe 4.0/3.0 M.2 with Triple Thermal Guards
  • Intel® WiFi 6 802.11ax 2T2R & BT 5
  • ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with WIMA Audio Capacitors
  • Intel® Gigabit LAN with cFosSpeed Internet Accelerator Networking
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Front & Rear USB 3.1 Gen2 Type-C™ Header & HDMI 2.0 support
  • Adopts a high quality ball bearing fan which guarantees 60,000 working hours.
  • Integrated I/O Shield Armor
  • Q-Flash Plus update BIOS Without Installing CPU, Memory and Graphics card




Specifications
Audio Realtek® ALC1220-VB codec, High Definition Audio, 2/4/5.1/7.1-channel, Support for S/PDIF Out
Chipset AMD X570
Form Factor ATX Form Factor; 30.5cm x 24.4cm
I/O Connectors 2 x SMA antenna connectors (2T2R), 1 x HDMI port, 1 x USB Type-C™ port, with USB 3.2 Gen 2 support, 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red), * For 3rd Generation AMD Ryzen™ processors only., 1 x USB 3.2 Gen 2 Type-A port (red), 3 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 1 x optical S/PDIF Out connector, 5 x audio jacks
Integrated CPU Graphics Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB, * For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.
LAN Intel® GbE LAN chip (10/100/1000 Mbit)
Memory/Type/Bus/Max. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory, 3rd Generation AMD Ryzen™ processors: Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules, 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
PCI Slots Integrated in the CPU (PCIEX16/PCIEX8): 3rd Generation AMD Ryzen™ processors:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16), 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8); 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16), 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8), * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors, the PCIEX16 slot operates at up to x8 mode. 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16); Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4), * For 3rd Generation AMD Ryzen™ processors only. 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen™ processors only.
Processor Support AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors
Raid Support for RAID 0, RAID 1, and RAID 10
RAM Type/Bus/Max. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory, 3rd Generation AMD Ryzen™ processors: Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules, 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
Socket AM4
Storage Interface Integrated in the CPU (M2A_SOCKET): 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support), 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support), Integrated in the Chipset (M2B_SOCKET/M2C_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2B_SOCKET), * For 3rd Generation AMD Ryzen™ processors only. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 4.0*/3.0 x2 SSD support) (M2C_SOCKET) * For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors
Warranty 3 Years
Weight 1.36kg
