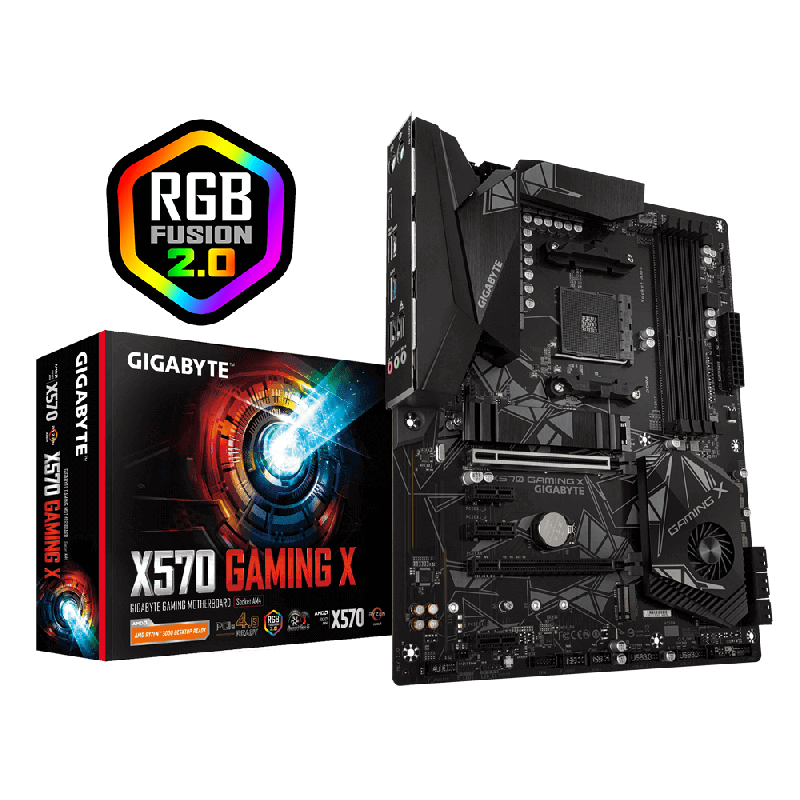

main product photo

Gigabyte Amd X570 Gaming X Am4 4Xddr4 1Xhdmi 1Xrj45 5Xpci-E Atx 2Xm.2 6Xsata 3 Years Warranty X570 Gaming X

$373.00
SKU: 286692
MPN: X570 Gaming X Link
Manufacturer: https://www.gigabyte.com
Brand: Gigabyte
Warranty: 1 Year Manufacturer's return to base
Availability:

In stock

Fright Estimate
Add to Compare

AMD X570 GAMING Motherboard with 10+2 Phases Digital VRM, Advanced Thermal Design with Enlarge Heatsink, Dual PCIe 4.0 M.2, M.2 Thermal Guard, GIGABYTE Gaming GbE LAN with Bandwidth Management, HDMI 2.0, RGB Fusion 2.0





  • Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • 10+2 Phases Digital VRM Solution
  • Advanced Thermal Design with Enlarge Heatsink
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with one Thermal Guard
  • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
  • GIGABYTE Gaming GbE LAN with Bandwidth Management
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Integrated I/O Shield Armor & HDMI 2.0 support
  • Q-Flash Plus update BIOS without installing CPU, Memory and Graphics card
Specifications
Audio Realtek® ALC887 codec, High Definition Audio, 2/4/5.1-channel
Chipset AMD X570
Form Factor ATX Form Factor; 30.5cm x 24.4cm
I/O Connectors 1 x PS/2 keyboard port, 1 x PS/2 mouse port, 1 x HDMI port, 4 x USB 3.2 Gen 1 ports, 2 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks
Integrated CPU Graphics 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR.
LAN Realtek® GbE LAN chip (10/100/1000 Mbit)
Memory/Type/Bus/Max. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory; 3rd Generation AMD Ryzen™ processors: Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules; 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
PCI Slots Integrated in the CPU (PCIEX16): 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16; 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 Integrated in the Chipset (PCIEX4/PCIEX1), 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) * For 3rd Generation AMD Ryzen™ processors only. 3 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen™ processors only.
Processor Support AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors
Raid Support for RAID 0, RAID 1, and RAID 10
RAM Type/Bus/Max. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory; 3rd Generation AMD Ryzen™ processors: Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules; 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
Socket AM4
Storage Interface Integrated in the CPU (M2A_SOCKET): 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support); 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support). Integrated in the Chipset (M2B_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) * For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors
Warranty 3 Years
Weight 1.36kg

AMD X570 GAMING Motherboard with 10+2 Phases Digital VRM, Advanced Thermal Design with Enlarge Heatsink, Dual PCIe 4.0 M.2, M.2 Thermal Guard, GIGABYTE Gaming GbE LAN with Bandwidth Management, HDMI 2.0, RGB Fusion 2.0



  • Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • 10+2 Phases Digital VRM Solution
  • Advanced Thermal Design with Enlarge Heatsink
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with one Thermal Guard
  • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
  • GIGABYTE Gaming GbE LAN with Bandwidth Management
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Integrated I/O Shield Armor & HDMI 2.0 support
  • Q-Flash Plus update BIOS without installing CPU, Memory and Graphics card
