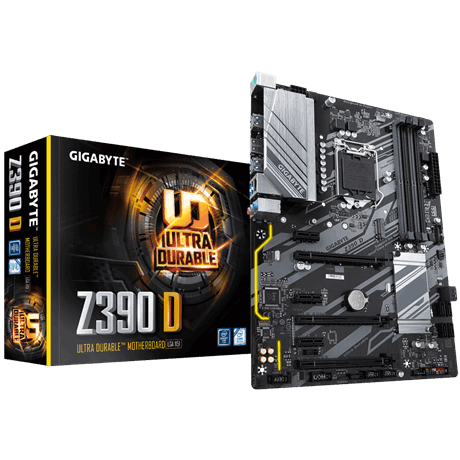

Gigabyte Intel Z390 Ultra Durable Lga1151 4Xddr4 1Xhdmi 1Xrj45 6Xpci-E Atx 1Xm.2 6Xsata 3 Years Warranty Ga-Z390 D

$180.00
SKU: 291204
MPN: GA-Z390 D Link
Manufacturer: https://www.gigabyte.com
Brand: Gigabyte
Warranty: 1 Year Manufacturer's return to base
Availability:

In stock

Fright Estimate
Add to Compare

Intel Z390 D Motherboard with Advanced Thermal Design, ALC887, 2-Way CrossFire™X Multi-Graphics, GIGABYTE GAMING LAN, Smart Fan 5, NVME PCIe Gen3 x4 22110 M.2, CEC 2019





  • Supports 9th and 8th Gen Intel® Core™ Processors

  • Dual Channel Non-ECC Unbuffered DDR4

  • Advanced Thermal Design

  • NVMe PCIe Gen3 x4 22110 M.2 Connector

  • Multi-Way Graphics Support

  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management

  • Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection

  • Support RGB Light Strip in Full Colors

  • CEC 2019 Ready, Save the Power as Easy as One Click

  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

  • Lightning-Fast Intel® Thunderbolt™ 3 AIC Support

  • Intel® Optane™ Memory Ready
Specifications
Audio Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out
Chipset Intel® Z390 Express Chipset
Form Factor ATX Form Factor; 30.5cm x 23.0cm
I/O Connectors 1 x PS/2 mouse port, 1 x PS/2 Keyboard port, 1 x HDMI port, 6 x USB 3.1 Gen 1 ports, 1 x RJ-45 port 3 x audio jacks
Integrated CPU Graphics Integrated Graphics Processor-Intel® HD Graphics
LAN Realtek® GbE LAN chip (10/100/1000 Mbit)
Memory/Type/Bus/Max. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) Dual channel memory architecture Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
PCI Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot, 2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2), 3 x PCI Express x1 slots
Processor Support Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
Raid Support for RAID 0, RAID 1, RAID 5, and RAID 10
RAM Type/Bus/Max. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) Dual channel memory architecture Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Socket LGA1151
Storage Interface 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) 6 x SATA 6Gb/s connectors
Warranty 3 Years
INTEL, Z390, ULTRA DURABLE, LGA1151, 4xDDR4, 1xHDMI, 1xRJ45, 6xPCI-E, ATX, 1xM.2, 6xSATA, 3 Years Warranty
