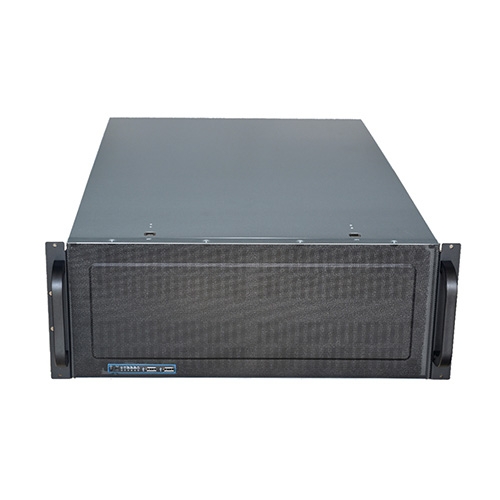

Tgc Rack Mountable Server Chassis 4U 650Mm Depth With Atx Psu Window - No Psu H4-650
Special Price
$188.00
Regular Price
$217.00
| SKU: | 272250 |
|---|---|
| MPN: | TGC-H4-650 |
| Manufacturer: | http://www.tgcipc.com/ |
| Brand: | Tgc |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
In stock |
| Fright Estimate |
Description
▼
- 4U rackmount design,meets EIARS-310C standard.
- 15 x 3.5" drive bays
- Easy drive mounting with 24 screwless rails
- Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6") Mini ITX (6.7" x 6.7") motherboard
- Rigid top cover
- Supplied with 3 x 120mm Hot Swap Fan Wall and 4 x 80mm front fans,2 x 80mm rear fans for better ventilation
- Front accessible USB ports
- Smooth border prevent lacerating your skin
Specifications
▼
- Drive Bay: Supports fifteen 3.5" drives
- Cooling Fans: 3 x 120mm Hot Swap Fan Wall and 4 x 80mm front fans,2 x 80mm rear fans
- Switch: Power ON/OFF x 1, System reset x 1
- Indicator: Power ON/OFF x 1, HDD x 1, NETWORK X 2
- Connector: Two front accessible USB port
- Motherboard Compatibility:
- EEB (12"x13")
- CEB(12"x10.5")
- ATX (12"x9.6")
- Micro ATX (9.6" x 9.6")
- Mini ITX (6.7" x 6.7")
- Power Supply Options:
- ATX (TGC-SERVERATX450)
- Standard 2U PSU (TGC-SG2U600)
- 2U redundant 1+1 (TGC-MR2-600/TGC-R2-400)
- Dimensions (WxDxH): 483mm x 650mm x 176mm
- Packing
- Gross 14kg
- Net 13kg
- Environment Temperature: 0/55 °C, 32/131 °F (Operating) -20/60 °C, -4/140 °F (Non-Operating)
- Relative Humidity: 5% to 95%,non-condensing
- Vibration (5-500Hz): 1 Grms (Operating), 2 G (Non-Operating)
- Shock: 10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)
