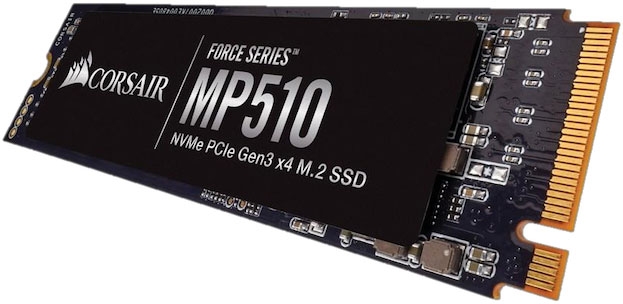

Corsair Force Mp510 240gb M.2(2280) Nvme Pcie Ssd - Upto 3100/ 1050 Mb/ S Upto 180/ 240k Iops

CSSD-F240GBMP510
$89.00
SKU: 268876
MPN: CSSD-F240GBMP510 Link
Manufacturer: https://www.corsair.com/
Brand: Corsair
Warranty: 1 Year Manufacturer's return to base
Availability:

In stock

Fright Estimate
Add to Compare

NVME IF YOU WANT TO GO FASTER



EXTREME STORAGE PERFORMANCE

All-new extreme data performance controller delivers up to 3,480MB/sec sequential read, and up to 3,000MB/s sequential write, for blazing fast read, write and response times.



HIGH-SPEED NVME PCIE GEN3 x4 M.2 INTERFACE

For simple connection and maximum bandwidth.

HIGH-DENSITY 3D TLC NAND

Provides the ideal mix of performance, endurance and value to keep your drive performing at its best for years.



COMPACT M.2 2280 FORM FACTOR

Ultra-compact M.2 2280 size fits directly into your notebook or motherboard with no additional cables or connectors.

COMPREHENSIVE FIVE-YEAR CORSAIR WARRANTY

Long-term reliability and industry leading customer support for peace of mind.

CONTENTS AND SPECIFICATIONS



　

  • PACKAGE CONTENTS

  •  Force Series™ MP510 M.2 SSD
  • Warranty card


  • COMPATIBILITY

  • Form Factor: M.2 SSD
  • Supported Platforms: Intel® 100, 200, X99, X299 Chipsets, AMD Socket AM4 Platform

　

TECHNICAL SPECIFICATIONS

  • Endurance: 400 TBW
  • MTBF: 1,800,000 Hours
  • DEVSLP: L1.2 < 2mW
  • Encryption: AES 256-bit Encryption
  • Storage Temperature: -40°C to +85°C
  • SSD Operating Temperature: 0°C to +70°C
  • SSD Shock: 1500 G
  • Storage Humidity: 93% RH (40° C)
  • Operating Humidity: 90% RH (40° C)
  • Vibration: 20Hz~80Hz/1.52mm, 80Hz~2000Hz/20G

  • SSD Interface: PCIe Gen 3.0 x4
  • SSD Max Sequential Read CDM: Up to 3,100MB/s
  • SSD Max Sequential Write CDM: Up to 1,050MB/s
  • Max Random Write QD32 IOMeter: Up to 240K IOPS
  • Max Random Read QD32 IOMeter: Up to 180K IOPS
  • Form Factor: M.2 2280
  • Dimension: 80mm x 22mm x 3mm
  • Application Consumer: Client
SSD Unformatted Capacity

240 GB
SSD Smart Support

Yes
Weight

0.055kg
SSD Interface

PCIe Gen 3.0 x4
SSD Max Sequential Read CDM

Up to 3,100MB/s
SSD Max Sequential Write CDM

Up to 1,050MB/s
Max Random Write QD32 IOMeter

Up to 240K IOPS
Max Random Read QD32 IOMeter

Up to 180K IOPS
Form Factor

M.2 2280
Dimension

80mm x 22mm x 3mm
Application Consumer

Client

NAND Technology

3D TLC NAND
Voltage

3.3V, +/- 5%
Endurance

400 TBW
MTBF

1,800,000 Hours
DEVSLP

L1.2 < 2mW
Encryption

AES 256-bit Encryption
Storage Temperature

-40°C to +85°C
SSD Operating Temperature

0°C to +70°C
SSD Shock

1500 G
Storage Humidity

93% RH (40° C)
Operating Humidity

90% RH (40° C)
Vibration

20Hz~80Hz/1.52mm, 80Hz~2000Hz/20G
