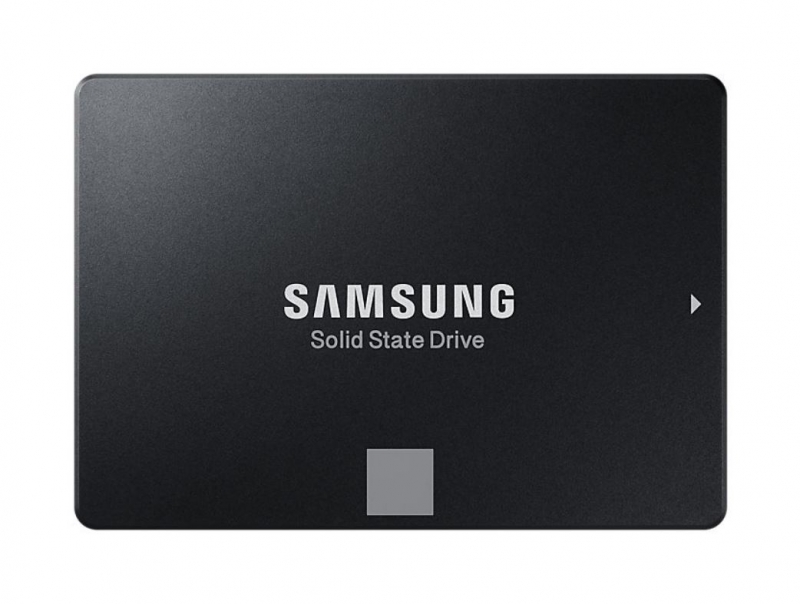

Samsung 500gb V-nand 2.5". 7mm Sata Iii 6gb/ S R/ W(max) 550mb/ S/ 520mb/ S 98k/ 90k Iops 300tbw

5 Years Warranty MZ-76E500BW
$109.00
SKU: 258206
MPN: MZ-76E500BW Link
Manufacturer: http://www.samsung.com/au/
Brand: Samsung
Warranty: 1 Year Manufacturer's return to base
Availability:

In stock

Fright Estimate
Add to Compare

The SSD to trust

The newest edition to the world’s best-selling* SATA SSD series, the Samsung 860 EVO. Specially designed for mainstream PCs and laptops, with the latest V-NAND and a robust algorithm-based controller, this fast and reliable SSD comes in a wide range of compatible form factors and capacities.

The SSD to trust

* Sources: NPD (US data from Jan. 2015 to Oct. 2017) and GfK (EU5 data from Jan. 2015 to Sep. 2017, China data from Jan. 2016 to Sep. 2017)

Enhanced performance

Speeds are more consistent, even with heavy workloads and multi-tasks. The 860 EVO performs at sequential writes up to 520 MB/s* with Intelligent TurboWrite technology, and sequential reads up to 550 MB/s. The TurboWrite buffer size* is upgraded from 12 GB to 78 GB for faster file transfer.

Enhanced performance

* Performance may vary based on SSD’s firmware version and system hardware & configuration. Sequential write performance measurements are based on Intelligent TurboWrite technology. Sequential performance measurements based on CrystalDiskMark v.5.0.2 and IOmeter 1.1.0. The sequential write performances after Intelligent TurboWrite region are 300 MB/s for 250/500 GB and 500 MB/s for 1 TB. * Test system configuration: Intel Core i5-3550 CPU @ 3.3 GHz, DDR3 1333 MHz 4 GB, OS – Windows 7 Ultimate x64, Chipset: ASUS P8H77-V * The TurboWrite buffer size varies based on the capacity of the SSD‡ 12 GB for 250 GB model, 22 GB for 500 GB model, 42 GB for 1 TB model and 78 GB for 2/4 TB. For more information on the TurboWrite, please visit www.samsungssd.com.

Boosted endurance

Safely store and render large sized 4K videos and 3D data used by the latest applications, up to 8x higher TBW (Terabytes Written)* than the previous 850 EVO. The latest V-NAND technology gives you up to 2,400 TBW, or is backed by a 5-year limited warranty.*

Boosted endurance

* Warrantied TBW for 860 EVO: 150 TBW for 250 GB model, 300 TBW for 500 GB model, 600 TBW for 1 TB model, 1,200 TBW for 2 TB model and 2,400 TBW for 4 TB model. * 5-years or TBW, whichever comes first. For more information on the warranty, please find the enclosed warranty statement in the package

Smart compatibility

Benefit from faster, more fluid communication with your host system. The refined ECC* algorithm and a new MJX controller generate higher speeds, and the improved queued trim enhances Linux compatibility. Our advanced engineering makes the 860 EVO more compatible with your computing system.

Smart compatibility

* Error Correction Code

Multi form factors

Whatever size your computer needs, there is an 860 EVO for you. Choose among the 2.5-inch size for desktop PCs and laptops, and the SATA-based M.2 (2280) or the mSATA for ultra-slim computing devices.

Multi form factors

Samsung Magician

Management software

Samsung Magician software is designed to help you manage your SSD with a simple and intuitive user interface.



Firmware update

Get notifications when new firmware is released, and easily install updates for enhanced performance, stability, and compatibility.



Perf. benchmark

Check your SSD†s sequential and random read/write speeds, so you can maintain superb performance.



Data security

Protect data by selecting security options. The 860 EVO supports AES 256-bit hardware-based encryption and is compliant with TCG Opal and IEEE 1667.


  • Client PCsApplication
  • SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interfaceInterface
  • 100 X 69.85 X 6.8 (mm)Dimension (WxHxD)
  • Max 62.0 g WeightWeight
  • Up to 550 MB/s Sequential Read * Performance may vary based on system hardware & configurationPerformance
  • Up to 520 MB/s Sequential Write * Performance may vary based on system hardware & configurationSequential Write
  • General Feature
    • ApplicationClient PCs
    • Capacity250 GB (1 GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
    • Form Factor2.5 inch
    • InterfaceSATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface
    • Dimension (WxHxD)100 X 69.85 X 6.8 (mm)
    • WeightMax 50.0 g Weight
    • NAND TypeSamsung V-NAND 3bit MLC
    • ControllerSamsung MJX Controller
    • Cache MemorySamsung 512 MB Low Power DDR4 SDRAM
  • Special Feature
    • TRIM SupportTRIM Supported
    • S.M.A.R.T SupportS.M.A.R.T Supported
    • GC (Garbage Collection)Auto Garbage Collection Algorithm
    • Encryption SupportAES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
    • WWN SupportWorld Wide Name supported
    • Device Sleep Mode SupportYes
  • Performance
    • Sequential ReadUp to 550 MB/s Sequential Read * Performance may vary based on system hardware & configuration
    • Sequential WriteUp to 520 MB/s Sequential Write * Performance may vary based on system hardware & configuration
    • Random Read (4KB, QD32)Up to 98,000 IOPS Random Read * Performance may vary based on system hardware & configuration
    • Random Write (4KB, QD32)Up to 90,000 IOPS Random Write * Performance may vary based on system hardware & configuration
    • Random Read (4KB, QD1)Up to 10,000 IOPS Random Read * Performance may vary based on system hardware & configuration
    • Random Write (4KB, QD1)Up to 42,000 IOPS Random Write * Performance may vary based on system hardware & configuration
  • Environment
    • Power Consumption*Average: 2.2 W*Maximum: 4.0 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
    • Reliability (MTBF)1.5 Million Hours Reliability (MTBF)
    • Operating Temperature0 - 70 ℃ Operating Temperature
    • Shock1,500 G & 0.5 ms (Half sine)
  • Software
    • Management SWMagician Software for SSD management
  • Installation KitNot Available
  • Warranty5 Years Limited Warrantyor 150 TBW Limited Warranty
500GB, Samsung V-NAND, 2.5". 7mm, SATA III 6GB/s, R/W(Max) 550MB/s/520MB/s, 98K/90K IOPS, 300TBW, 5 Years Warranty

he newest edition to the world’s best-selling* SATA SSD series, the Samsung 860 EVO. Specially designed for mainstream PCs and laptops, with the latest V-NAND and a robust algorithm-based controller, this fast and reliable SSD comes in a wide range of compatible form factors and capacities.

Speeds are more consistent, even with heavy workloads and multi-tasks. The 860 EVO performs at sequential writes up to 520 MB/s* with Intelligent TurboWrite technology, and sequential reads up to 550 MB/s. The TurboWrite buffer size* is upgraded from 12 GB to 78 GB for faster file transfer.

Safely store and render large sized 4K videos and 3D data used by the latest applications, up to 8x higher TBW (Terabytes Written)* than the previous 850 EVO. The latest V-NAND technology is backed by a 5-year limited warranty.*
