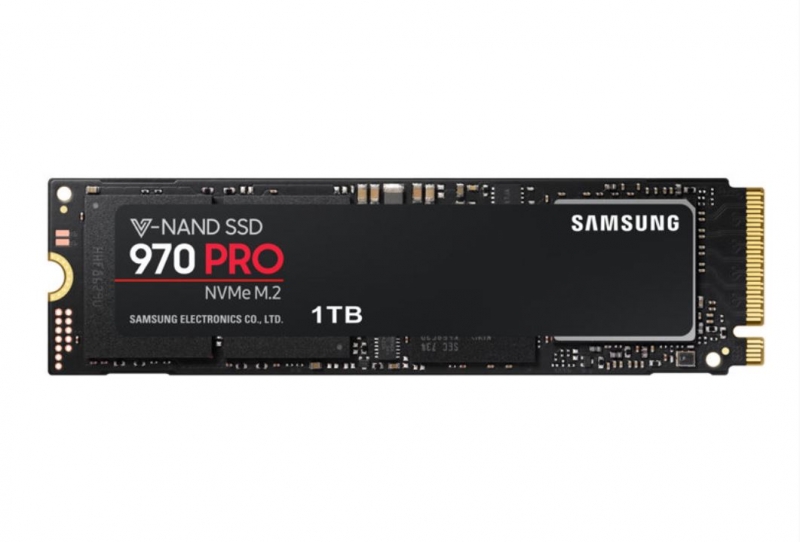

main product photo

Samsung 970 Pro M.2 1tb Tb 64l 3-bit Mlc V-nand (2280) Nvme R/ W(max) 3 400mb/ S/ 2 500mb/ S 500k/

450K IOPS 600TBW 5 Years Warranty - MZ-V7P1T0BW MZ-V7P1T0BW
$474.00
SKU: 264920
MPN: MZ-V7P1T0BW Link
Manufacturer: https://www.samsung.com/au/
Brand: Samsung
Warranty: 1 Year Manufacturer's return to base
Availability:

In stock

Fright Estimate
Add to Compare

The SSD that goes beyond
　

Experience the best. For intensive workloads on PCs and workstations, the 970 PRO delivers ultimate performance powered by Samsung's NVMe SSD leadership. The latest V-NAND technology and new Phoenix controller in a compact M.2 (2280) form factor meets the  needs of the most demanding tech enthusiasts and professionals.
　

　
The SSD that goes beyond

Fearless Performance
　

Performance that puts you in command. The 970 PRO combines the next-gen PCIe Gen 3x4 NVMe interface with the latest V-NAND technology and a newly enhanced Phoenix controller to achieve fearless read/write speeds up to 3,500/2,700 MB/s*, approximately 30 percent faster than the previous generation.
　

* Sequential and random performance measurements are based on IOmeter 1.1.0. Performance may vary based on the SSD's firmware version, system hardware and configuration.

* Test system configuration: Intel® Core i7-7700K CPU@4.2GHz, DDR4 2400MHz 32GB, OS-Window 10 Built 10240, Chipset-ASUS PRIME Z270-A
　
Fearless Performance
Exceptional Endurance

Exceptional Endurance
　

Get the ultimate sustainable performance. The 970 PRO delivers up to 1,200 TBW* with a 5-year limited warranty, achieving 50 percent greater endurance than the previous generation, all powered by the latest V-NAND technology.
　

* TBW: Terabytes Written

* Warrantied TBW for 970 PRO: 600 TBW for 512GB model, 1,200 TBW for 1TB model.

* 5-years or TBW, whichever comes first. For more information on the warranty, please find the enclosed warranty statement in the package.
　

Unparalleled Reliability
　

Achieve a new level of drive confidence. Samsung’s advanced nickel-coated controller and heat spreader on the 970 PRO enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimize performance drops.
　

　
Unparalleled Reliability

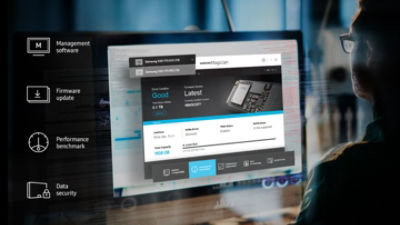

Samsung Magician
　

Advanced drive management made simple. Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health and speed, and even boost performance.
　

　
Samsung Magician

Type
Series
SSD 970 PRO
Usage Application
Client PCs
Interface
PCIe Gen 3.0 x4, NVMe 1.3
Storage
Capacity
1TB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Key Features
Sequential Read Speed
Up to 3,500 MB/s * Performance may vary based on system hardware & configuration
Sequential Write Speed
Up to 2,700 MB/s * Performance may vary based on system hardware & configuration
Random Read Speed
Random Read (4KB, QD32): Up to 500,000 IOPS Random Read
Random Read (4KB, QD1): Up to 15,000 IOPS Random Read
* Performance may vary based on system hardware & configuration
Random Write Speed
Random Write (4KB, QD32): Up to 500,000 IOPS Random Write
Random Write (4KB, QD1): Up to 55,000 IOPS Random Write
* Performance may vary based on system hardware & configuration
Controller
Samsung Phoenix Controller
NAND Flash
Samsung V-NAND 2-bit MLC
Trim Support
Supported
AES Encryption
AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
S.M.A.R.T. Support
Supported
GC (Garbage Collection)
Auto Garbage Collection Algorithm
Device Sleep Mode Support
Yes
Internal Storage
Yes
Temperature proof
Yes
NVMe
Yes
Gaming SSDs
Yes
General
Average Power Consumption (system level)
* Average: 5.7 W
* Maximum: 8.5 W (Burst mode)
* Actual power consumption may vary depending on system hardware & configuration
Power consumption (Idle)
Max. 30 mW
* Actual power consumption may vary depending on system hardware & configuration
Voltage
3.3 V ± 5 % Allowable voltage
Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)
Environmental Specs
Operating Temperature
0 - 70 ℃ Operating Temperature
Shock
1,500 G & 0.5 ms (Half sine)
Form Factor
Product
M.2 (2280)
Dimensions (W x D x H)
Product
3.16" x 0.09" x 0.87"
Weight
Product
Max 0.28oz.
Software
Management SW
Magician Software for SSD management
Warranty
Product
5-Year Limited Warranty or 600 TBW Limited Warranty

Samsung 970 PRO 1TB, 64L 2-bit MLC V-NAND, M.2 (2280), NVMe, R/W(Max) 3,500MB/s/2,700MB/s, 500K/500K IOPS, 1,200TBW, 5 Years Warranty

Replace Samsung SSD 960 PRO M.2 2TB MZ-V6P2T0BW

General Feature
Application
Client PCs
Capacity
1,024GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Form Factor
M.2 (2280)
Interface
PCIe Gen 3.0 x4, NVMe 1.3
Dimension (WxHxD)
80.15 x 22.15 x 2.38 (mm)
Weight
Max 8.0 g Weight
Storage Memory
Samsung V-NAND 2-bit MLC
Controller
Samsung Phoenix Controller
Cache Memory
Samsung 1GB Low Power DDR4 SDRAM
Special Feature
TRIM Support
Supported
S.M.A.R.T Support
Supported
GC (Garbage Collection)
Auto Garbage Collection Algorithm
Encryption Support
AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
WWN Support
Not supported
Device Sleep Mode Support
Yes
