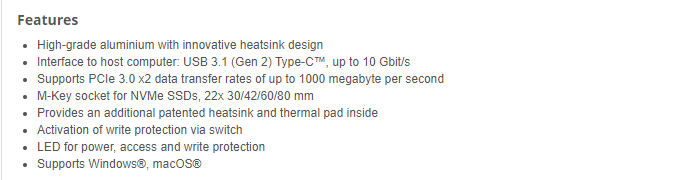

Features

• High-grade aluminium with innovative heatsink design
• Interface to host computer: USB 3.1 (Gen 2) Type-C™, up to 10 Gbit/s
• Supports PCIe 3.0 x2 data transfer rates of up to 1000 megabyte per second
• M-Key socket for NVMe SSDs, 22x 30/42/60/80 mm
• Provides an additional patented heatsink and thermal pad inside
• Activation of write protection via switch
• LED for power, access and write protection
• Supports Windows®, macOS®

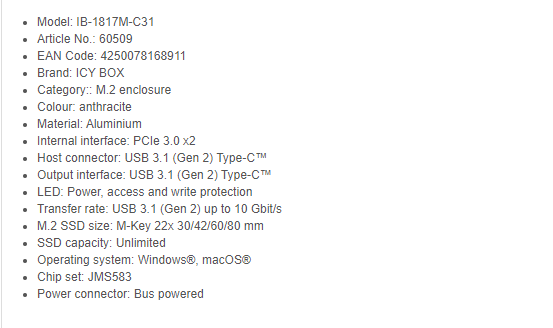

Technical Data

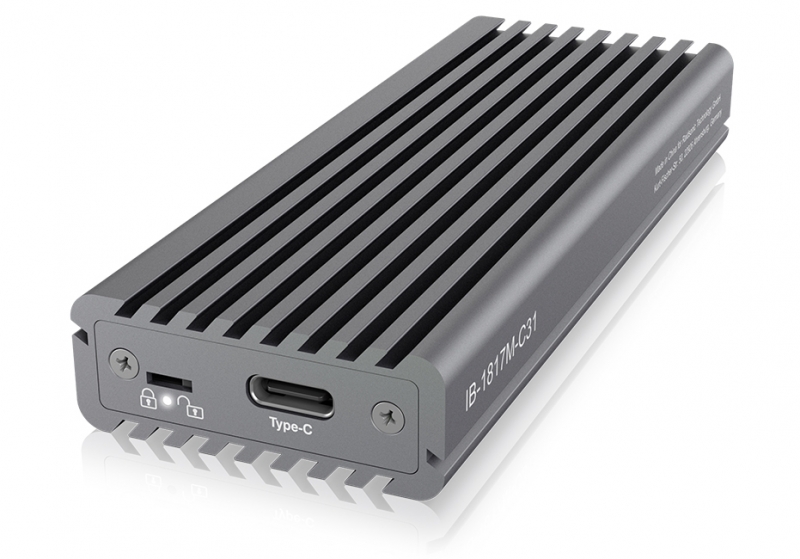

• Model: IB-1817M-C31
• Article No.: 60509
• EAN Code: 4250078168911
• Brand: ICY BOX
• Category:: M.2 enclosure
• Colour: anthracite
• Material: Aluminium
• Internal interface: PCIe 3.0 x2
• Host connector: USB 3.1 (Gen 2) Type-C™
• Output interface: USB 3.1 (Gen 2) Type-C™
• LED: Power, access and write protection
• Transfer rate: USB 3.1 (Gen 2) up to 10 Gbit/s
• M.2 SSD size: M-Key 22x 30/42/60/80 mm
• SSD capacity: Unlimited
• Operating system: Windows®, macOS®
• Chip set: JMS583
• Power connector: Bus powered
