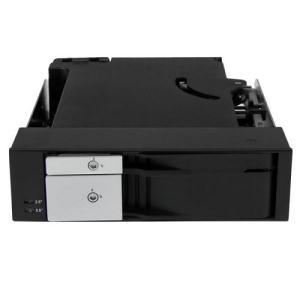

Startech Dual Bay 5.25 Trayless Hot Swap Mobile Rack Backplane For 2.5 And 3.5 Sata/sas Hdd Or
| SKU: | 223620 |
|---|---|
| MPN: | HSB2535SATBK Link |
| Manufacturer: | http://www.startech.com/au |
| Brand: | Startech |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
Preorder 2-3 weeks |
| Fright Estimate |
Description
Specifications
| Hardware | |
| Front Door Key Lock | Yes |
| Interface | SATA |
| Number of 2.5 inch bays | 1 |
| Number of Drives | 2 |
| Number of internal 3.5 inch bays | 1 |
| Indicators | |
| LED Indicators | 2.5" HDD/SSD Activity LED |
| 3.5" HDD Activity LED | |
| Packaging Information | |
| Shipping (Package) Weight | 0.7 kg [1.6 lb] |
| Performance | |
| Insertion Rating | 10,000 |
| Max Drive Capacity | Currently tested with up to 4TB 7200 RPM hard drives (3.5") Currently tested with up to 1TB 7200 RPM hard drives (2.5") |
| Maximum Data Transfer Rate | 6 Gbit/s |
| Type and Rate | SATA III (6 Gbps) |
| Physical Characteristics | |
| Product Height | 42 mm [1.7 in] |
| Product Length | 148 mm [5.8 in] |
| Product Weight | 536 g [18.9 oz] |
| Product Width | 182.6 mm [7.2 in] |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | 18" SATA Cable |
| 2.5/3.5in SATA HDD Backplane | |
| Bay Key | |
| Installation Screw kit | |
| Instruction Manual | |
| Molex LP4 to SATA Power Adapter Cable | |
| Hardware | |
| Fans | 50 mm |
| Fan(s) | Yes |
| Fan Bearing Type | Ball Bearing |
| Drive Size | 2.5in & 3.5in |
| Drive Installation | Removable |
| Compatible Drive Types | SAS & SATA |
| Environmental | |
| Storage Temperature | -20?C to 50?C (-4?F to 122?F) |
| Operating Temperature | -5?C to 35?C (23?F to 95?F) |
| Humidity | 20%RH ~ 80%RH |
| Connector(s) | |

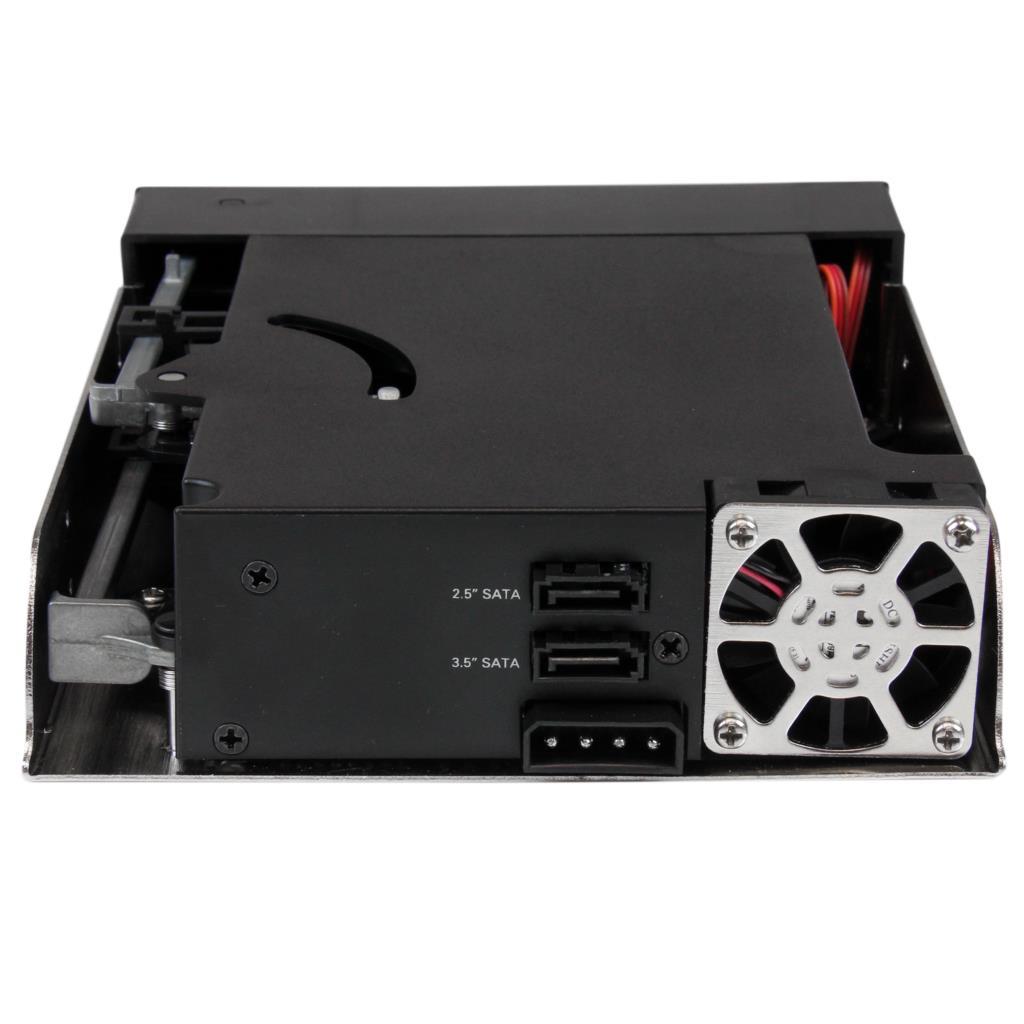

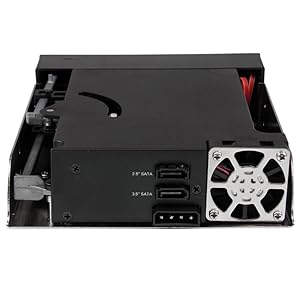

| Host Connectors | SATA (7 pin, Data) Receptacle |
| LP4 (4 pin, Molex Large Drive Power) Male | |
| Drive Connectors | SFF-8482 (29 pin, Data & Power, Internal SAS) Receptacle |
Vendor Info

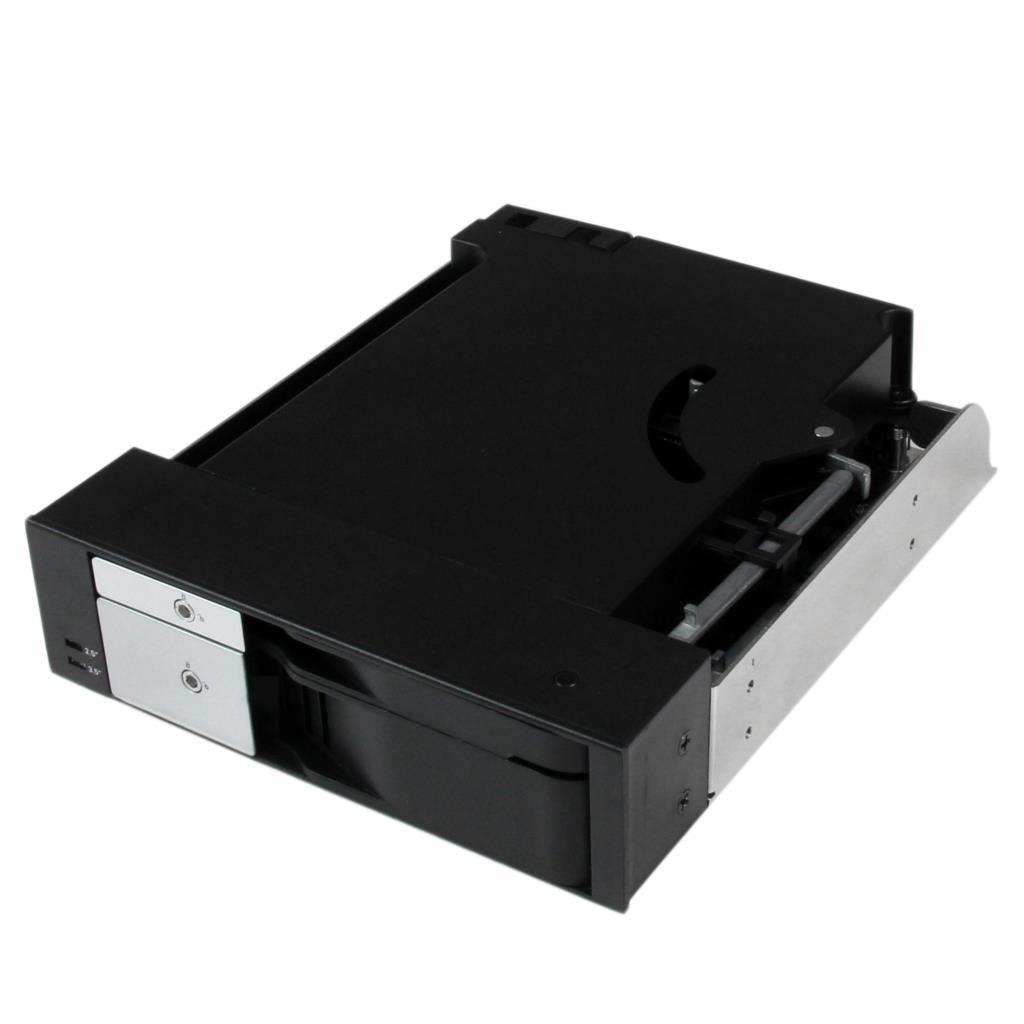

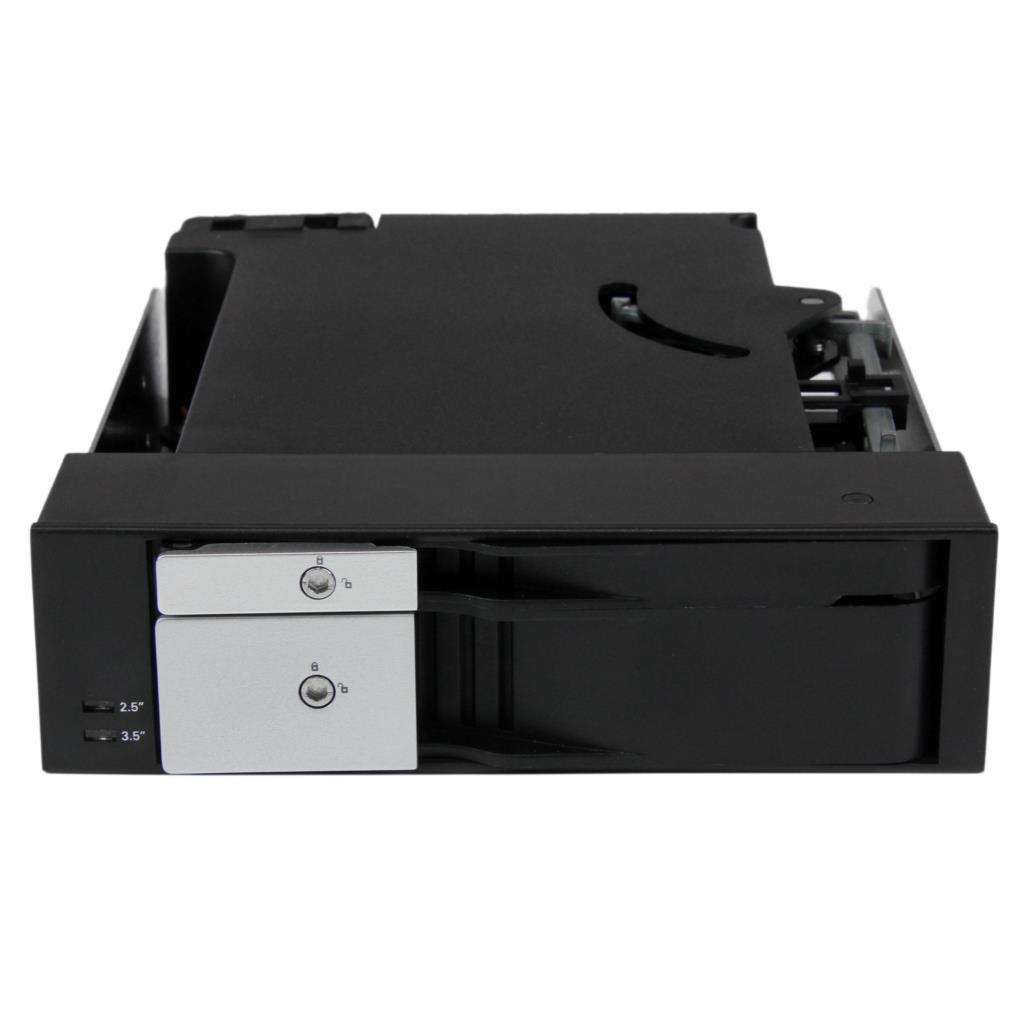

The HSB2535SATBK Removable 2-drive backplane lets you quickly install and hot-swap drives from the front of your computer, by turning a 5.25" bay into a hot-swappable SATA/SAS interface for you to connect a 3.5” SATA hard drive (HDD) and/or a 2.5” SATA hard drive or solid state drive (SSD).

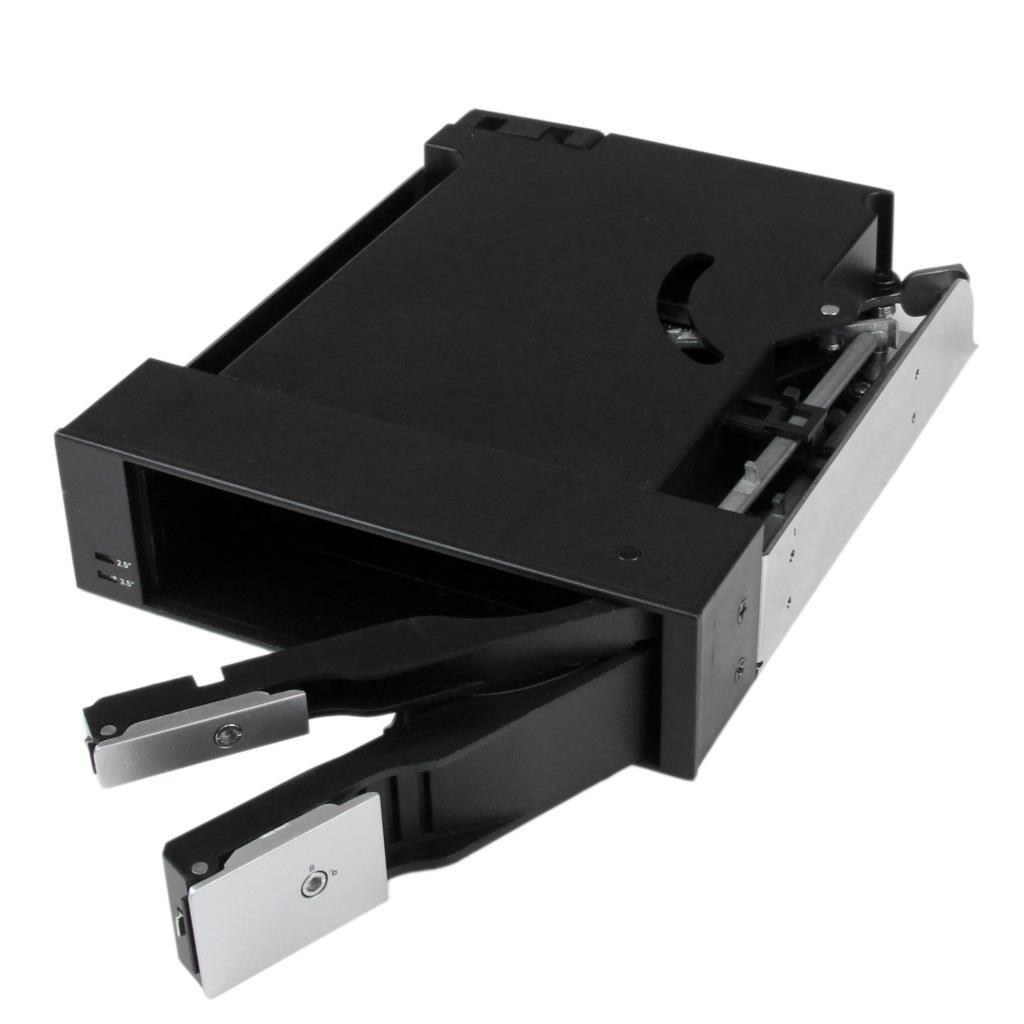

The hard drive bay interfaces with SATA/SAS, offering two trayless hard drive bays and can be mounted into any 5.25" front bay, to provide a hot-swappable mobile rack. The bays feature ejection levers which allow drives to be installed and removed quickly from the computer system, providing a convenient way to create backups that can then be removed for safekeeping, archiving, or external portable access.
For added versatility the backplane provides support for both SATA and SAS interfaces, an ideal accommodation for enterprise system integration. Plus, to help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan and slotted aluminum enclosure.
The HSB2535SATBK is backed by a StarTech.com 2-year warranty and free lifetime technical support.
