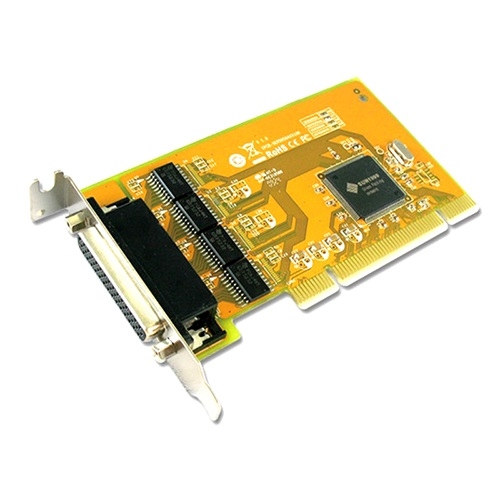

Sunix Ser5056Al Pci 4-Port Serial Rs-232 Card - Low Profile Ser5056Al
$105.00
| SKU: | 273649 |
|---|---|
| MPN: | SER5056AL Link |
| Manufacturer: | http://www.sunix.com |
| Brand: | Sunix |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
In stock |
| Fright Estimate |
Description
▼
Specifications
▼
Specifications
Description | |
| Product Description | 4-port RS-232 Universal PCI Low Profile Serial Board |
Serial Communication | |
| Interface | RS-232 |
| Controller | SUNIX SUN1999 (16C950 UART Compatible) |
| Bus | Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1 |
| No. of Port | 4-port |
| IRQ & IO | Assigned by System |
| FIFO | 128 byte (Hardware) |
| Signal | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI |
| Baud rate | 50 bps to 115.2 Kbps |
| Data bit | 5,6,7,8 |
| Stop bit | 1,1.5,2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | None, Xon/Xoff, RTS/CTS |
| Protection | ±2KV ESD protection for each signal Human Body Model (HBM) |
| PCB connector | DB44 Female |
Driver Support | |
| Windows Client | XP / Vista / 7 / 8.x / 10 (X86/X64) |
| Windows Server | 2003 / 2008 / 2012 / 2016 (X64) |
| Windows Embedded | Windows XP Embedded / POSReady 2009 / POSReady / Embedded System 2009 |
| Linux | Linux 2.x / 3.x / 4.x |
| DOS | DOS |
| FreeBSD | FreeBSD 5.3~5.5 / 6.0~6.4 |
| QNX | QNX 6.3.2/6.4.0 |
| * IBM OS/2 | WARP 3/WARP 4 |
| * SCO UnixWare | UnixWare 7.1.3/7.1.4/ Open Server 5.0.7/6.0 |
| * Sun Microsystems | Solaris 10 |
| Note : “ * ” Supported by special inquiry. | |
Regulatory Approvals | |
| Hardware | EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, RoHS |
| Software | Microsoft WHQL Windows • Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64) • Windows Server: 2003 / 2008 / 2012 / 2016 (X64) |
Environment | |
| Operation Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5 to 95% RH |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
Dimension | |
| PCB Dimension | 120 x 68 mm |
| Bracket | Low Profile 80 mm |
| Bracket Space | 1 |
