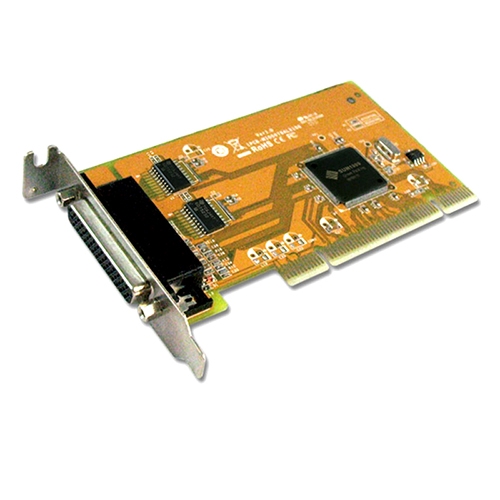

Sunix Mio5079al Pci 2-port Serial Rs-232 And 1-port Parallel Ieee1284 Card - Low Profile Mio5079al
| SKU: | 269678 |
|---|---|
| MPN: | MIO5079AL Link |
| Manufacturer: | http://www.sunixusa.com/ |
| Brand: | Sunix |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
In stock |
| Fright Estimate |
Description
- Expands 2-port RS-232 COM and 1-port IEEE1284 LPT on system.
- Universal PCI compatible with 64/32-bit PCI-X/PCI Bus and 3.3/5V connector key.
- High reliability SUNIX SUN1989 16C950 compatible Multi-IO controller on-board.
- Expands two RS-232 serial port with communication speed up to 115.2Kbps.
- On-chip hardware auto flow control to guarantee no data loss.
- Built-in ±2KV ESD protection for all serial signals.
- Support IEEE 1284-1994 parallel port standard
* ECP(Enhance Capacity Port) / EPP(Enhance Parallel Port)
* SPP(Standard Parallel Port) / BPP(Bi-direction Parallel Port) - Auto-switching between ECP/EPP/SPP/BPP modes without configuration.
- Plug-n-Play, I/O address and IRQ assigned by system.
- Low profile bracket design idea for slim or portable PC.
- Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
- Support Microsoft Windows, Linux, and DOS.
Introduction
The majority of today´s motherboards are not equipped with any RS-232 or parallel port. With SUNIX MIO5079AL Multi I/O board, users can expand two RS-232 and one IEEE1284 parallel ports to their system, allowing them to use serial and parallel devices further. SUNIX MIO5079AL is compatible with both 32/64-bit PCI architecture supporting 3.3 and 5V Bus, allowing the board to be installed in any slim size PC-based system with low profile bracket structure. Furthermore, SUNIX MIO5079AL Multi-IO card supports majority of the OS on the market. We provide driver support for Microsoft Windows 32/64-bit platform, Linux, making it the best and most economical solution for commercial and industrial applications.
Specifications
Specifications
Description | |
| Product Description | 2-port RS-232 & 1-port Parallel Universal PCI Low Profile Multi-I/O Board |
General | |
| Interface | RS-232 and IEEE1284 |
| Controller | SUNIX SUN1989 (16C950 UART Compatible) |
| Bus | Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1 |
| IRQ & IO | Assigned by System |
Serial Communication | |
| Interface | RS-232 |
| No. of Port | 2-port |
| FIFO | 128 byte (Hardware) |
| Signal | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI |
| Baud rate | 50 bps to 115.2 Kbps |
| Data bit | 5,6,7,8 |
| Stop bit | 1,1.5,2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | None, Xon/Xoff, RTS/CTS |
| Protection | ±2KV ESD protection for each signal Human Body Model (HBM) |
| PCB connector | DB44 Female |
| Cable Connector | DB9 Male |
Parallel Communication | |
| Interface | IEEE1284 |
| No. of Port | 1-port |
| FIFO | 16 byte (Hardware) |
| Signal | SPP/ECP/EPP/BPP |
| Speed | Maximum 1.8MBps |
| PCB connector | DB44 Female |
| Cable Connector | DB25 Female |
Driver Support | |
| Windows Client | XP / Vista / 7 / 8.x / 10 (X86/X64) |
| Windows Server | 2003 / 2008 / 2012 / 2016 (X64) |
| Windows Embedded | Windows XP Embedded / POSReady 2009 / POSReady / Embedded System 2009 |
| Linux | Linux 2.x / 3.x / 4.x |
| DOS | DOS |
Regulatory Approvals | |
| Hardware | EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, RoHS |
| Software | Microsoft WHQL Windows • Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64) • Windows Server: 2003 / 2008 / 2012 / 2016 (X64) |
Environment | |
| Operation Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5 to 95% RH |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
Dimension | |
| PCB Dimension | 120 x 63 mm |
| Bracket | Low Profile 80 mm |
| Bracket Space | 1 |
