Startech 8 Port Unmanaged Industrial Gigabit Power Over Ethernet Switch802.3af/at Poe+ Switchwall Mountablepoe Network Switchgigabit Poe Switc Ies81000poe
| SKU: | 230521 |
|---|---|
| MPN: | IES81000POE Link |
| Manufacturer: | https://www.startech.com/ |
| Brand: | Startech |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
In stock |
| Fright Estimate |
Description

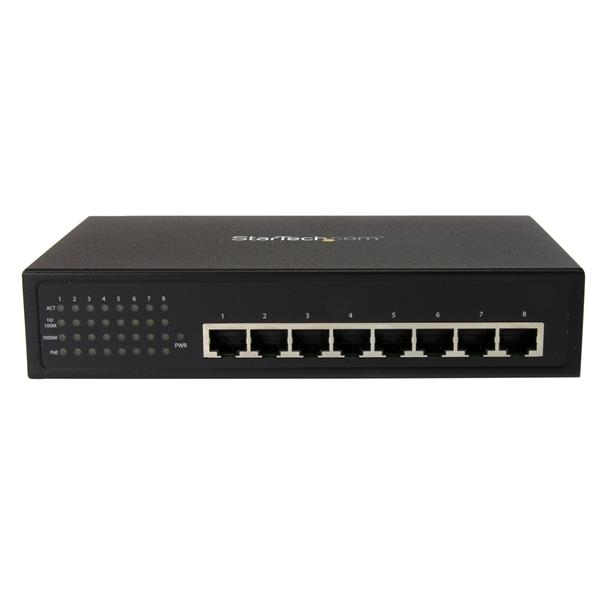

The IES81000POE 8-Port Gigabit Power over Ethernet Switch lets you connect Gigabit Ethernet and power to up to eight PoE-enabled devices, or a mixture of PoE and non-PoE components.
Giving you the freedom to place your equipment in locations where power outlets are not available, this PoE+ switch complies with IEEE 802.3af and 802.3at standards and supplies up to 30 W per port, with a total power budget of 120 W.
A true unmanaged switching solution, the 8 PSE (Power Sourcing Equipment) ports sense whether the connected devices are PoE-ready or require data connectivity only, and also auto-negotiate between 10/100/1000 Mbps network speed and duplex.
The Gigabit Ethernet switch features a sturdy, wall-mountable metal enclosure for durability, and front panel LEDs for quick indication of connection speed and status.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Position your network devices where power outlets aren’t available, with 30 Watts per-port from the switch
- Reduce expenses by using existing standard Cat5/5e/6 Ethernet cabling to deliver power and data
- Provides durable performance in harsh environments with a sturdy steel construction
Specifications
| Connector(s) | |
| Connector Type(s) | RJ-45 Female |
| Environmental | |
| Humidity | 10~90% RH (Non-Condensing) |
| Operating Temperature | 0?C to 55?C (32?F to 131?F) |
| Storage Temperature | -20?C to 90?C (-4?F to 194?F) |
| Hardware | |
| Industry Standards | IEEE 802.3at/af Power Over Ethernet, IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-TX, IEEE 802.3x Flow Control |
| Ports | 8 |
| Indicators | |
| LED Indicators | 10/100 Mbps |
| 1000 Mbps | |
| Activity | |
| PoE | |
| Power | |
| Packaging Information | |
| Shipping (Package) Weight | 1.8 kg [3.9 lb] |
| Performance | |
| Auto MDIX | Yes |
| Buffer Size | 128 KB |
| Compatible Networks | 10/100/1000 Mbps |
| Flow Control | Half-duplex back-pressure and IEEE802.3x full-duplex |
| Full Duplex Support | Yes |
| Maximum Data Transfer Rate | 2 Gbps (Full-Duplex) |
| Switching Architecture | Store-and-Forward |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Height | 38 mm [1.5 in] |
| Product Length | 188 mm [7.4 in] |
| Product Weight | 750 g [26.5 oz] |
| Product Width | 119 mm [4.7 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 2 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 2.31 A |
| Output Voltage | 52 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 120 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | OS Independent; No additional drivers or software required |
| Special Notes / Requirements | |
| Patents and Licenses | The following patents are licensed for this product. This list might not be all inclusive. ? United States Patent No. 5,406,260 (expired) ? United States Patent No. 6,650,622 ? United States Patent No. 7,457,250 ? United States Patent No. 8,155,012 ? United States Patent No. 8,902,760 ? United States Patent No. 8,942,107 ? United States Patent No. 9,019,838 ? United States Patent No. 9,049,019 ? United States Patent Application No. 14/695,456 ? United States Patent Application No. 14/726,940 |
| What's in the Box | |
| Included in Package | 8 Port Gigabit PoE Switch |
| Instruction Manual | |
| Set, Rubber Feet | |
| Universal Power Adapter (NA/JP, EU, UK, ANZ) | |
| Wallmount Brackets | |
