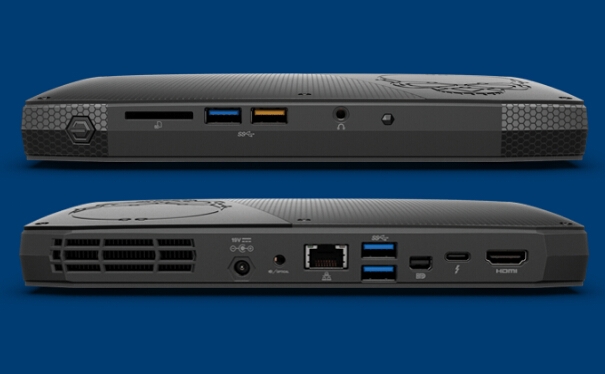

INTEL NUC KIT BOXNUC6I7KYK + AU POWER CORD BOXNUC6I7KYK-C5

$762.00
SKU: 220577
MPN: BOXNUC6I7KYK-C5 Link
Manufacturer: http://www.intel.com.au/content/www/au/en/homepage.html
Brand: Intel
Warranty: 1 Year Manufacturer's return to base
Availability:

Preorder 2-3 weeks
Fright Estimate
Add to Compare
SMALL DEVICE. BIG PERFORMANCE

The Intel® NUC Mini PC re-imagines the desktop PC into a pint-sized package so that you can work, play, create, entertain, and inspire in any room.

Customized Computing

The Intel® NUC kit includes a customizable board and chassis that are ready to accept the memory, hard drive, and operating system of your choice.

Features and Configurations

　

Processor 6th generation Intel® Core™ i7-6770HQ processor with Intel® Iris™ Pro graphics (2.6 to 3.5 GHz Turbo, Quad Core, 6 MB Cache, 45W TDP)
Memory Dual channel DDR4-2133+ SODIMMs
1.2/1.35V, 32 GB maximum
Graphics Intel® Iris™ Pro Graphics 580
1x HDMI* 2.0 (4K 60 Hz)
1x Mini DisplayPort* 1.2 (4K 60 Hz)
1x DisplayPort* 1.2 via Type-C
Audio Up to 7.1 multichannel digital audio via HDMI or DisplayPort signals
3.5mm front headset jack, 3.5mm rear speaker/TOSLINK combo jack
Peripheral Connectivity Thunderbolt™ 3 (40 Gbps) or USB 3.1 Gen2 (10 Gbps) via USB Type C connector
2x front USB 3.0 (one charging)
2x rear USB 3.0, 2x internal USB 3.0 and 2x internal USB 2.0 via header
Consumer infrared port on front panel
　
Storage 2x M.2 22x42/80 (key M) slots for SATA3 or PCIe* X4 Gen3 NVMe or AHCI SSDs
SDXC slot with UHS-I support
Networking Intel® I219-LM 10/100/1000 Mbps Ethernet
Intel® Dual Band Wireless-AC 8260 soldered-down, (IEEE 802.11ac 2x2, Bluetooth* 4.2, internal antennas, Intel® Wireless Display 6.0)
Enclosure Metal and plastic with replaceable lid
Dimensions: 211 mm x 116 mm x 28 mm
Power Adapter 19V, 120W  AC-DC power adapter
Additional Features Support for user-replaceable third party lids
NFC header
OS certs: Microsoft Windows® 10, 8.1, 7 logo’d
OS compatibility: compatible with various Linux* distros
Kensington* lock with base security
3-year warranty
Included in the box

Intel® NUC Kit NUC6i7KYK integrated in enclosure:

  • Additional lid without skull on it
  • VESA* mount
  • 19V 120W power supply
  • Integration guide
  • Processor badge
