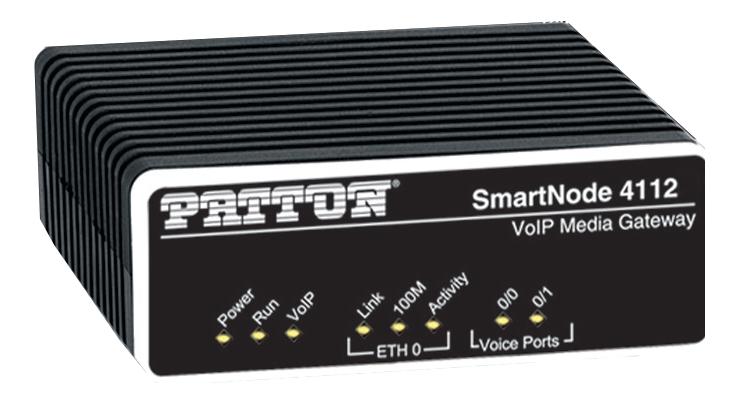

Patton Sn4112/ Jo Smartnode Dual Fxo Voip Gateway 1X10/ 100Baset H.323 And Sip External Power Sn4112/Jo
| SKU: | 284550 |
|---|---|
| MPN: | SN4112/JO Link |
| Manufacturer: | https://www.patton.com |
| Brand: | Patton |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
Preorder 2-3 weeks |
| Fright Estimate |
Description
• Up to 8 FXS and/or FXO ports
- Compact, reliable stand-alone VoIP gateway with different port options.
Supports simultaneous voice or fax calls on all ports.
• Advanced Local Call Switching
- Virtual interfaces and routing tables provide industry leading flexibility in
call handling programming. Local call switching, soft fallback to alternative
routes. Simultaneously connects to multiple SIP services/IP PBXs.
• Complete SIP and T.38 support
- Supports the complete range of industry standard VoIP: SIP, H.323, T.38 fax,
fax and modem handling, DTMF relay. Codecs G.729, G.723, etc.
• Easy Management & Provisioning
- Web-based management, SNMP, command line interface. Automated mass
provisioning for efficient large-scale deployments.
• Outstanding Interoperability
- Proven integration for voice and T.38 fax with 3CX®, Asterisk™, PingTel™ and
other leading IP PBX systems and soft switch vendors.
• Supported by SmartNode™ Redirection Service
Specifications
| Capacity | |
| • | Up to 8 simultaneous VoIP or T.38 fax calls (depending on the model) |
| Voice Signaling | |
| • | H.323v4, SIPv2 (B2BUA capable, multi-instance, simultaneous support of multiple registrars and direct IP dialing) |
| • | SIP call transfer, redirect |
| • | DTMF in-band & out-of-band |
| • | All tones programmable (dial, ringing, busy) |
| Voice Processing | |
| • | CODEC G.711 a-law/mu-law, G.723, G.729ab |
| • | G.726, G.727. T.38 fax relay (9.6 k, 14.4 k) |
| • | G.711 transparent fax and bypass |
| Call Switching and Services | |
| • | Virtual interfaces |
| • | Regular expression based call routing and number manipulation |
| • | Number blocking |
| • | Short-dialing |
| • | Digit collection, distribution and hunt groups |
| • | Transparent line extension |
| • | Fallback Routing: Soft fallback to alternative route(s) |
| FXS Connectivity | |
| • | 2-wire Loopstart on RJ-11/12 |
| • | Short haul loop 1.1km @3REN |
| • | EuroPOTS (ETSI EG201188) |
| • | Programmable AC impedance, feeding, ring and on-hook voltage |
| • | Caller-ID FSK and ITU V.23/Bell 202 generation |
| FXO Connectivity | |
| • | 2-wire Loopstart on RJ-11/12 |
| • | Programmable impedance, ring detection, tone detection, disconnect supervision |
| • | Caller ID detection |
| IP services | |
| • | One 10/100 Ethernet port |
| • | DHCP Client |
| • | Access Control Lists |
| • | Traffic Policing |
| • | IEEE 802.1p, TOS, DiffServ labeling |
| • | IEEE 802.1Q, VLAN tag insertion/deletion (simultaneous support of multiple VLANs) |
| • | IPSEC, IKE, AES/DES/3DES Encryption (optional) |
| Management | |
| • | Web/HTTP, CLI with local console and remote Telnet access |
| • | TFTP configuration & firmware loading |
| • | SNMP MIB II and product MIB |
| • | Secure Mass provisioning for both firmware and unit/subscriber configuration |
| • | Built-in diagnostic tools (trace, debug, call generator) |
| System | |
| • | CPU Motorola MPC870 @ 66MHz |
| • | Memory 32MB SDRAM/8MB Flash |
| • | Power 100–240 VAC (50/60 Hz) |
| • | Power dissipation 4-12W, model dependent |
| Environment | |
| • | Temp.: 32–122°F (0–50°C) |
| • | Humidity: Up to 90% (non condensing) |
