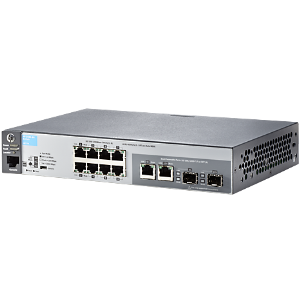

HP 2530-8G Switch (J9777A)

Overview

The HP 2530 Switches Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments. Fully managed switches deliver full Layer 2 capabilities with optional PoE+, 10GbE uplinks, enhanced access security, traffic prioritization, sFlow, IPv6 host support, and include Lifetime Warranty 2.0. The HP 2530 Switch Series is easy to use and deploy, and can be manages with the HP Intelligent Management Center (IMC) for a single view of your entire network.

Features

Cost-Effective, Reliable and Secure Access Layer Switches

The HP 2530 Switch Series provides secure, reliable and ease of use for enterprise edge, branch office, and SMB deployments.

Fully managed switches deliver full Layer 2 capabilities with optional PoE+, 10GbE uplinks, enhanced access security, traffic prioritization, sFlow, IPv6 host support, and include Lifetime Warranty 2.0.

Right size deployment with choice of 8, 24, and 48 port models available with Gigabit or Fast Ethernet ports, optional PoE+ and optional 10GbE uplinks.

Power savings with fanless models, Energy Efficient Ethernet (IEEE 802.3az), and ability to disable LEDs and enable port low power mode.

Lifetime Warranty 2.0 with 3 years 24x7 phone support and no software licensing required.

Security and Quality of Service

The HP 2530 Switch Series supports flexible authentication methods including 802.1X, MAC, and Web Authentication for greater security and policy-driven application authentication.

Advanced denial of service (DOS) protection, such as DHCP Protection, Dynamic ARP protection, and Dynamic IP lockdown, and flexible traffic controls include ACLs and QoS.

Traffic prioritization with IEEE 802.1p allows real-time traffic classification with support for eight priority levels mapped to either two or four queues; uses weighted deficit round robin (WDRR) or strict priority (SP).

Simple Deployment and Management

The HP 2530 Switch Series supports choice of management interface with Web GUI, command-line interface (CLI) and Simple Network Management Protocol (SNMP), using console or micro USB ports.

Quiet operation with fanless and variable speed fan models.

Flexible deployment with wall, table, and rack mounting options.

Single View of the Network

The HP 2530 Switch Series can be seamlessly managed with HP Intelligent Management Center (IMC) to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.

RMON, and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.

Specifications

Ports

8 RJ-45 autosensing 10/100/1000 ports
2 dual-personality ports
Included

Memory and processor
ARM9E @ 800 MHz; 128 MB flash; packet buffer size: 1.5 MB dynamically allocated; 256 MB DDR3 DIMM

Latency

100 Mb Latency: < 7.4 s
1000 Mb Latency: < 2.6 s

Throughput
14.8 Mpps

Switching capacity
20 Gb/s

Stacking capabilities

Virtual
16 switches

Management features

IMC - Intelligent Management Center
command-line interface
Web browser
configuration menu
out-of-band management (serial RS-232C or Micro USB)
IEEE 802.3 Ethernet MIB
Repeater MIB
Ethernet Interface MIB

Dimensions and weight

Minimum dimensions (W x D x H)
25.4 x 15.95 x 4.45 cm

Weight
0.91 kg

What's included

Differentiator
The HP 2530-8G Switch is a fully managed layer 2 switch with 8 10/100/1000 PoE+ ports and 2 dual personality ports.

What's in the box

(1) HP 2530-8G Switch

Warranty
Lifetime, advance replacement, next business day, phone support, software releases
