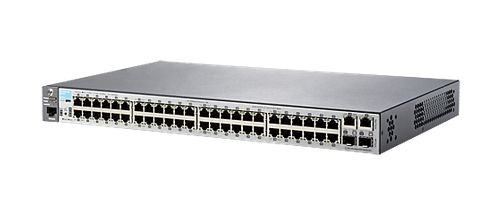

HP 2530-48 Switch (J9781A)

Overview

Features

Cost-Effective, Reliable and Secure Access Layer Switches

The HP 2530 Switch Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments.
Fully managed switches deliver full Layer 2 capabilities with optional PoE+, 10GbE uplinks, enhanced access security, traffic prioritization, sFlow, and IPv6 host support.
Right size deployment with choice of 8-, 24-, and 48-port models available with Gigabit or Fast Ethernet ports, optional PoE+, and optional 10GbE uplinks.
Power savings with fanless models, Energy Efficient Ethernet (IEEE 802.3az), and ability to disable LEDs and enable port low power mode.
Limited Lifetime Warranty 2.0 with 3 years 24x7 phone support and no software licensing required.

Security and Quality of Service (QoS)

The HP 2530 Switch Series supports flexible authentication methods including Local MAC, 802.1X, and MAC and Web for greater policy-driven application security.
Advanced denial of service (DOS) protection, such as DHCP Protection, Dynamic ARP protection, and Dynamic IP lockdown, enhance security. Flexible traffic controls include ACLs and QoS.
Traffic prioritization with IEEE 802.1p allows real-time traffic classification with support for eight priority levels mapped to either two or four queues using weighted deficit round robin (WDRR) or strict priority (SP).
Defend your IPv6 network with DHCPv6 Protection.

Simple Deployment and Management

The HP 2530 Switch Series supports a choice of management interfaces with Web GUI, command-line interface (CLI), and SNMP with either console or micro USB ports.
Quiet operation with fanless and variable speed fan models.
Flexible deployment with wall, table, and rack mounting options.
TR-069 delivers zero touch deployment for devices with dynamic IP addresses and on private networks.

Single View of the Network

The HP 2530 Switch Series can be seamlessly managed with HP Intelligent Management Center (IMC) to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.
RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.

Specifications

Differentiator

The HP 2530-48 Switch is a fully managed layer 2 switch with 48 10/100 ports, 2 10/100/1000 ports, and 2 GbE SFP slots.

Ports

(48) RJ-45 autosensing 10/100 ports
(2) autosensing 10/100/1000 ports
(2) fixed Gigabit Ethernet SFP ports

Memory and processor

ARM9E @ 800 MHz
128 MB flash
Packet buffer size: 3 MB dynamically allocated
256 MB DDR3 DIMM

Latency

100 Mb Latency: < 6.6 s
1000 Mb Latency: < 2.2 s

Throughput

up to 13 Mpps

Switching capacity

17.6 Gbps

Stacking capabilities

Virtual
16 switches

Management features

IMC - Intelligent Management Center
Command-line interface
Web browser
Configuration menu
Out-of-band management (serial RS-232c or micro usb)
IEEE 802.3 Ethernet mib
Repeater mib
Ethernet interface mib

Dimensions and weight

Minimum dimensions (W x D x H)
44.2 x 24.64 x 4.45 cm

Weight
2.86 kg

What's included

What's in the box

(1) HP 2530-48 Switch

Warranty

Limited Lifetime warranty: Advance hardware replacement with next-business-day delivery (available in most countries). See www.hp.com/networking/warrantysummary for duration details.
Electronic and telephone support: limited electronic and telephone support is available from HP- for details on the duration of support provided with your product purchase
refer to www.hp.com/networking/warrantysummary.
Software releases: for details on the software releases available with your product purchase
refer to www.hp.com/networking/warrantysummary.
