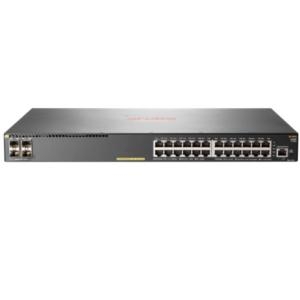

Hp Aruba 2930f 24g Poe+ 4sfp+ Switch 24 X Gig Poe+ Ports 4x Sfp+ Ports Lite L3 Life Wty Jl255a
$2,850.00
| SKU: | 237476 |
|---|---|
| MPN: | JL255A Link |
| Manufacturer: | http://www8.hp.com/au/en/ |
| Brand: | Hp |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
Preorder 2-3 weeks |
| Fright Estimate |
Description
▼
Specifications
▼
| I/O Expansions | |
|---|---|
| Expansion Slot Type: | SFP+ |
| Number of SFP+ Slots: | 4 |
| Number of Total Expansion Slots: | 4 |
| Shared SFP Slot: | No |
| Management & Protocols | |
|---|---|
| Manageable: | Yes |
| Media & Performance | |
|---|---|
| Ethernet Technology: | 10 Gigabit Ethernet |
| Gigabit Ethernet | |
| Media Type Supported: | Optical Fiber |
| Twisted Pair | |
| Network Technology: | 10/100/1000Base-T |
| 10GBase-X | |
| Miscellaneous | |
|---|---|
| Environmentally Friendly: | Yes |
| Network & Communication | |
|---|---|
| Layer Supported: | 3 |
| Physical Characteristics | |
|---|---|
| Compatible Rack Unit: | 1U |
| Depth: | 304.3 mm |
| Form Factor: | Desktop |
| Rack-mountable | |
| Height: | 43.9 mm |
| Weight (Approximate): | 3.90 kg |
| Width: | 442.5 mm |
| Power Description | |
|---|---|
| Power Source: | Power Supply |
Vendor Info
▼
| Marketing Text | The Aruba 2930F Switch Series is designed for customer creating digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These basic Layer 3 access switches are easy to deploy and manage with advanced security. |
| PI Date | Sep 2016 |
| Brand Name | HP |
| Manufacturer Web Site | http://www.hp.com |
| Form Factor | 1U |
| Product Model | 2930F 24G PoE+ 4SFP+ |
| Product Type | Ethernet Switch |
| Mac Address | 32768entries |
| Forwarding Rate | 95.2Mpps |
| Switching Fabric | 128Gbps |
| Jumbo Frame Size | 9220Bytes |
| Expansion Ports | 4 x SFP+ |
| Gigabit Ethernet Port | Yes |
| No. of Ports | 24 |
| Type | 10/100/1000 |
| Other Port | 1 x Console Port |
| Virtual LAN | * VLAN Support and Tagging: supports IEEE 802.1Q (4094 VLAN IDs) and 2K VLANs simultaneously * Rapid Per-VLAN Spanning Tree (RPVST+) |
| Management Features | * Aruba AirWave Network Management * IMC - Intelligent Management Center * Command-line interface * Web browser * Configuration menu * SNMP manager |
| Security Features | * Source-port filtering * RADIUS/TACACS+ * Secure shell * Secure Sockets Layer (SSL) * Port security * MAC address lockout |
| Standards | * IEEE 802.3 Type 10BASE-T * IEEE 802.3u Type 100BASE-TX * IEEE 802.3ab Type 1000BASE-T * IEEE 802.3at PoE+ |
| Quality of Service (QoS) | * Traffic prioritization (IEEE 802.1p) * Layer 4 prioritization * Rate limiting * Large buffers |
| Output Power | 370Watt |
| Depth (mm) | 304.2 |
| Height (mm) | 43.9 |
| Width (mm) | 442.5 |
| Weight (Kg) | 3.9 |
| Layer Support | 3 |
| Management | Managed |
| RAM Installed | 1GB |
| Flash Memory | 4GB |
| Network Technology | 10/100/1000 |
| Other Features | * Dual Core ARM Coretex A9 @ 1016 MHz * 4 GB eMMC * Routing table size: 10000 entries (IPv4), 5000 entries (IPv6) |
| PoE Enabled | Yes |
