Aten Usb Vga Kvm Cat5 Adapter - [ Old Sku: Ka7570 ] Ka7570-ax
| SKU: | 266700 |
|---|---|
| MPN: | KA7570-AX Link |
| Manufacturer: | https://www.aten.com/ |
| Brand: | Aten |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
Preorder 2-3 weeks |
| Fright Estimate |
Description

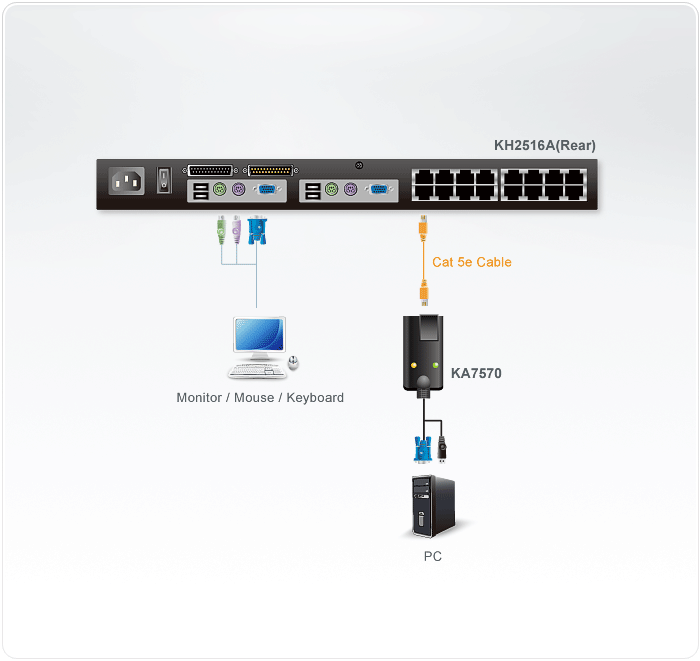

The KA7570 USB KVM Adapter Cable connects the KVM switch to the video and USB ports of the target computer. With its small form factor and light weight design, it fits perfectly into most of the rack-mount or desktop servers.
Package Contents
- 1x KA7570 USB KVM Adapter Cable (CPU Module)
- 1x Rack Mount Kit
- 1x Rack Mounting Guide
- Keyboard and mouse emulation - keeps your server functioning smoothly when it is disconnected from the switch's KVM port or relocated to different KVM port
- Lifetime firmware upgrades
- Superior video quality - supports resolution up to 1920 x 1200 (Reduced blanking)*
- Hot pluggable - add or remove computers without having to power down the switch.
- Compact size
Specifications
| Connectors | |
| Link | 1 x RJ-45 Female |
| Computer | 1 x USB Male 1 x HDB-15 Male |
| LEDs | |
| Online | 1 (Green) |
| Power | 1 (Orange) |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.15 kg ( 0.33 lb ) |
| Dimensions (L x W x H) | 9.00 x 4.30 x 2.18 cm (3.54 x 1.69 x 0.86 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Vendor Info
The KA7570 USB KVM Adapter Cable connects the KVM switch to the video and USB ports of the target computer. With its small form factor and light weight design, it fits perfectly into most of the rack-mount or desktop servers.
Keyboard and mouse emulation - keeps your server functioning smoothly when it is disconnected from the switch's KVM port or relocated to different KVM port
Lifetime firmware upgrades
Superior video quality - supports resolution of up to 1600 x 1200 within the distance of up to 40m
Hot pluggable - add or remove computers without having to power down the switch.
Compact size
