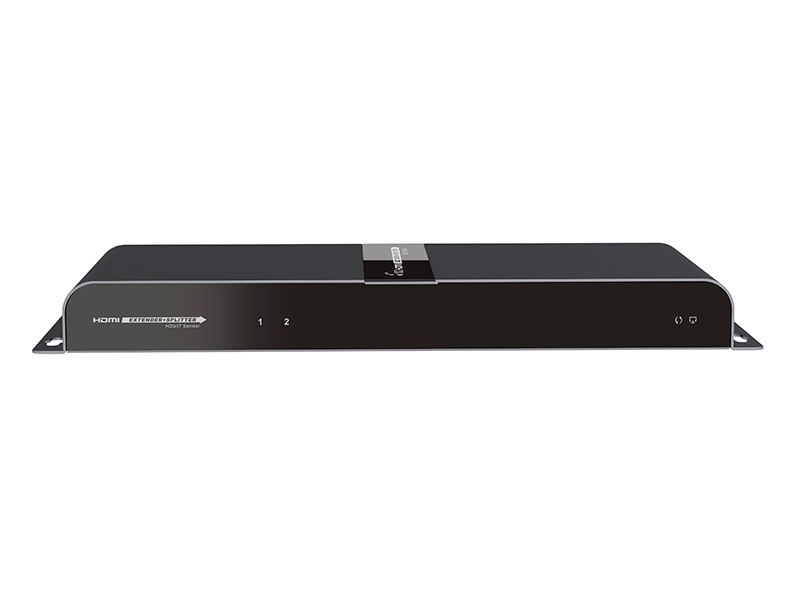

Lenkeng Hdmi Splitter 1080P Hdbitt 1 To 2 Up To 120Meters Lkv312-Hdbitt
| SKU: | 272539 |
|---|---|
| MPN: | LKV312-HDbitT |
| Manufacturer: | https://www.leadtek.com/ |
| Brand: | Lenkeng |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
In stock |
| Fright Estimate |
Description
Lenkeng LKV312-HDbitT 1 to 2 HDMI Extender Splitter
Features
- Based on HDbitT technology, more stable performance
- Distribute 1 HDMI source to 2 HDMI displays by connecting with HDbitT HDMI extender receivers
- Extend HDMI signal up to 120m over CAT6 cable
- Support full HD resolution 1080p@60Hz
- Support IR passback
- Plug and play, use easily
- Convenient wall-mountable design

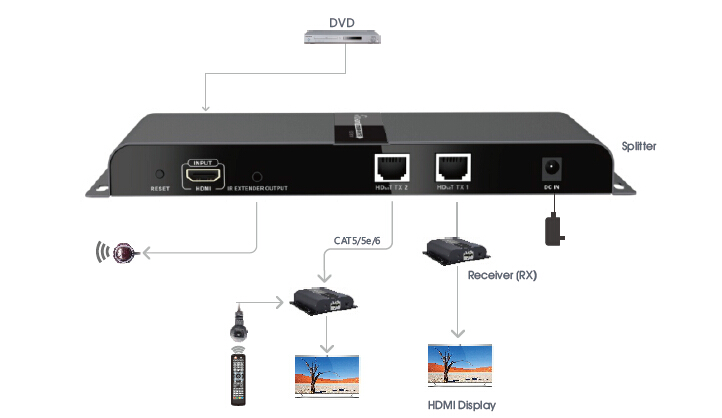

This product combines the extension and distribution functions to split 1 HDMI signal to 2 identical HDMI signals via network cable and it is used as a sender to work with 2 receivers to transmit these 2 HDMI signals up to 120meters. With the IR signal transmission to control the source device operation in long distance, it is widely applied in HD audio visual display room, HDTV, Set top box, DVD etc exhibition center and digital monitoring system.
Specifications
Specifications
| HDMI signal | Compatible with HDCP |
| Transport protocol | HDbitT |
| Support resolutions | 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, |
|
| 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz |
| Transmit distance | Up to 120meters transmission distance for 1080p 60Hz |
|
| full HD over single CAT6 |
| IR signal | Support 20~60kHz IR device |
| Input | 1 x HDMI |
| Output | 2 x RJ45 |
| Connection | 2 x LED |
| indicator leds |
|
| Working temperature | 0℃60℃ |
| Power supply | 5V2A |
| Power Consumption | <10W |
| Dimension | 252X97.5X25mm |
| Weight | 590g |
| Color | Black |
