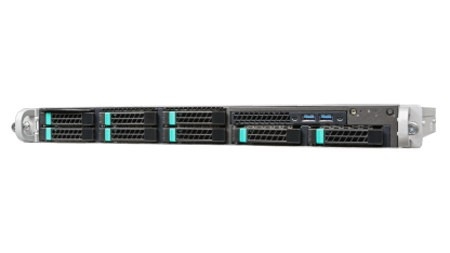

Intel 1u Svr E3-1230v6 (1/ 1) 16gb (1/ 4) 3.5" (0/ 4) Rmm 450w Rpsu(2/ 2) 3yr Wty Lr1304spcfg1r
$2,312.00
| SKU: | 256045 |
|---|---|
| MPN: | LR1304SPCFG1R Link |
| Manufacturer: | https://ark.intel.com/ |
| Brand: | Intel |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
Preorder 2-3 weeks |
| Fright Estimate |
Description
▼
Get More For Your Data Center
Customers want data center products designed for outstanding performance and reliability that will address their unique needs. With Intel® Server Systems featuring the latest Intel® Xeon® processor families you can count on trusted performance, quality and reliability to help solve the most complex business challenges.
Specifications
▼
Essentials
- Product CollectionIntel® Server System R1000SPO Family
- Code NameProducts formerly Silver Pass
- Launch DateQ1'17
- StatusLaunched
- Expected Discontinuance2021
- Limited 3-year WarrantyYes
- Extended Warranty Available for Purchase (Select Countries)Yes
- Additional Extended Warranty DetailsSingle Processor System Extended Warranty
- Chassis Form Factor1U Rack
- Chassis Dimensions17.26"x23.84"x1.7" (WxDxH)
- Board Form FactoruATX
- Rack Rails IncludedNo
- Socket1
- Heat SinkF1UE3PASSHS
- Heat Sink IncludedYes
- System BoardIntel® Server Board S1200SPOR
- Board ChipsetIntel® C236 Chipset
- Target MarketSmall and Medium Business
- Rack-Friendly BoardYes
- Power Supply450 W
- Power Supply TypeAC
- # of Power Supply Included2
- Redundant FansNo
- Redundant Power SupportedYes
- BackplanesIncluded
- Included ItemsThis product is an indirect replacement for LR1304SPCFG1.
PLEASE NOTE: LR1304SPCFG1R does not include a hard drive, contains 16GB RAM, and contains some additional configuration changes.
---- Prior Product Configuration ----
(1) E3-1230 v6 processor
(1) Intel® Server Board S1200SPOR
(1) Riser card assembly (AXX1UPCIEX16R2)
(2) 450W redundant power supply
(1) Power Distribution Board
(4) 3.5 inch Hot-swap drive bays
(4) 3.5 inch Hot-swap drive trays (FXX35HSCAR)
(1) 12Gb SAS Backplane (FR1304S3HSBP)
(1) SATA data cable
(1) Backplane 12C cable
(1) SATA ODD data cable
(1) SAS Data cable
(3) System fans
(1) Standard control panel assembly
(1) Front Q/O Pannel assembly (1 x VGA & 2 x USB)
(1) SATA Optical drive bay with filler panel
(2) Chassis handles -installed
(1) 16GB DDR4 DIMM
- Recommended Customer PriceN/A
Supplemental Information
- DatasheetView now
- DescriptionFor cost optimization, the Refresh version of the Entry Server Block ships with no SSD and a reduced 16GB of RAM. The Refresh version of the Entry Server Block includes E3-1230 v6.
Memory & Storage
- Memory TypesDDR4 ECC UDIMM
- Max # of DIMMs16
- Max Memory Size (dependent on memory type)64 GB
- DIMM TypeUDIMM
- # of Front Drives Supported4
- Front Drive Form FactorHot-swap 3.5" HDD or 2.5" SSD
- # of Internal Drives Supported1
- Internal Drive Form FactorM.2 SSD
Processor Graphics
Expansion Options
- Connector for Intel® I/O Expansion Module x8 Gen 31
- Connector for Intel® Integrated RAID Module1
- Riser Slot 1: Total # of Lanes8
- Riser Slot 1: Included Slot Configuration(s)1x PCIe Gen3 x8
I/O Specifications
- # of USB Ports9
- Total # of SATA Ports8
- RAID ConfigurationSoftware RAID RSTe (0,1,10,5) and ESRT2 (0,1,10)
- # of Serial Ports1
- Integrated LAN2x 1GbE
- # of LAN Ports2
- Optical Drive SupportYes
Package Specifications
- Max CPU Configuration1
Advanced Technologies
Intel® Transparent Supply Chain
- TPM Version2.0
