• CPU
  AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors
  Supports CPU up to 8 cores
  * Refer to www.asus.com for CPU support list
• Chipset
  AMD B450
• Memory
  AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
  4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
  Dual Channel Memory Architecture
  ECC Memory (ECC mode) support varies by CPU.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Graphic
  Integrated in the AMD Ryzen™ with Radeon™ Vega Graphics Processors
  Multi-VGA output support : HDMI/DVI-D ports
  - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
  - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
  　
• Multi-GPU Support
  Supports AMD CrossFireX™ Technology
• Expansion Slots
  AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
  1 x PCIe 3.0/2.0 x16 (x16 mode)
  AMD Ryzen™ with Radeon™ Vega Graphics Processor
  1 x PCIe 3.0/2.0 x16 (x8 mode)
  AMD B450 chipset
  1 x PCIe 2.0 x16 (max at x4 mode)
  3 x PCIe 2.0 x1
• Storage
  AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
  1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  2 x SATA 6Gb/s port(s)
  AMD B450 chipset :
  4 x SATA 6Gb/s port(s)
  Support Raid 0, 1, 10
• LAN
  Realtek® RTL8111H
  TUF LANGuard
• Audio
  Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *
  Audio Feature :
  - Exclusive DTS Custom for GAMING Headsets.
  - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
  - Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.
• USB Ports
  AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation :
  2 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A)
  AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation :
  1 x USB 3.1 Gen 1 port(s) (1 at back panel, , USB Type-C^TM)
  AMD B450 chipset :
  2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A)
  AMD B450 chipset :
  2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
  AMD B450 chipset :
  6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
• Special Features
  ASUS TUF PROTECTION
  - ASUS SafeSlot: Protect your graphics card Investment
  - ASUS ESD Guard: Enhanced ESD protection
  - ASUS Overvoltage Protection: World-class circuit-protecting power design
  - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
  - ASUS DIGI+ VRM: 6 Phase digital power design
  AURA :
  - Aura Lighting Control
  - Aura RGB Strip Headers
  ASUS Exclusive Features :
  - AI Suite 3
  - Ai Charger
  - PC Cleaner
  ASUS Quiet Thermal Solution :
  - Stylish Fanless Design Heat-sink solution & MOS Heatsink
  - ASUS Fan Xpert 4 Core
  ASUS EZ DIY :
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
  ASUS Q-Design :
  - ASUS Q-Shield
  - ASUS Q-Slot
  - ASUS Q-DIMM
  Overclocking Protection :
  - ASUS C.P.R.(CPU Parameter Recall)
• Back I/O Ports
  1 x PS/2 keyboard/mouse combo port(s)
  1 x DVI-D
  1 x HDMI
  1 x LAN (RJ45) port(s)
  1 x 5Gb/s port(s) USB Type-C^TM
  2 x USB 3.1 Gen 2 (teal blue)Type-A,
  2 x USB 3.1 Gen 1 (blue) Type-A,
  2 x USB 2.0
  3 x Audio jack(s)
• Internal I/O Ports
  1 x Aura RGB Strip Header
  1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  6 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  3 x Chassis Fan connector(s) (3 x 4 -pin)
  1 x AIO_PUMP connector (1 x 4 -pin)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s)
  1 x Clear CMOS jumper(s)
  1 x COM port header
• Accessories
  User's manual
  ASUS Q-Shield
  2 x SATA 6Gb/s cable(s)
  1 x M.2 Screw Package
  1 x Supporting DVD
  1 x TUF GAMING Sticker
  1 x TUF Certification card(s)
• BIOS
  128 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information
• Manageability
  WOL by PME, PXE
• Operating System
  Windows® 10 64-bit
• Form Factor
  ATX Form Factor
  12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
• Note
  *Use a chassis with HD audio module in the front panel to support an 8-channel audio output.

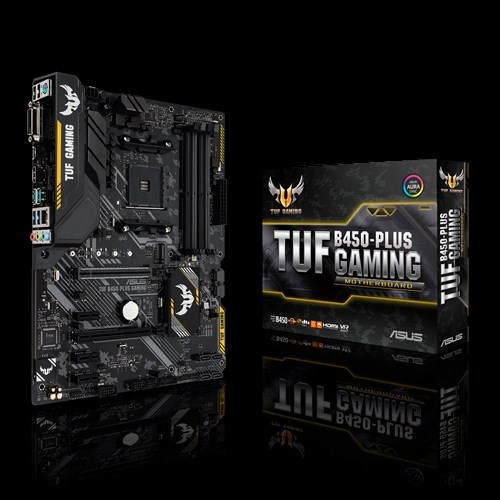

AMD B450 ATX gaming motherboard with Aura Sync RGB LED lighting, DDR4 3200MHz support, 32Gbps M.2, HDMI 2.0b, Type C and native USB 3.1 Gen 2.

GPU Temperature Sensing & Fan Xpert 4 Core: Ensures every fan achieves the best balance of cooling performance and acoustics
TUF Protection: SafeSlot, ESD Guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability
Military-grade TUF Components: TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability
Exclusive DTS® Custom audio: Delivers positional cues to stereo headphones, helping you to pinpoint enemies and action
Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear

CPU
AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors
Supports CPU up to 8 cores
* Refer to www.asus.com for CPU support list

Chipset
AMD B450

Memory
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
