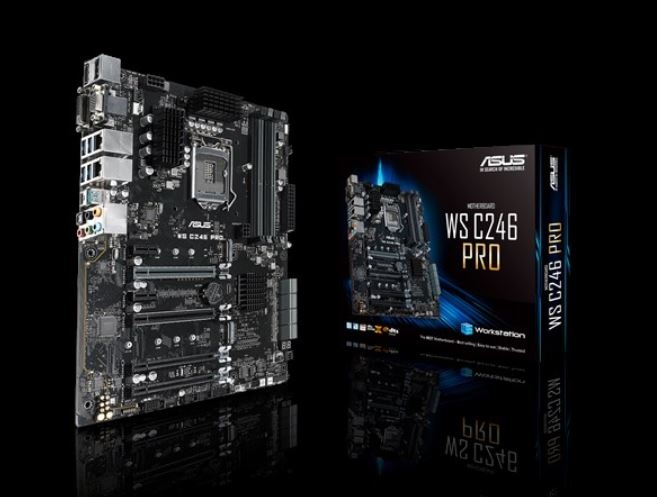

main product photo

Asus WS C246 Pro Ws Motherboard

Intel Lga1151 Atx Motherboard 4X Pcie 3.0 X16 Slots Dual M.2 Usb 3.1 Gen 2 Ws C246 Pro
$505.00
SKU: 287133
MPN: WS C246 PRO
Brand: Asus
Warranty: 1 Year Manufacturer's return to base
Availability:

Preorder 2-3 weeks
Fright Estimate
Add to Compare
Untitled 1
  • Processor / System Bus
    1 x Socket LGA1151
    Intel® Xeon® processor E-2100 family
    The 8th/9th generation Intel® Core™ i3/Pentium®/Celeron® Processor
    Intel® Core™ i9/i7/i5/i3 processors
    Intel® Xeon® E Processors
    E-2100/E-2200
    *Refer to support page for more information
    *Please refer to overview for details
  • Core Logic
    Intel® C246 Chipset
  • Memory
    Total Slots : 4 (2-channel)
    Capacity : Maximum up to 128GB UDIMM
    Memory Type :
    Dual Channel DDR4 2666/2400 UDIMM non ECC and with ECC
    Memory Size :
    32GB, 16GB, 8GB
    * Refer to support page for more information
  • Expansion Slots
    Total Slot : 6
    Slot Location 1 : PCI-E x1 (Gen2 X1 Link)
    Slot Location 2 : PCI-E x16 (Gen3 X16 + X8 Link)
    Slot Location 3 : PCI-E x16 (Gen3 X8 Link)
    Slot Location 4 : PCI-E x1 (Gen2 X1 Link)
    Slot Location 5 : PCI-E x16 (Gen3 X4 Link)
    Slot Location 6 : PCI-E x4 (Gen1 X4 Link)
  • Form Factor
    ATX (12"x9.6", 305mm x 244mm)
  • Storage
    SATA Controller :
    Intel® C246 Chipset
    8 x SATA3 6Gb/s ports

    SAS Controller :
  • Networking
    1 x Intel® I210AT
    1 x i219-LM
  • On Board I/O
    2 x USB 2.0 pin header
    1 x USB 3.0 pin header
    1 x M.2 Connector , NGFF Type : 2280/2260/2242
    1 x M.2 Connector , NGFF Type : 22110/2280/2260/2242
    1 x TPM header
    1 x PSU Power Connector (24-pin ATX power connector)
    1 x COM port
    1 x USB BIOS Flashback Button
    1 x S/PDIF Out (Optical)
    1 x COM port
  • Back I/O Ports
    2 x USB 3.1 ports (1 port at Type A, 1 port at Type C)
    4 x USB 3.0 ports
    1 x HDMI
    1 x DisplayPort
    1 x DVI-D
    1 x VGA
    2 x RJ-45 ports
    8-channel Audio I/O ports (5+1 Audio jacks)
  • Management Solution
    WfM 2.0, DMI 3.0, WOL by PME, WOR by PME, PXE
  • Accessories
    Gift Box (1-in-1)
    1 x Support CD
    1 x I/O shield
    8 x SATA 6G cables
    1 x Com port cable
    1 x User manual
    1 x Quick start guide
    2 x M.2 screw

    Bulk Pack (10-in-1)
    1 x Support CD
    10 x I/O shield
    80 x SATA 6G cables
    10 x Com port cable
    1 x User manual
    1 x Quick start guide
    20 x M.2 screw
  • Monitoring
    CPU Temperature
    Fan RPM
