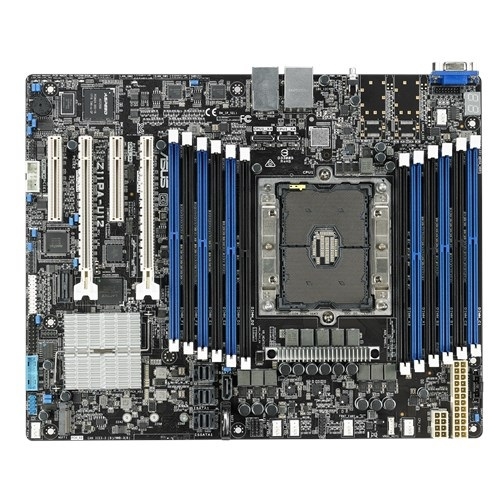

main product photo

Asus Z11Pa-U12 Scalable server Motherboard

Socket P Intel C621 12X Ddr4 2X Pcie3.0 X16 13X Sata3 1X M.2 4X Usb3.0 Vga Atx 90Sb0660-M0Uay0
$614.00
SKU: 287139
MPN: 90SB0660-M0UAY0
Brand: Asus
Warranty: 1 Year Manufacturer's return to base
Availability:

In stock

Fright Estimate
Add to Compare
Untitled 1
  • Processor / System Bus
    1 x Socket P (LGA 3647)
    1st and 2nd Gen Xeon® Scalable Processor Family
    *Refer to support page for more information
    UPI (10.4 GT/s)
  • Core Logic
    Intel® Lewisburg PCH C621
  • Memory
    Total Slots : 12 (6-channel per CPU, 12 DIMM per CPU)
    Capacity : Maximum up to 384GB RDIMM/Maximum up to 768GB LRDIMM/Maximum up to 1536GB LR-DIMM 3DS
    Memory Type :
    Single Channel DDR4 2933/2666/2400 LR-DIMM 3DS
    Memory Size :
    32GB, 16GB, 8GB, 4GB RDIMM
    64GB, 32GB LRDIMM
    128GB, 64GB LR-DIMM 3DS
    * Refer to support page for more information
    * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.
  • Expansion Slots
    Total Slot : 4
    Slot Location 1 : PCI-E x8 (Gen3 X4 Link)
    Slot Location 2 : PCI-E x16 (Gen3 X16 Link)
    Slot Location 3 : PCI-E x8 (Gen3 X8 Link)
    Slot Location 4 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 3 is occupied
  • Form Factor
    ATX (12"x9.6", 305mm x 244mm)
  • ASUS Features
    ASUS Fan Speed control technology
    ASUS Control Center (ASWM Enterprise 2.0)
  • Storage
    SATA Controller :
    Intel® C621
    13 x SATA3 6Gb/s ports (12 by 3 Mini-SAS Connector)
    Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
    (Support Software RAID 0, 1, 5, 10 )
    Intel®VROC (For Linux/Windows)
    (Support Software RAID )
    SAS Controller :
    ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
    ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card
  • Networking
    2 x Intel® I210AT + 1 x Mgmt LAN
  • Graphic
    Aspeed AST2500 with 64MB VRAM
  • On Board I/O
    1 x TPM header
    1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
    1 x USB 3.0 pin header , Up to 2 Devices
    1 x USB 2.0 pin header , Up to 2 Devices
    6 x Fan Header , 4pin (3pin/4pin fan dual support)
    1 x Serial Port Header
    1 x SMBus
    1 x Chassis Intruder
    2 x Front LAN LED
    1 x M.2 Connector , NGFF Type : 2280/2260/2242
    1 x VROC Key Header
    1 x Q-Code/Port 80 LED
  • Back I/O Ports
    2 x USB 3.0 ports
    1 x VGA port
    2 x RJ-45 GbE LAN ports
    1 x RJ-45 Mgmt LAN port

    Rear Switch/LED:
    1 x Power switch
    1 x Message LED
    1 x HDD LED
    1 x Location LED
    1 x BMC LED
    1 x P5V LED
  • Management Solution
    ASMB9-iKVM for KVM-over-Internet
    ACC(ASUS Control Center)
  • Weight
    Gift Box (1-in-1)
    Net Weight : 0.97 KG
    Gross Weight : 1.625 KG

    Bulk Pack (10-in-1)
    Net Weight : 9.7 KG
    Gross Weight : 13.015 KG
  • Environment
    Operation temperature: 10°C ~ 35°C
    Non operation temperature: -40°C ~ 70°C
    Non operation humidity: 20% ~ 90% (Non condensing)
  • Accessories
    I/O Shield
    1 x SATA 6Gb/s cable
    1 x Supporting DVD
    1 x LGA3647 carrier
  • Monitoring
    CPU Temperature
    Fan RPM
  • Note
    * Please refer to www.asus.com for latest momory AVL update
    * EEB Mounting Hole Locations
