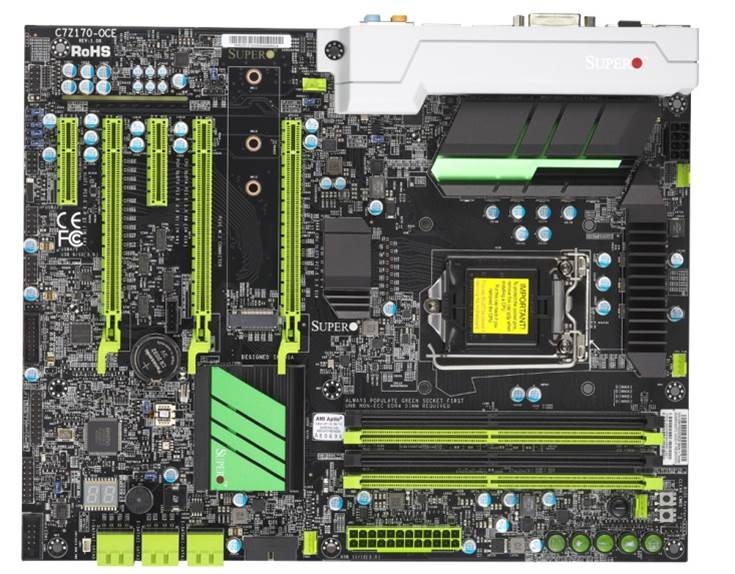

 | | MBD-C7Z170-OCE | | | | | | | Form Factor | | | Dimensions | - 12" x 9.6" (30.48cm x 24.38cm)
| | | | | | CPU | - Intel® 6th Generation Core™ i3 series, Intel® 6th Generation Core™ i5 series, Intel® 6th Generation Core™ i7 series, Intel® 7th Generation Core™ i3 series, Intel® 7th Generation Core™ i5 series, Intel® 7th Generation Core™ i7 series.
- Socket H4 (LGA 1151) supported, CPU TDP support Up to 160W
| | | | | | Memory Capacity | - 64GB Unbuffered non-ECC UDIMM, DDR4-3300MHz (OC), in 4 DIMM slots
| | Memory Type | - 2400/2133/1866 Non-ECC DDR4 UDIMM
| | DIMM Sizes | | | Memory Voltage | | | | | | | Chipset | | | SATA | - Intel® Z170 Express controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- + 1 PCI-E M.2(PCI-E x4, 2260/2280/22110)(No Raid Support)
| | Network Controllers | - Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Intel® single Ethernet PHY i219V | | Audio | | | Graphics | - ***Display Port support up to DP1.2, HDMI support up to HDMI1.4b(will free upgrade to HDMI2.0 in 2016)***
| | | | | | LAN | - 2 RJ45 Gigabit Ethernet LAN ports
| | USB | - 6 USB 2.0 ports (2 rear + 4 headers),
- 4 USB 3.0 ports (2 rear + 2 headers); 1 USB 3.1 (10 Gb/s) Type C port (Rear), 2 USB 3.1 (10Gb/s) ports (Headers)
| | Video Output | - 1 DVI - D port, 1 DP (DisplayPort) port, 1 HDMI port,
- ***Display Port support up to DP1.2, HDMI support up to HDMI1.4b(will free upgrade to HDMI2.0 in 2016)***
| | Serial Port / Header | | | TPM | | | Others | | |  | | | | PCI-E | - 3 PCI-E 3.0 x16,
- 2 PCI-E 3.0 x1
- ***3 PCI-Ex16 slots are running at 16/NA/16 or 16/8/8, 2 PCI-E x1 are in x4 slots***
| | | | | | BIOS Type | | | BIOS Features | - Plug and Play (PnP)
- DMI 2.3
- PCI 3.0
- ACPI 5.0
- USB Keyboard support
- Hardware BIOS Virus protection
- SMBIOS 3.0
- UEFI 2.3.1
- RTC (Real Time Clock) Wakeup
| | | | | | Software | | | | | | | Voltage | - +12V, +3.3V, +5V, Chassis intrusion header, Monitors CPU voltages, VBAT
| | FAN | - 5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication
| | Temperature | - CPU thermal trip support
- I2C temperature sensing logic
- PECI
- Thermal Monitor 2 (TM2) support
| | LED | | | Other Features | - 8-pin 12v DC power connector, ATX Power connector, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Intel Smart Response Technology, Voltage and Frequency Overclocking, WOL
| |
