Buy MCHD2VGAA2 Startech Micro Hdmi To Vga Adapter With Audio For Smartphones / Ultrabooks / Tablets

Skip to the beginning of the images gallery

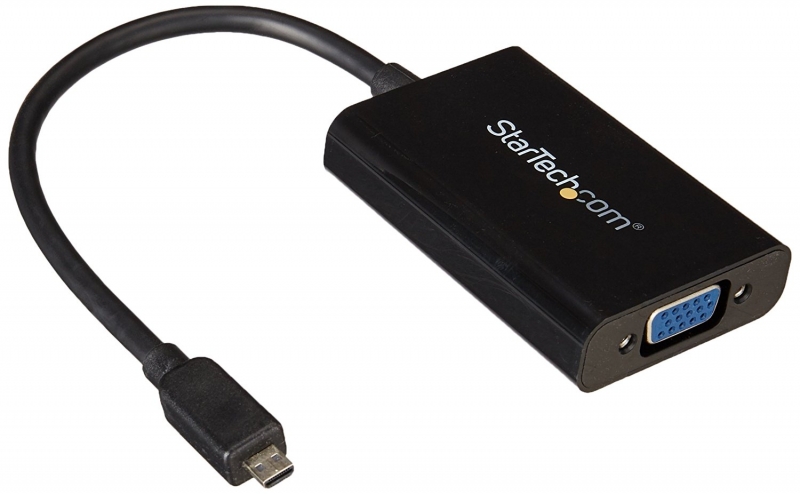

Startech Micro Hdmi To Vga Adapter With Audio For Smartphones / Ultrabooks / Tablets - 1920x1200

- M/F MCHD2VGAA2

$72.00

SKU:	223606
MPN:	MCHD2VGAA2 Link
Manufacturer:	http://www.startech.com/au
Brand:	Startech
Warranty:	1 Year Manufacturer's return to base
Availability:	In stock
Fright Estimate

Description

▼

StarTech.com Micro HDMI to VGA Adapter with Audio for Smartphones / Tablets

Adds value to an Ultrabook, tablet or smartphone equipped with Micro HDMI® output, by broadening compatibility with commonly available VGA display devices (Television, Monitor, Projector)
　
Saves the time and hassle of finding a power outlet/source, by not requiring an external power adapter
　
Supports output resolutions to a PC monitor or projector up to 1920x1200 (WUXGA), HDTV resolutions up to 1080p
　
Easy to use with no software required
　
Compact, lightweight, and portable design
　
Supported on any VGA display, including televisions and projectors

Features

Connect a Micro HDMI-equipped Ultrabook, or Tablet or Smartphone to your VGA Display, or Projector with AudioThe MCHD2VGAA2 Micro HDMI-to-VGA Video Adapter enables you to connect an Ultrabook, Smartphone or tablet that outputs content through a Micro HDMI connector to a VGA-capable display device (television, monitor, projector), and also offers discrete 2-channel analog audio output from the Micro HDMI source. The Micro HDMI-to-VGA adapter is intended for displaying user generated content such as presentations, documents, and work sheets onto a VGA projector or monitor.

Share or Extend your Ultrabook, Smartphone or Tablet HD Display to a VGA Monitor, Projector or Television

Cost effective way to connect your smartphone or tablet to a VGA Display
Multiple monitors have consistently proven to increase productivity and efficiency
Run multiple applications on different screens

Ideal for low powered video cards

Optional External USB power
Works with low powered Micro HDMI video cards that do not output enough power for a stand-alone adapter
No External power required for most video cards

Audio Support

3.5mm stereo audio output

Designed for Travel - Lightweight and portable

Small foot print makes this adapter ideal for connecting your tablet or smartphone to VGA displays while on the road or in boardrooms using VGA projectors

Plug-and-Play Installation

No Software or drivers required
Connect the MCHD2VGAA2 to the Micro HDMI output on your device
Connect your Display to the MCHD2VGAA2 using a VGA cable
If external power is required, connect the included USB power cable from the device to a USB power source

Supported Resolutions

1920x1200, 1920x1080 (1080p), 1600x1200 @ 60Hz

Specifications

▼

Connector(s)
Connector A	Micro HDMI (19 pin) Male Input
Connector B	3.5 mm Mini-Jack (3 Position) Female Output
	VGA (15 pin, High Density D-Sub) Female Output
Connector Type(s)	USB Micro-B (5 pin) Female
Environmental
Humidity	40%-85%RH
Operating Temperature	0?C to 60?C (32?F to 140?F)
Storage Temperature	-10?C to 70?C (14?F to 158?F)
Hardware
Active or Passive Adapter	Active
Audio	Yes
Converter Type	Format Converter
Industry Standards	HDMI?, HDCP
Packaging Information
Shipping (Package) Weight	58 g [2 oz]
Performance
Audio Specifications	2 Channel
Maximum Analog Resolutions	1920x1080
Maximum Digital Resolutions	1920x1080 (1080p) @ 60Hz
Supported Resolutions	1920x1080 (1080p) @ 60Hz
Wide Screen Supported	Yes
Physical Characteristics
Color	Black
Enclosure Type	Plastic
Product Height	15 mm [0.6 in]
Product Length	258 mm [10.2 in]
Product Weight	34 g [1.2 oz]
Product Width	45 mm [1.8 in]
What's in the Box
Included in Package	Micro HDMI? to VGA Adapter Converter

Vendor Info

▼

The MCHD2VGAA2 Micro HDMI® to VGA Video Adapter enables you to connect a Smartphone or tablet that outputs content through a Micro HDMI connector to a VGA-capable display device (television, monitor, projector), and also offers discrete 2-channel analog audio output from the Micro HDMI® source. The Micro HDMI to VGA adapter is intended for displaying user generated content such as presentations, documents, and work sheets onto a VGA projector or monitor.

This versatile adapter supports high definition output, including 1080p for HDTV connections, and up to 1920x1200 (WUXGA) for computer VGA monitors.

The MCHD2VGAA2 Micro HDMI® to VGA Video Adapter is backed by 2-year warranty and free lifetime technical support.
