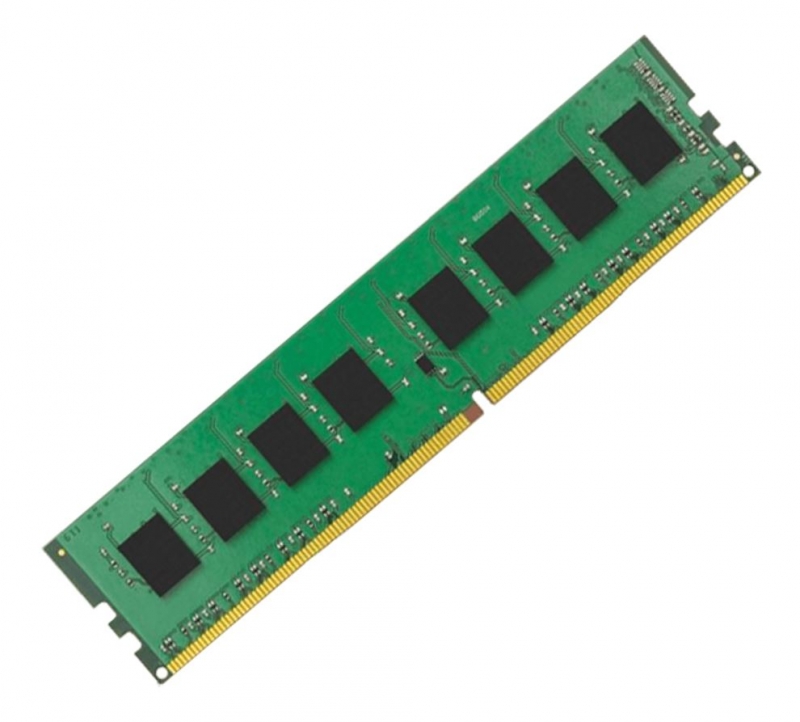

Kingston 8Gb (1X8Gb) Ddr4 Rdimm (KSM24ES8/8ME)
| SKU: | 293581 |
|---|---|
| MPN: | KSM24ES8/8ME Link |
| Manufacturer: | https://www.kingston.com/ |
| Brand: | Kingston |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
In stock |
| Fright Estimate |
Description
Kingston 8GB (1x8GB) DDR4 RDIMM 2400MHz CL17 1.2V ECC Registered ValueRAM 1Rx8
1G x 72-Bit PC4-2400 Server Memory
Kingston's KSM24ES8/8ME is a 1G x 72-bit (8GB) DDR4-2400 CL17 SDRAM (Synchronous
DRAM), 1Rx8, ECC, memory module, based on nine 1G x 8-bit FBGA components. The
SPD is programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at
1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical
specifications are as follows:
Specifications
• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Single-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• Temperature sensor with integrated SPD
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.23” (31.25mm)
• RoHS Compliant and Halogen-Free
