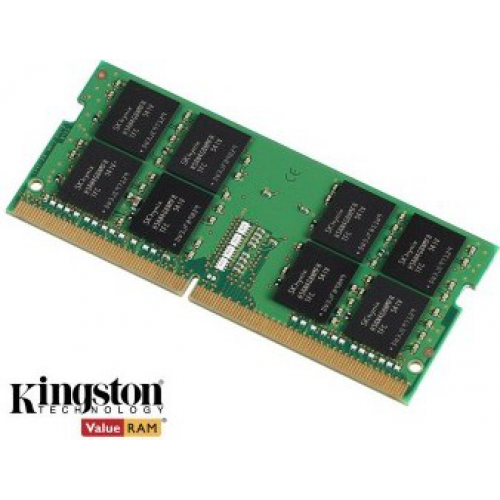

Kingston 16gb (1x16gb) Ddr4 Sodimm 2400mhz Cl17 1.2v Valueram Single Stick Notebook Laptop Memory
~KVR21S15D8/ 16 MENB16GBDDR42133 KVR24S17D8/16
Special Price
$105.00
Regular Price
$107.00
| SKU: | 264930 |
|---|---|
| MPN: | KVR24S17D8/16 Link |
| Manufacturer: | https://www.kingston.com/ |
| Brand: | Kingston |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
Preorder 2-3 weeks |
| Fright Estimate |
Description
▼
ValueRAM, Kingston's industry standard memory, delivers award-winning performance and legendary Kingston reliability. When you know what you want, you want ValueRAM.
Specifications
▼
Product Technical Specification
| SKU | KVR24S17D8/16 |
| EAN/UPC Code | 740617262704 |
| Memory Capacity | 16GB |
| Model/Series/Type | ValueRAM |
| Brand | Kingston |
| CASLatency | CL17 |
| Chip Organization | x8 |
| Country of Origin | China, Taiwan |
| Form Factor | DDR4 |
| Memory Depth | 2G |
| Memory Voltage | 1.2v |
| Module Type | SODIMM |
| Operating Temperature | 0°C to 85°C |
| Pins | 260 Pin |
| Product Type/Family | DRAM |
| RAM Memory Type | Non-ECC |
| Rank | 2R (Dual Rank) |
| Speed | 2400MHz (PC4-19200) |
| Warranty | Lifetime |
| Weight | 9g |
Vendor Info
▼
Kingston KVR24S17D8/16 16GB (1x16GB) DDR4 SODIMM 2400MHz CL17 1.2V ValueRAM Single Stick Notebook Laptop Memory ~KVR21S15D8/16
This document describes ValueRAM's 2G x 64-bit (16GB)
DDR4-2400 CL17 SDRAM (Synchronous DRAM), 2Rx8, non-ECC,
memory module, based on sixteen 1G x 8-bit FBGA components.
The SPD is programmed to JEDEC standard latency DDR4-2400
timing of 17-17-17 at 1.2V. This 260-pin DIMM uses gold contact
fingers. The electrical and mechanical specifications are as follows:
Features:
• Power Supply: VDD=1.2V Typical
• VDDQ = 1.2V Typical
• VPP - 2.5V Typical
• VDDSPD=2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Dual-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free
This document describes ValueRAM's 2G x 64-bit (16GB)
DDR4-2400 CL17 SDRAM (Synchronous DRAM), 2Rx8, non-ECC,
memory module, based on sixteen 1G x 8-bit FBGA components.
The SPD is programmed to JEDEC standard latency DDR4-2400
timing of 17-17-17 at 1.2V. This 260-pin DIMM uses gold contact
fingers. The electrical and mechanical specifications are as follows:
Features:
• Power Supply: VDD=1.2V Typical
• VDDQ = 1.2V Typical
• VPP - 2.5V Typical
• VDDSPD=2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Dual-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free
