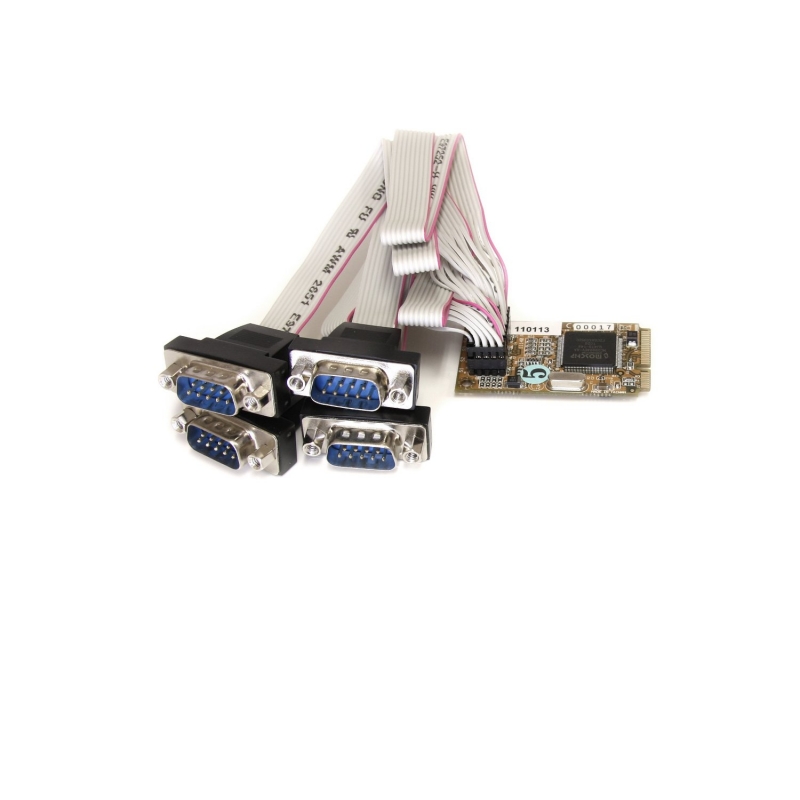

Startech 4 Port Mini Pcie Serial Card W/ 16650 Mpex4s552
| SKU: | 221452 |
|---|---|
| MPN: | MPEX4S552 Link |
| Manufacturer: | http://www.startech.com |
| Brand: | Startech |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
In stock |
| Fright Estimate |
Description
Add Four RS232 Serial Ports to an Embedded System through a mini PCI Express Slot
The MPEX4S952 4-Port RS232 Mini PCI Express Serial Card (16650 UART) turns a mini-PCIe slot into four RS232 (DB9) serial ports with data rates up to 921.6 Kbps - a cost-saving solution for adding serial support to embedded systems missing the functionality.
A native PCIe single-chip design enables you to take advantage of full PCI Express bus capability, by providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional "bridge chip" serial cards.
Backed by a StarTech.com Lifetime Warranty and free lifetime technical support.
Features
- Four high speed RS232 serial ports with data transfer rates up to 921.6 Kbps
- High Performance 16650 UART
- Includes 4x 30cm IDC to DB9 serial cables
- 256-byte deep FIFO per transmitter and receiver
- Native single-chip, single lane PCI Express
- In-band software flow control, using programmable Xon/Xoff in both directions
- Automated out-of-band hardware flow control using RTS/CTS
- Compliant with PCI Express base specifications revision 1.1
Specifications
| Packaging Information | |
| Shipping (Package) Weight | 0.2 kg [0.4 lb] |
| Performance | |
| Data Bits | 5, 6, 7, 8 |
| FIFO | 256 Bytes |
| Flow Control | None, Xon/Xoff, RTS/CTS |
| Max Baud Rate | 921.6 Kbps |
| Parity | None, Odd, Even, Space, Mark |
| Serial Protocol | RS-232 |
| Stop Bits | 1, 1.5, 2 |
| Physical Characteristics | |
| Color | Green |
| Product Height | 30 mm [1.2 in] |
| Product Length | 51 mm [2 in] |
| Product Weight | 150 g [5.3 oz] |
| Product Width | 10 mm [0.4 in] |
| Software | |
| OS Compatibility | Windows? DOS, 95, 98SE, 2000, CE 5.0/6.0, Embedded System 2009, POS Ready 2009, XP Embedded, XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS? 10.4 to 10.10 Linux 3.5.x to 4.11.x LTS Versions Only |
| What's in the Box | |
| Included in Package | 4 Port Mini-PCIe Serial Card |
| DB9 ribbon cable | |
| Driver CD | |
| Instruction Manual | |
| Hardware | |
| Ports | 4 |
| Port Style | Dongle (Included) |
| Interface | Serial |
| Industry Standards | PCI Express Base Specification, Revision 1.1 |
| Chipset ID | ASIX - MCS9904CV-AA |
| Card Type | Embedded |
| Bus Type | Mini PCI Express |
| Environmental | |
| Storage Temperature | -20?C to 85?C (-4?F to 185?F) |
| Operating Temperature | 0?C to 55?C (32?F to 131?F) |
| Humidity | 5~95% RH |
| Connector(s) | |
| External Ports | DB-9 (9 pin, D-Sub) Male |
| Connector Type(s) | Mini PCI Express x1 (52 pin) Male |
