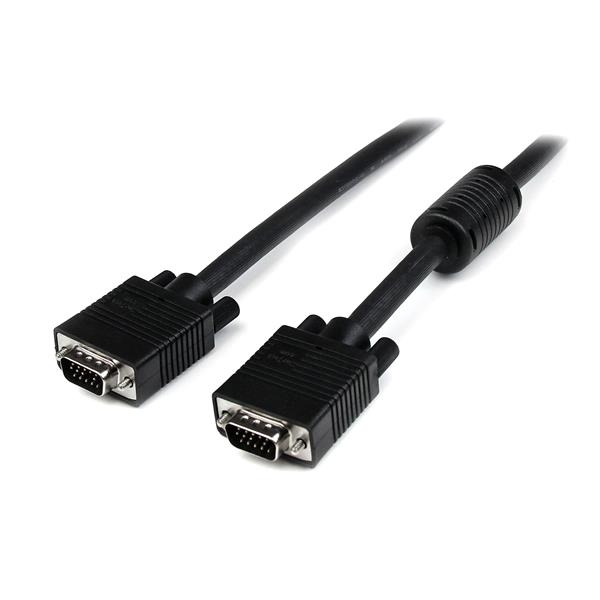

Startech 6 Ft Coax High Resolution Monitor Vga Video Cable - Hd15 To Hd15 M/m - 6ft Hd15
to HD15 Cable MXT101MMHQ
$16.00
| SKU: | 237230 |
|---|---|
| MPN: | MXT101MMHQ Link |
| Manufacturer: | https://www.startech.com/ |
| Brand: | Startech |
| Warranty: | 1 Year Manufacturer's return to base |
| Availability: |
In stock |
| Fright Estimate |
Description
▼
The MXT101MMHQ High Resolution VGA Cable (6ft) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above.
This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.
The StarTech.com Advantage
- Supports high resolution VGA video (1920x1200 or above), suitable for a wide range of applications
- Ferrite cores help eliminate EMI interference
- Backed by StarTech.com Lifetime warranty
Specifications
▼
| Packaging Information | |
| Shipping (Package) Weight | 0.3 kg [0.6 lb] |
| Performance | |
| Impedance | 75 Ohm |
| Physical Characteristics | |
| Cable Length | 1.8 m [6 ft] |
| Cable OD | 9 mm [0.4 in] |
| Color | Black |
| Max Connector Dimension | 34 mm [1.3 in] |
| Product Length | 1.8 m [6 ft] |
| Product Weight | 280 g [9.9 oz] |
| Wire Gauge | 28 AWG |
| Special Notes / Requirements | |
| Note | Pin number 9 is not populated on these connectors |
| What's in the Box | |
| Included in Package | 6 ft Coax High Resolution Monitor VGA Cable - HD15 M/M |
| Nuts | |
| Hardware | |
| Regulatory Approvals | UL2919 |
| Number of Ferrites | 1 |
| Number of Conductors | 14 |
| Fire Rating | CMG Rated (General Purpose) |
| Connector Plating | Nickel |
| Cable Shield Type | Aluminum-Mylar Foil with Braid |
| Cable Jacket Type | PVC - Polyvinyl Chloride |
| Environmental | |
| Storage Temperature | -20 to 80 ?C |
| Operating Temperature | 0 to 60 ?C |
| Humidity | 0 - 80 %RH |
| Connector(s) | |
| Connector B | VGA (15 pin, High Density D-Sub) Male |
| Connector A | VGA (15 pin, High Density D-Sub) Male |
