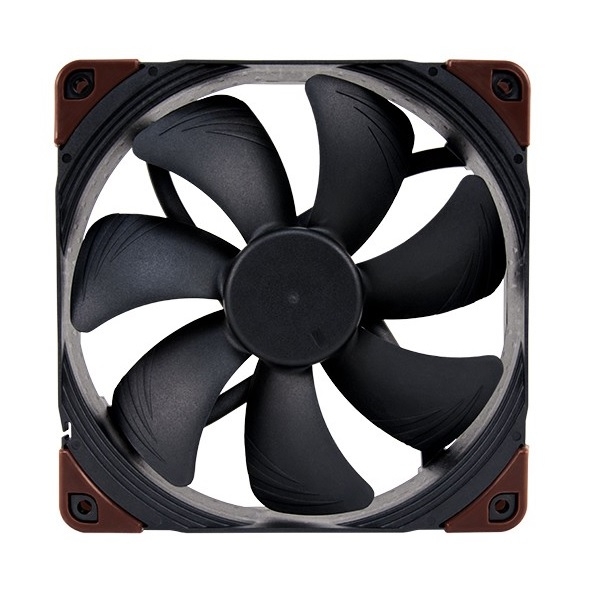

Noctua 140mm Nf-a14 Industrialppc Ip52 Pwm Fan (max 3000rpm) Nf-a14-ippc-3000-pwm
$62.00
| SKU: | 172910 |
|---|---|
| MPN: | NF-A14-iPPC-3000-PWM Link |
| Manufacturer: | http://www.noctua.at/ |
| Brand: | Noctua |
| Availability: |
Preorder 2-3 weeks |
| Fright Estimate |
Description
▼
The NF-A14 industrialPPC (Protected Performance Cooling) provides superior flow rates as well as great dependability. It features a 3000rpm, three-phase motor and an SSO2 bearing for class-leading performance, efficiency, and durability. Combined with a robust polyamide construction and advanced protection features, this fan is ideal for challenging industrial applications.
-
3000RPM
INDUSTRIALPPC VERSIONRunning twice as fast as the 1500rpm retail
version, the NF-A14 industrialPPC-3000 provides extreme airflow and pressure
performance. -
THREE-PHASE
MOTOR DESIGNWhile most axial fans use single-phase motors with four
slots, Noctua’s industrialPPC fans feature a three-phase design with six
slots. This provides smoother transitions between the slots and allows for
even higher running smoothness, further reducing vibrations and
unprecedented energy efficiency. -
AAO
FRAMENoctua’s AAO (Advanced Acoustic Optimisation) frames feature
integrated anti-vibration pads as well as Noctua’s proprietary Stepped Inlet
Design and Inner Surface Microstructures, both of which further refine the
fan’s performance/noise efficiency. -
CERTIFIED
IP52 WATER- AND DUST PROTECTIONThanks to a special varnish coating that
covers the motor and the PCB, the NF-A14 industrialPPC complies with the
ingress protection rating IP52. This means that it is not only highly dust
resistant, but also withstands dripping water equivalent to 3mm rainfall per
minute. -
SSO2
BEARINGThe NF-A14 industrialPPC features the further optimized second
generation of Noctua’s renowned, time-tested SSO bearing. With SSO2, the
rear magnet is placed closer to the axis to provide even better
stabilization, precision, and durability. -
CUSTOM
DESIGNED PWM IC WITH SCDSupporting fully automatic PWM speed control,
the NF-A14 industrialPPC uses Noctua’s custom designed NE-FD2 PWM IC for
three-phase motors. The NE-FD2 integrates Noctua’s proprietary Smooth
Commutation Drive (SCD) technology, which suppresses PWM switching noises
and makes the fan quieter at lower speeds.
Specifications
▼
Vendor Info
▼
Manufacturer: Noctua. Designed in Austria, Noctuas premium cooling solutions are internationally renowned for their low noise, exceptional performance and outstanding quality. Having received more than one thousand awards and recommendations from leading hardware websites and magazines, Noctua is the most acclaimed manufacturer of premium quality quiet cooling solutions and the number one choice for silent, high performance PC builds.
Conceived for industrial heavy duty applications that require enhanced cooling performance and advanced ingress protection, Noctuas industrialPPC (Protected Performance Cooling) series represent ruggedised, high speed versions of the corresponding award winning retail models. Thanks to the outstanding aerodynamic efficiency of the design and the use of a novel three phase motor, industrialPPC versions provide superior airflow and pressure capacity while keeping noise levels and power consumption moderate when compared against other high speed fans. While its fibre glass reinforced polyamide construction and certified water and dust protection make industrialPPC fans suitable for operation in challenging environments, the renowned SSO2 bearing technology guarantees an MTBF of over 150,000Hrs. Topped off with Noctuas trusted reliability and 6 years manufacturer warranty, the industrialPPC series is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability!
Highlights:
* Manufacturers model code: NF-A14 Industrial Protected Performance Cooling.
* Market orientation: Industrial & heavy duty.
* RPM: 3000.
* CFM: 158.4.
* dBA: 41.3.
* Fan width: 140mm.
* Fan depth: 25mm.
* Bearing type: SSO2 (Self Stabilising Oil).
* Connector: 4Pin PWM.
* Warranty: 6 years.
* Water & dust protection: IP52.
Do you want to know more? Check out Noctuas product introduction page, detailed specifications, infosheet & product FAQ.
Conceived for industrial heavy duty applications that require enhanced cooling performance and advanced ingress protection, Noctuas industrialPPC (Protected Performance Cooling) series represent ruggedised, high speed versions of the corresponding award winning retail models. Thanks to the outstanding aerodynamic efficiency of the design and the use of a novel three phase motor, industrialPPC versions provide superior airflow and pressure capacity while keeping noise levels and power consumption moderate when compared against other high speed fans. While its fibre glass reinforced polyamide construction and certified water and dust protection make industrialPPC fans suitable for operation in challenging environments, the renowned SSO2 bearing technology guarantees an MTBF of over 150,000Hrs. Topped off with Noctuas trusted reliability and 6 years manufacturer warranty, the industrialPPC series is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability!
Highlights:
* Manufacturers model code: NF-A14 Industrial Protected Performance Cooling.
* Market orientation: Industrial & heavy duty.
* RPM: 3000.
* CFM: 158.4.
* dBA: 41.3.
* Fan width: 140mm.
* Fan depth: 25mm.
* Bearing type: SSO2 (Self Stabilising Oil).
* Connector: 4Pin PWM.
* Warranty: 6 years.
* Water & dust protection: IP52.
Do you want to know more? Check out Noctuas product introduction page, detailed specifications, infosheet & product FAQ.
