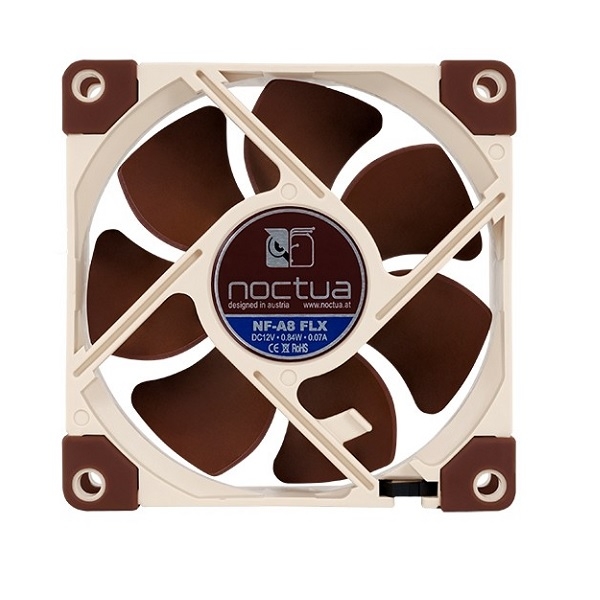

Noctua 80mm Nf-a8 Flx 2000rpm Fan Nf-a8-flx

$32.00

SKU:	187326
MPN:	NF-A8-FLX Link
Manufacturer:	http://www.noctua.at/main.php?show=start
Brand:	Noctua
Availability:	In stock
Fright Estimate

Description

▼

The NF-A8 is a highly optimised, premium quality quiet 80mm fan. Featuring Noctua’s AAO (Advanced Acoustic Optimisation) frame as well as sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A8 further improves the renowned quiet cooling performance of the award-winning NF-R8. The FLX version provides 2000/1650/1200rpm speed settings via the supplied Low-Noise Adaptors in order to provide full flexibility in fine-tuning the fan for maximum ventilation performance or near-silent operation. Its superb running smoothness, reference-class SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.

Details

Succeeding the award-winning NF-R8

Noctua's NF-R8 fan has become a default-choice among PC enthusiasts looking for a premium quality quiet 80mm fan. Thanks to its thoroughgoing aerodynamic optimisations, the NF-A8 provides higher static pressure and an even better airflow/noise ratio than its much acclaimed predecessor.

Flow Acceleration Channels

The NF-A8 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.

AAO Frame

Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.

Stepped Inlet Design

Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.

Inner Surface Microstructures

With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.

Integrated Anti-Vibration Pads

Integrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.

SSO2 Bearing

The NF-A8 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.

Smooth Commutation Drive 2

The latest version of Noctua's advanced Smooth Commutation Drive system ensures superb running smoothness by eliminating torque variations and switching noises. This makes the NF-A8 remarkably quiet even at very close distances.

3 speed settings for full flexibility

Providing 2000, 1650 and 1200 rpm speed settings via the supplied Low-Noise and Ultra-Low-Noise Adapters, the NF-A8 FLX (Flexibility) can be fine-tuned for superior airflow or maximum quietness.

Extensive cabling options

The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved.

6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A8 features an MTBF of more than 150.000 hours rating and comes with a full 6-year manufacturer’s warranty.

Specifications

▼

FAN Specification

Size

80x80x25

Connector

3-Pin

Bearing

SSO2

Blade Geometry

A-Series with Flow Acceleration Channels

Frame Technology

AAO (Advanced Acoustic Optimisation)

Rotational Speed (+/- 10%)

2000

Rotational Speed with L.N.A. (+/- 10%)

1650

Rotational Speed with U.L.N.A. (+/- 10%)

1200

Airflow

50,4

Airflow with L.N.A.

41,4

Airflow with U.L.N.A.

28,9

Acoustical Noise

16,1

Acoustical Noise with L.N.A.

12,9

Acoustical Noise with U.L.N.A.

7,9

Static Pressure

1,96

Static Pressure with L.N.A.

1,40

Static Pressure with U.L.N.A.

0,74

Max. Input Power

0,84

Max. Input Current

0,07

Voltage

MTBF

> 150.000

Scope of Delivery

Low-Noise Adaptor (L.N.A.)
Ultra-Low-Noise Adaptor (U.L.N.A.)
3:4-Pin Adaptor
30cm Extension Cable
4 Vibration-Compensators
4 Fan Screws

Warranty

6 years

Vendor Info

▼

Manufacturer: Noctua. Designed in Austria, Noctuas premium cooling solutions are internationally renowned for their low noise, exceptional performance and outstanding quality. Having received more than one thousand awards and recommendations from leading hardware websites and magazines, Noctua is the most acclaimed manufacturer of premium quality quiet cooling solutions and the number one choice for silent, high performance PC builds.

Highlights:

* Manufacturers model code: NF-A8 FLX.
* RPM: 2000.
* CFM: 29.6.
* dBA: 16.1.
* Fan width: 80mm.
* Fan depth: 25mm.
* Bearing type: SSO2 (Self Stabilising Oil).
* Connector: 3Pin.
* Warranty: 6 years.

Do you want to know more? Check out Noctuas product introduction page, detailed specifications, infosheet & product FAQ.
