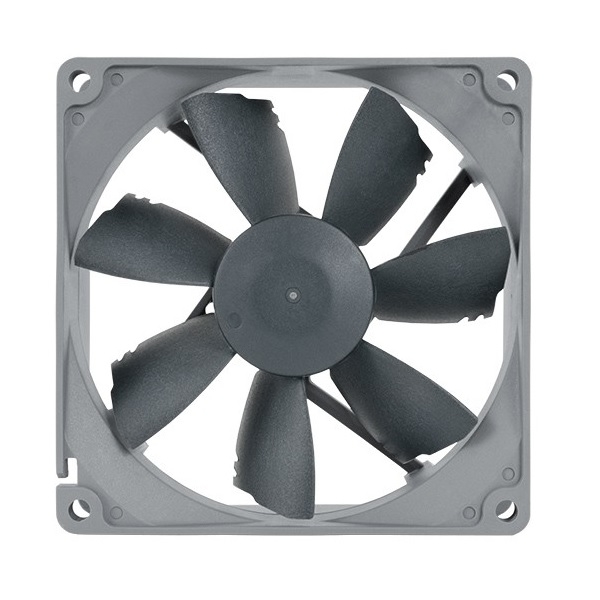

Noctua 92mm Nf-b9 Redux Edition Pwm Fan Nf-b9-redux-1600-pwm

$26.00
SKU: 172896
MPN: NF-B9-REDUX-1600-PWM Link
Manufacturer: http://www.noctua.at/
Brand: Noctua
Availability:

Preorder 2-3 weeks
Fright Estimate
Add to Compare

The classic NF-B9 is a long-standing favourite among enthusiast users around the world and helped to found Noctua’s reputation as a top-tier manufacturer of premium quality quiet cooling components. The new reduxedition reissues this award-winning model in a streamlined, accessibly priced package that has been reduced to the essential core: the NF-B9 premium fan. Its industry grade SSO-Bearing, over 150.000 hours MTBF rating and full 6 years manufacturer’s warranty make the NF-B9 redux a proven premium choice that provides trusted Noctua quality at an attractive price point. The 1600rpm PWM version features Noctua’s proprietary NE-FD1 PWM IC for automatic speed control, which allows to strike a perfect balance between high cooling capacity and low noise operation in each given situation.

Details
　
Proven NF-B9 design

Proven NF-B9 design

Tens of thousands of quiet cooling enthusiasts around the globe swear by Noctua's classic NF-B9. Thanks to its impressive quietness, excellent performance and impeccable quality, the NF-B9 has become an established reference for quiet 92mm fans.
　
Streamlined redux edition

Streamlined redux edition

The redux product line reissues some of Noctua's most popular, award-winning models by presenting them in streamlined, accessibly priced packages. All redux edition products are industry proven, time-tested models that helped to found Noctua's reputation as a first-tier supplier of premium grade low noise cooling equipment.
　
Vortex-Control Notches

Vortex-Control Notches

Noctua's signature Vortex-Control Notches split up trailing edge vortices and thus spread the fan's noise emission over a wider range of frequencies. This measure makes the fan sound more pleasant to the human ear.
　
Bevelled Blade Tips

Bevelled Blade Tips

Reducing critical rotor stator interaction, Bevelled Blade Tips permit to combine extended leading edges and a higher blade surface area with quieter operation and thus form a cornerstone of the fan's outstanding efficiency.
　
Custom-designed PWM IC with SCD

Custom-designed PWM IC with SCD

Supporting fully automatic speed control via PWM, the fan uses Noctua's custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at lower speeds.
　
SSO-Bearing

SSO-Bearing

Combining the proven concept of hydrodynamic bearings with an additional magnet that supports the self-stabilisation of the rotor axis, Noctua's time-tested SSO-Bearing technology has become synonymous with supremely quiet operation and exceptional long-term stability.
　
Optional accessories

Optional accessories

Users can choose from Noctua's wide range of optional accessories such as anti-vibration mounts, Low-Noise-Adaptors, y-cables, 3:4 pin adaptors or extension cables to upgrade redux edition fans according to their individual needs.
　
6-year manufacturer’s warranty

6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the redux edition models feature an MTBF rating of more than 150.000 hours and come with a full 6-year manufacturer’s warranty.
Brand
Noctua
Model
NF-B9 redux-1600 PWM

Details

Fan Size
92x92x25 mm
Bearing Type
SSO
RPM
1600 RPM
Air Flow
64,3 m³/h
Noise Level
17,6 dB(A)
Power Connector
4 Pin

Features

Features
Max. Input Power: 0,96 W

Max. Input Current: 0,08 A

Voltage: 12 V

MTBF: > 150.000 h

Scope of Delivery:
Fan
4 Fan Screws

　

Manufacturer: Noctua. Designed in Austria, Noctuas premium cooling solutions are internationally renowned for their low noise, exceptional performance and outstanding quality. Having received more than one thousand awards and recommendations from leading hardware websites and magazines, Noctua is the most acclaimed manufacturer of premium quality quiet cooling solutions and the number one choice for silent, high performance PC builds.

The 92mm NF-B9 PWM Redux Edition fan features Noctuas novel, custom designed PWM IC for fully automatic control and ultra low power consumption. Equipped with Noctuas signature SSO bearing and topped off with a 6 years manufacturers warranty, the NF-B9 PWM Redux Edition is a premium choice for the highest demands.

Highlights:

* Manufacturers model code: NF-B9 PWM Redux Edition.
* Market orientation: Quiet PC, cooling enthusiasts & overclockers.
* RPM: 1600.
* CFM: 37.
* dBA: 17.6.
* Fan width: 92mm.
* Fan depth: 25mm.
* Bearing type: SSO (Self Stabilising Oil).
* Connector: 4Pin PWM.
* Warranty: 6 years.

Do you want to know more? Check out Noctuas product introduction page, detailed specifications, infosheet & product FAQ.
