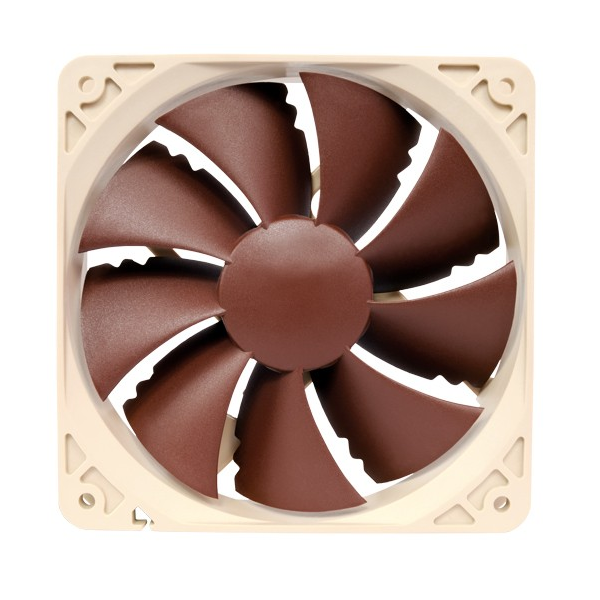

main product photo

Noctua 120mm Nf-p12 Pwm Fan Nf-p12-pwm

Special Price $42.00 Regular Price $48.00
SKU: 121053
MPN: NF-P12-PWM Link
Manufacturer: http://www.noctua.com/
Brand: Noctua
Availability:

In stock

Fright Estimate
Add to Compare

Specifically conceived for pressure demanding applications such as CPU cooling, the classic NF-P12 120mm fan helped to found Noctua’s reputation as a top-tier manufacturer of premium quality quiet cooling components and still impresses users with its exquisite quietness and superb performance. The new PWM version features Noctua’s novel, custom designed PWM IC for fully automatic control and ultra-low power consumption. Equipped with Noctua’s signature SSO-Bearing and topped off with a 6 years manufacturer’s warranty, the NF-P12 PWM is a proven premium choice for the highest demands.

Details
　
Proven NF-P12 Design

Proven NF-P12 Design

Tens of thousands of quiet cooling enthusiasts swear by Noctua's classic NF-P12. Its impressive quietness, excellent performance and impeccable, time-tested quality made the P12 a default choice for 120mm quiet cooling.
　
Pressure-optimized Nine-Blade Design

Pressure-optimized Nine-Blade Design

Specifically developed for high-impedance applications such as CPU coolers, water-cooling radiators or cases with tight fan grills, the NF-P12 PWM provides outstanding pressure and airflow performance.
　
Vortex-Control Notches

Vortex-Control Notches

Noctua's signature Vortex-Control Notches split up trailing edge vortices and thus spread the fan's noise emission over a wider range of frequencies. This measure makes the NF-P12 PWM sound more pleasant to the human ear.
　
Custom-designed PWM IC with SCD

Custom-designed PWM IC with SCD

Supporting fully automatic PWM speed control, the NF-F12 uses Noctua's novel, custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at lower speeds.
　
Ultra-Low Power Consumption

Ultra-Low Power Consumption

The NF-P12 PWM draws only 0.6W, which is more than 50% less than many other PWM fans. This doesn't only make it eco-friendly but also cuts down the electricity bill: Compared to a typical 2W fan, this allows you to save about half the price of the NF-P12 after 5 years of continuous use.
　
Low-Noise Adaptor

Low-Noise Adaptor

The NF-P12 PWM is supplied with a (L.N.A.) that reduces the maximum fan speed from 1300 to 900rpm. The L.N.A. can be used either to run the fan at a fixed speed of 900rpm or to cap the maximum speed when using automatic PWM control.
　
Extensive cabling options

Extensive cabling options

The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and a 4-pin y-cable allows the connection of a second NF-P12 fan to the same PWM fan header for automatic control.
　
SSO-Bearing

SSO-Bearing

Combining the proven concept of hydrodynamic bearing with an additional magnet that supports the self-stabilisation of the rotor axis, Noctua's time-tested technology has become synonymous with supremely quiet operation and exceptional long-term stability.
　
6-year manufacturer’s warranty

6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-P12 PWM features an MTBF rating of more than 150.000 hours and comes with a full 6-year manufacturer's warranty.
FAN Specification
　
Size
120x120x25 mm
Connector
4-Pin PWM
Bearing
SSO-Bearing
Blade Geometry
Presure-optimized Nine Blade Design with Vortex-Control Notches
Rotational Speed (+/- 10%)
1300 RPM
Rotational Speed with L.N.A. (+/- 10%)
900 RPM
Min. Rotational Speed (PWM, +/-20%)
300 RPM
Airflow
92,3 m³/h
Airflow with L.N.A.
63,4 m³/h
Acoustical Noise
19,8 dB(A)
Acoustical Noise with L.N.A.
12,6 dB(A)
Static Pressure
1,68 mm H₂O
Static Pressure with L.N.A.
1,21 mm H₂O
Max. Input Power
0,6 W
Max. Input Current
0,05 A
Voltage
12 V
MTBF
> 150.000 h
Scope of Delivery
  • Low-Noise Adapter (L.N.A.)
  • 4-Pin Y-Cable
  • 30cm Extension Cable
  • 4 Vibration-Compensators
  • 4 Fan Screws
Warranty
6 years
Manufacturer: Noctua. Designed in Austria, Noctuas premium cooling solutions are internationally renowned for their low noise, exceptional performance and outstanding quality. Having received more than one thousand awards and recommendations from leading hardware websites and magazines, Noctua is the most acclaimed manufacturer of premium quality quiet cooling solutions and the number one choice for silent, high performance PC builds.

Specifically conceived for pressure demanding applications such as CPU cooling, the 120mm NF-P12 PWM fan features Noctuas novel, custom designed PWM IC for fully automatic control and ultra low power consumption. Equipped with Noctuas signature SSO bearing and topped off with a 6 years manufacturers warranty, the NF-P12 PWM is a premium choice for the highest demands.

Highlights:

* Manufacturers model code: NF-P12 PWM.
* Market orientation: Quiet PC, cooling enthusiasts & overclockers.
* RPM: 1300.
* CFM: 54.
* dBA: 19.8.
* Fan width: 120mm.
* Fan depth: 25mm.
* Bearing type: SSO (Self Stabilising Oil).
* Connector: 4Pin PWM.
* Warranty: 6 years.

Do you want to know more? Check out Noctuas product introduction page, detailed specifications, infosheet & product FAQ.
