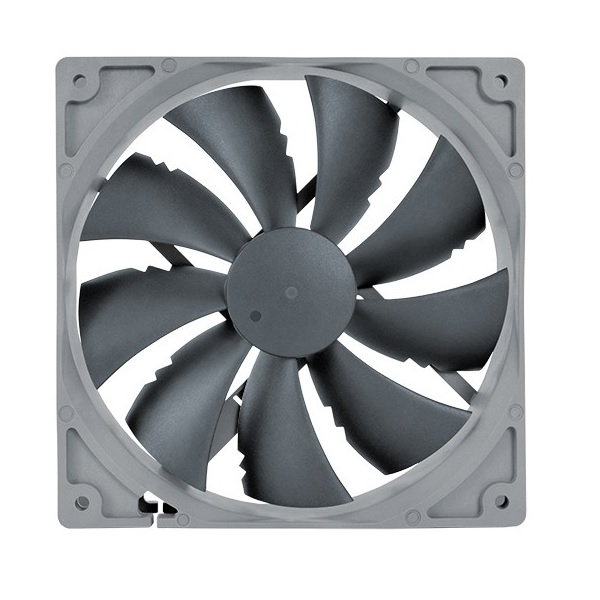

main product photo

Noctua 140mm Nf-p14s Redux Edition Square Frame Pwm Fan (max 1500rpm) Nf-p14s-redux-1500-pwm

$39.00
SKU: 172904
MPN: NF-P14S-REDUX-1500-PWM Link
Manufacturer: http://www.noctua.at/
Brand: Noctua
Availability:

Preorder 2-3 weeks
Fright Estimate
Add to Compare

Now available in a square frame version called NF-P14s (s for square frame) that lends itself to use in case and radiator cooling, the classic NF-P14 is a long-standing favourite among enthusiast users around the world and helped to found Noctua’s reputation as a top-tier manufacturer of premium quality quiet cooling components. The new redux edition reissues this award-winning model in a streamlined, accessibly priced package that has been reduced to the essential core: the NF-P14 premium fan. Its industry grade SSO-Bearing bearing, over 150.000 hours MTBF rating and full 6 years manufacturer’s warranty make the NF-P14 redux a proven premium choice that provides trusted Noctua quality at an attractive price point. The performance-oriented top speed of the 1500rpm PWM version is ideal for high efficiency case, radiator and CPU cooling as well as other applications that require both extended performance headroom and PWM for automatic speed control.

Details
　
Proven NF-P14 design

Proven NF-P14 design

Tens of thousands of quiet cooling enthusiasts around the globe swear by Noctua's classic NF-P14. Thanks to its impressive quietness, excellent performance and impeccable quality, the NF-P14 has become an established reference for quiet 140mm fans.
　
Streamlined redux edition

Streamlined redux edition

The redux product line reissues some of Noctua's most popular, award-winning models by presenting them in streamlined, accessibly priced packages. All redux edition products are industry proven, time-tested models that helped to found Noctua's reputation as a first-tier supplier of premium grade low noise cooling equipment.
　
Square 140mm frame

Square 140mm frame

The square 140mm frame of the NF-P14s features standard 140mm mounting holes (124.5mm spacing), which makes it a premium grade replacement for common 140mm case fans and perfect for use on 140mm water cooling radiators, where its square shape will ensure full coverage and best pressure performance.
　
Pressure-optimized Nine-Blade Design

Pressure-optimized Nine-Blade Design

Specifically developed for high-impedance applications such as CPU coolers, water-cooling radiators or cases with tight fan grills, the NF-P14's nine-blade impeller provides outstanding pressure and airflow performance.
　
Vortex-Control Notches

Vortex-Control Notches

Noctua's signature Vortex-Control Notches split up trailing edge vortices and thus spread the fan's noise emission over a wider range of frequencies. This measure makes the fan sound more pleasant to the human ear.
　
Custom-designed PWM IC with SCD

Custom-designed PWM IC with SCD

Supporting fully automatic speed control via PWM, the fan uses Noctua's custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at lower speeds.
　
SSO-Bearing

SSO-Bearing

Combining the proven concept of hydrodynamic bearings with an additional magnet that supports the self-stabilisation of the rotor axis, Noctua's time-tested SSO-Bearing technology has become synonymous with supremely quiet operation and exceptional long-term stability.
　
Optional accessories

Optional accessories

Users can choose from Noctua's wide range of optional accessories such as anti-vibration mounts, Low-Noise-Adaptors, y-cables, 3:4 pin adaptors or extension cables to upgrade redux edition fans according to their individual needs.
　
6-year manufacturer’s warranty

6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the redux edition models feature an MTBF rating of more than 150.000 hours and come with a full 6-year manufacturer’s warranty.
FAN Specification
　
Size
140x140x25 mm
Connector
4-Pin PWM
Bearing
SSO-Bearing
Rotational Speed (+/- 10%)
1500 RPM
Min. Rotational Speed (PWM, +/-20%)
450 RPM
Airflow
133,7 m³/h
Acoustical Noise
25,8 dB(A)
Static Pressure
1,91 mm H₂O
Max. Input Power
2,4 W
Max. Input Current
0,2 A
Voltage
12 V
MTBF
> 150.000 h
Scope of Delivery
  • Fan
  • 4 Fan Screws
Warranty
6 years
Manufacturer: Noctua. Designed in Austria, Noctuas premium cooling solutions are internationally renowned for their low noise, exceptional performance and outstanding quality. Having received more than one thousand awards and recommendations from leading hardware websites and magazines, Noctua is the most acclaimed manufacturer of premium quality quiet cooling solutions and the number one choice for silent, high performance PC builds.

The 140mm NF-P14S Redux Edition PWM fan features Noctuas novel, custom designed PWM IC for fully automatic control and ultra low power consumption. Equipped with Noctuas signature SSO bearing and topped off with a 6 years manufacturers warranty, the NF-P14S PWM Redux Edition is a premium choice for the highest demands.

Highlights:

* Manufacturers model code: NF-P14S PWM Redux Edition.
* Market orientation: Quiet PC, cooling enthusiasts & overclockers.
* RPM: 1500.
* CFM: 78.6.
* dBA: 25.8.
* Fan width: 140mm.
* Fan depth: 25mm.
* Bearing type: SSO (Self Stabilising Oil).
* Connector: 4Pin PWM.
* Warranty: 6 years.

Do you want to know more? Check out Noctuas product introduction page, detailed specifications, infosheet & product FAQ.
